Home >> Nissan-Datsun >> 2005 >> Murano SL, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Removal And Installation >> Components

Removal And Installation: Components

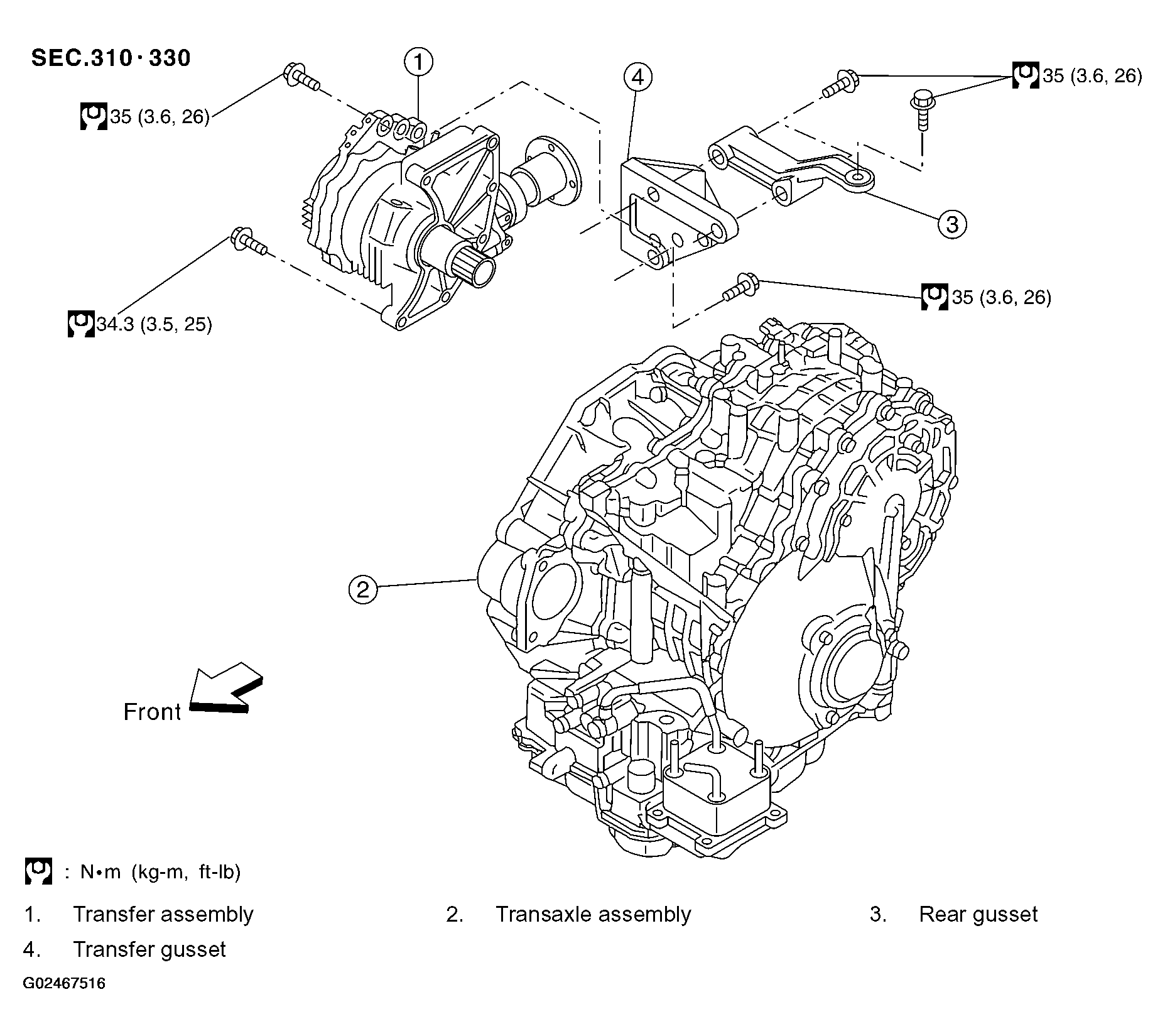

Fig 1: Removing/Installing Of Transfer Assembly Components With Torque Specifications

G02467516

Courtesy of NISSAN MOTOR CO., U.S.A.
