LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2005
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
AWD System
>>
System Diagram
>>
Components Function Description
Components Function Description

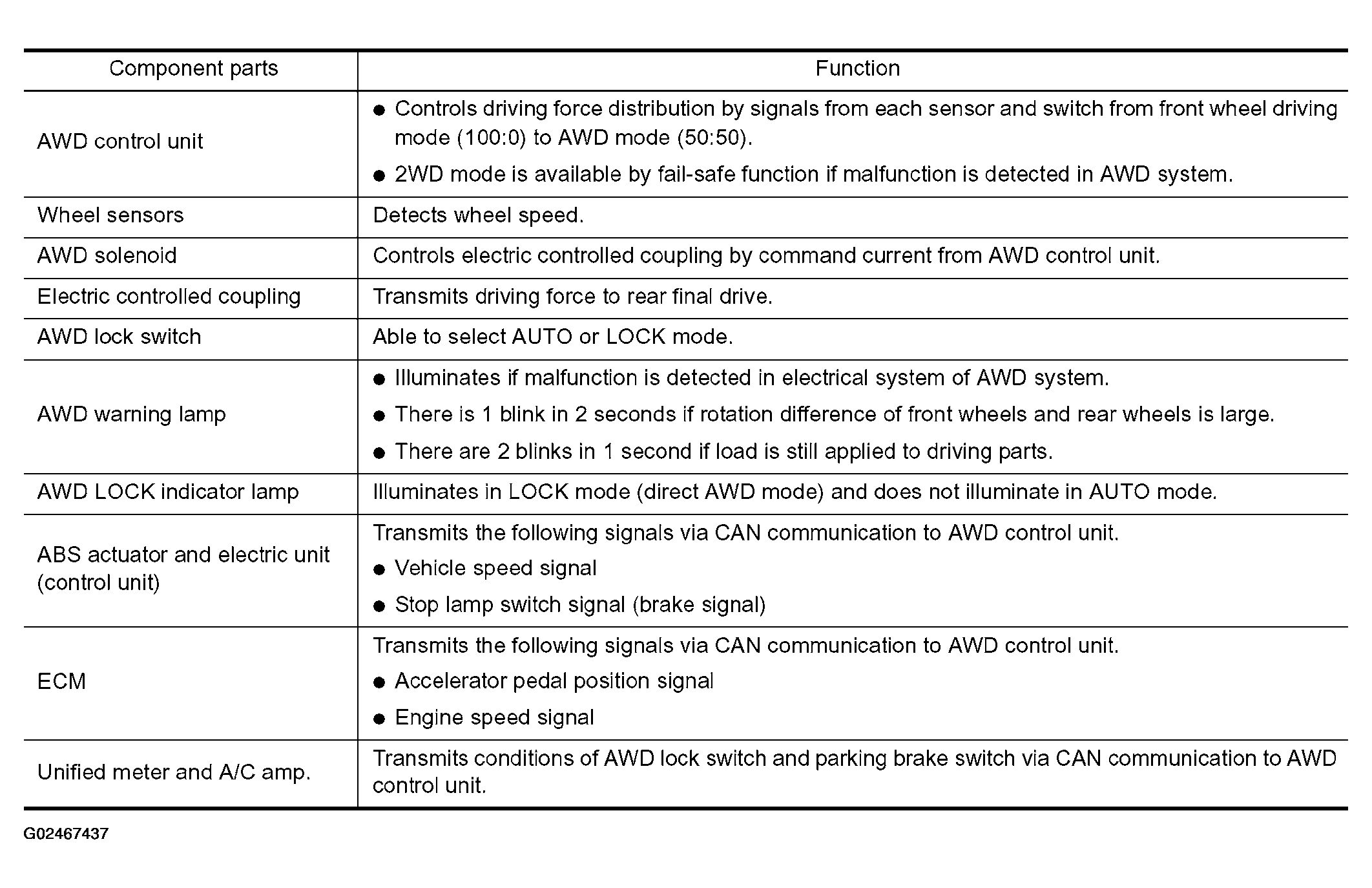

Fig 1: AWD System Components Function Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
