AWD Lock Indicator Lamp

The following is the indications of indicator lamp.

AWD LOCK INDICATOR LAMP CONDITION REFERENCE

Condition AWD LOCK indicator lamp
AUTO mode OFF
LOCK mode ON
Lamp check Turns ON for approx. 1 second when ignition switch is turned ON.

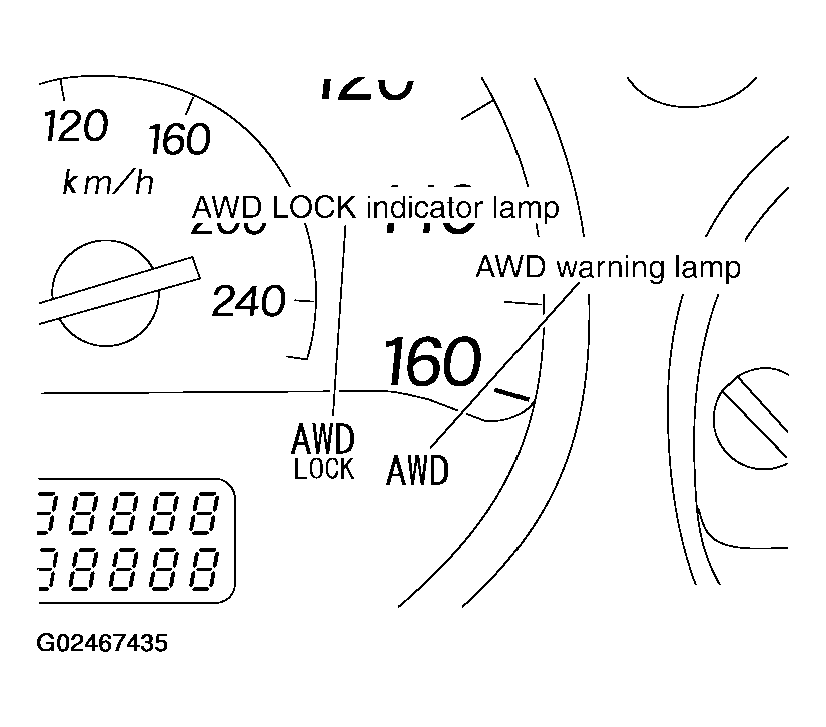

Fig 1: Identifying Lock Indicator Lamp
G02467435Courtesy of NISSAN MOTOR CO., U.S.A.
