Hydraulic Line: Components

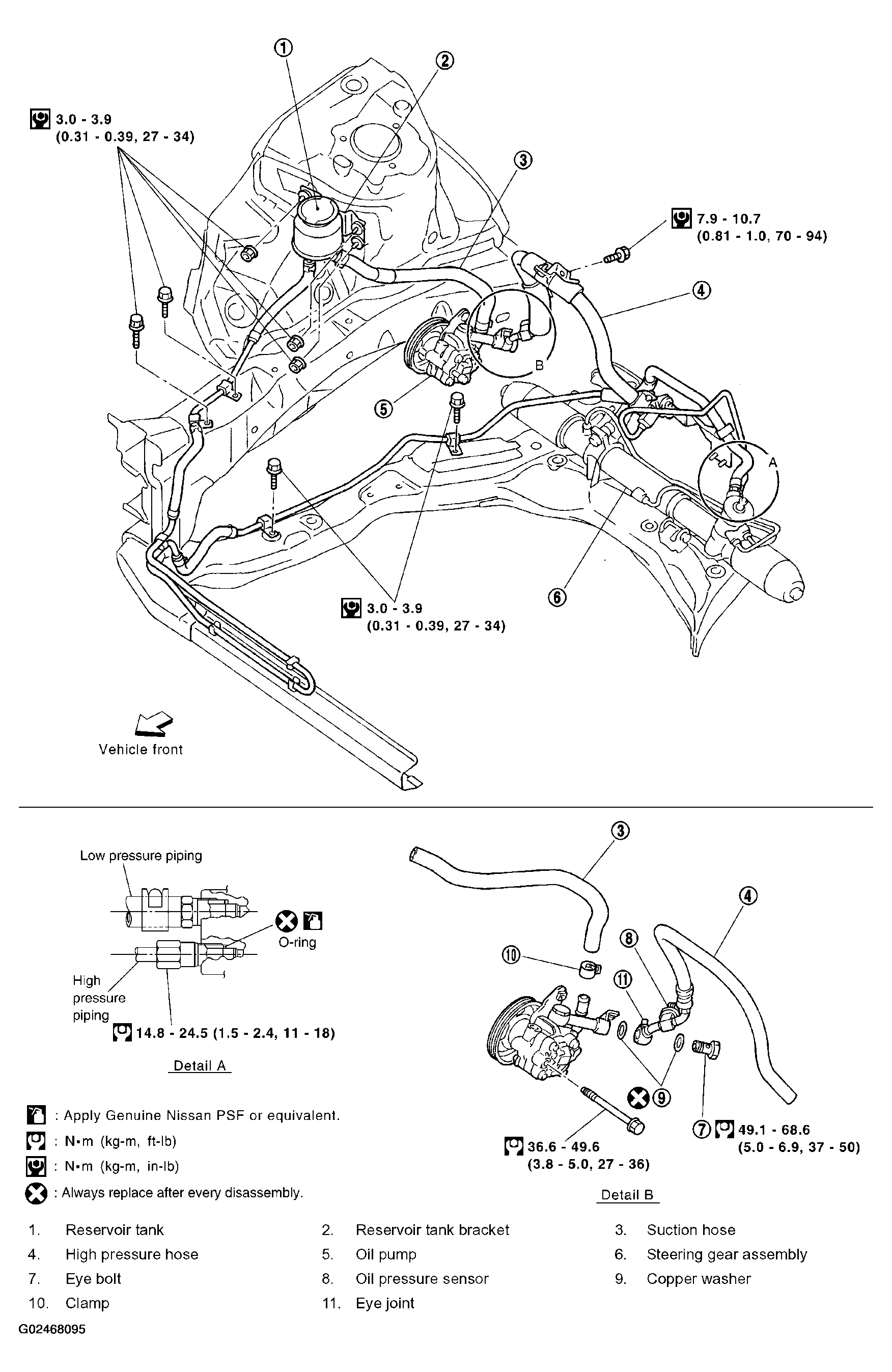

Fig 1: Removing Hydraulic Line Components (WithTorque Specifications)

G02468095

Courtesy of NISSAN MOTOR CO., U.S.A.
