CONSULT-II Reference Value in Data Monitor Mode

WARNING: This page is about a different car, the 2005 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values.

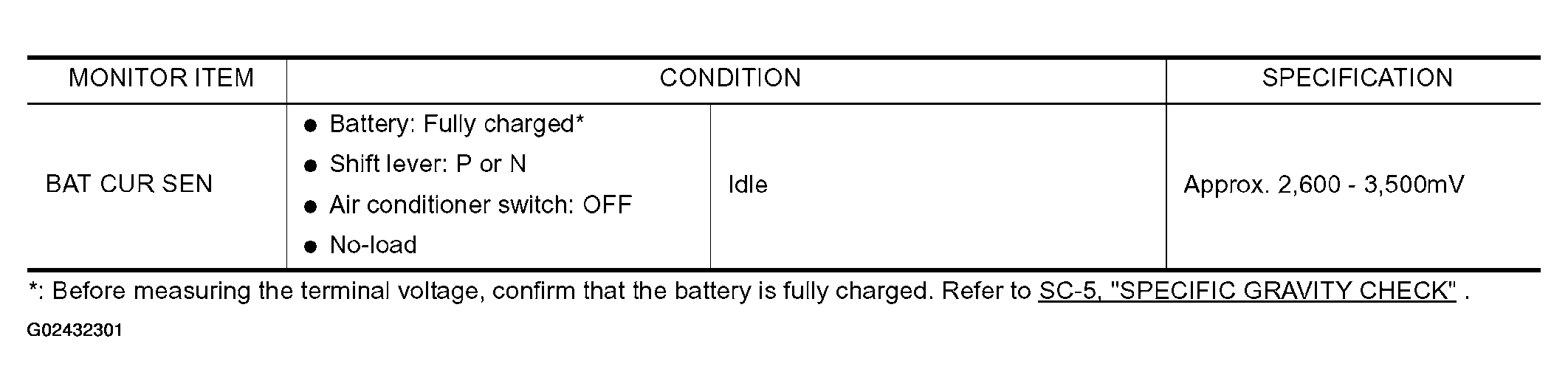

Fig 1: CONSULT-II Reference Value Chart - Battery Current Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SPECIFIC GRAVITY CHECK .
