CONSULT-II Reference Value in Data Monitor Mode.

Specification data are reference values.

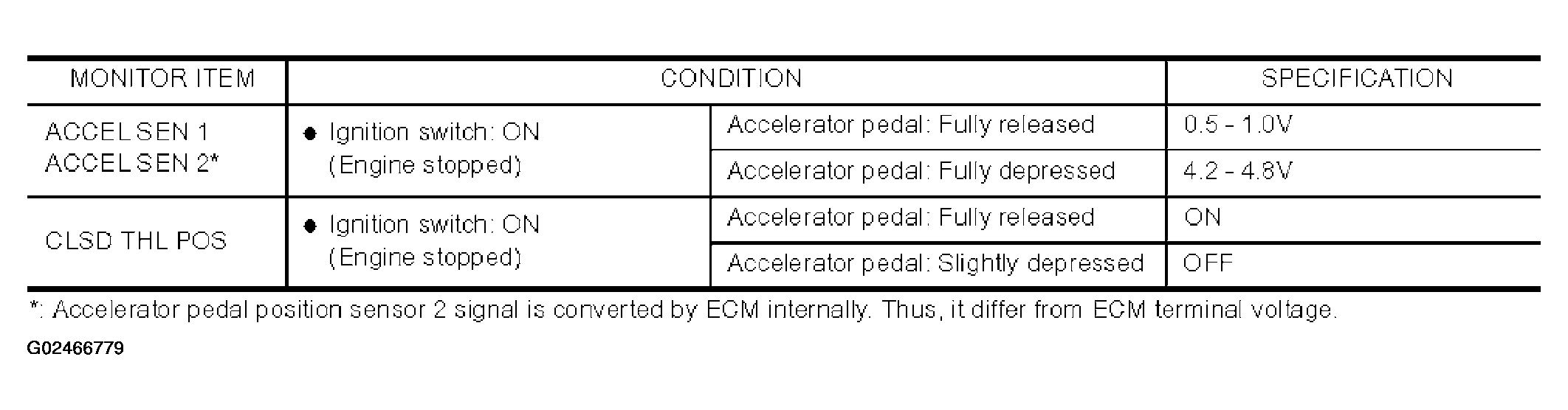

Fig 1: Data Monitor Mode Reference Values Chart

G02466779

Courtesy of NISSAN MOTOR CO., U.S.A.
