Method A

  1. Attach timing light to loop wire as shown in Fig 1.

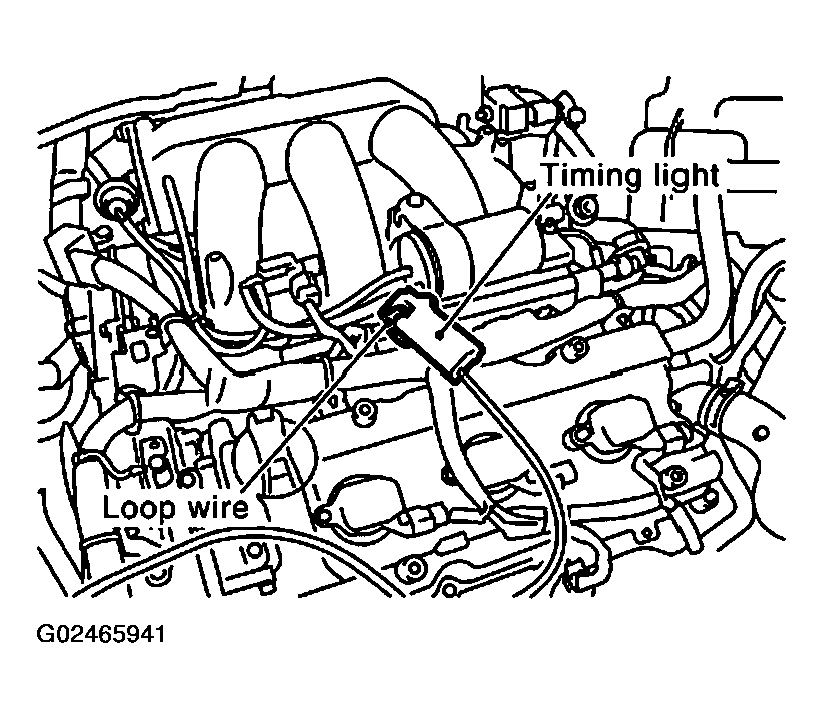

    Fig 1: Attaching Timing Light To Loop Wire
    G02465941Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

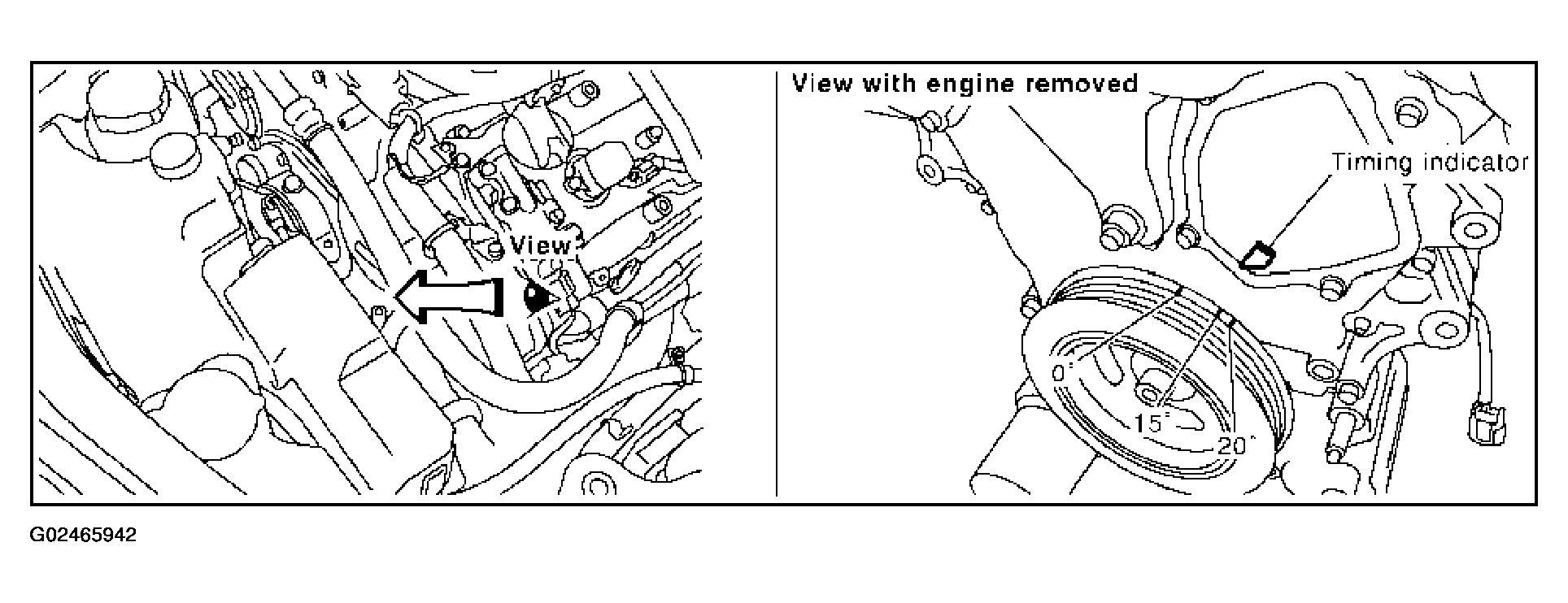

    Fig 2: Locating Ignition Timing Marks
    G02465942Courtesy of NISSAN MOTOR CO., U.S.A.
