DTC P0507: ISC System
>>
On Board Diagnosis Logic
On Board Diagnosis Logic

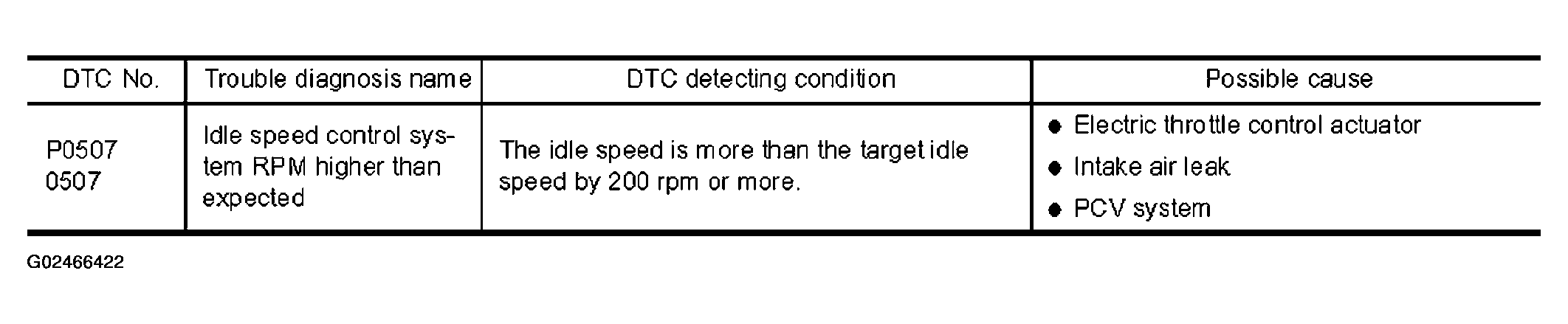

Fig 1: DTC Detecting Condition - Possible Cause Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
