DTC P0181: FTT Sensor: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

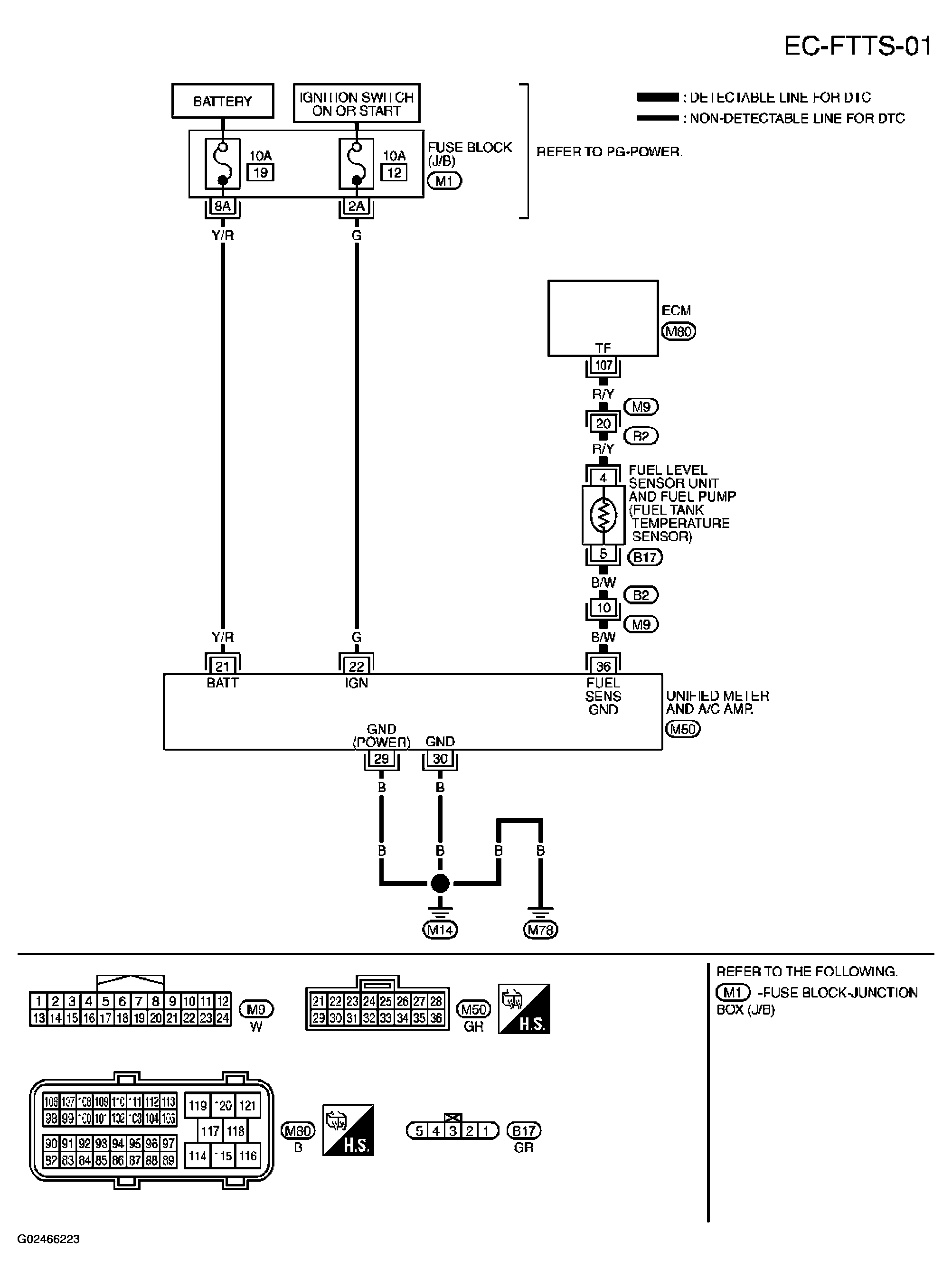

Fig 1: Wiring Diagram - (EC-FTTS-01)

G02466223

Courtesy of NISSAN MOTOR CO., U.S.A.
