DTC P0172, P0175: Fuel Injection System Function: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

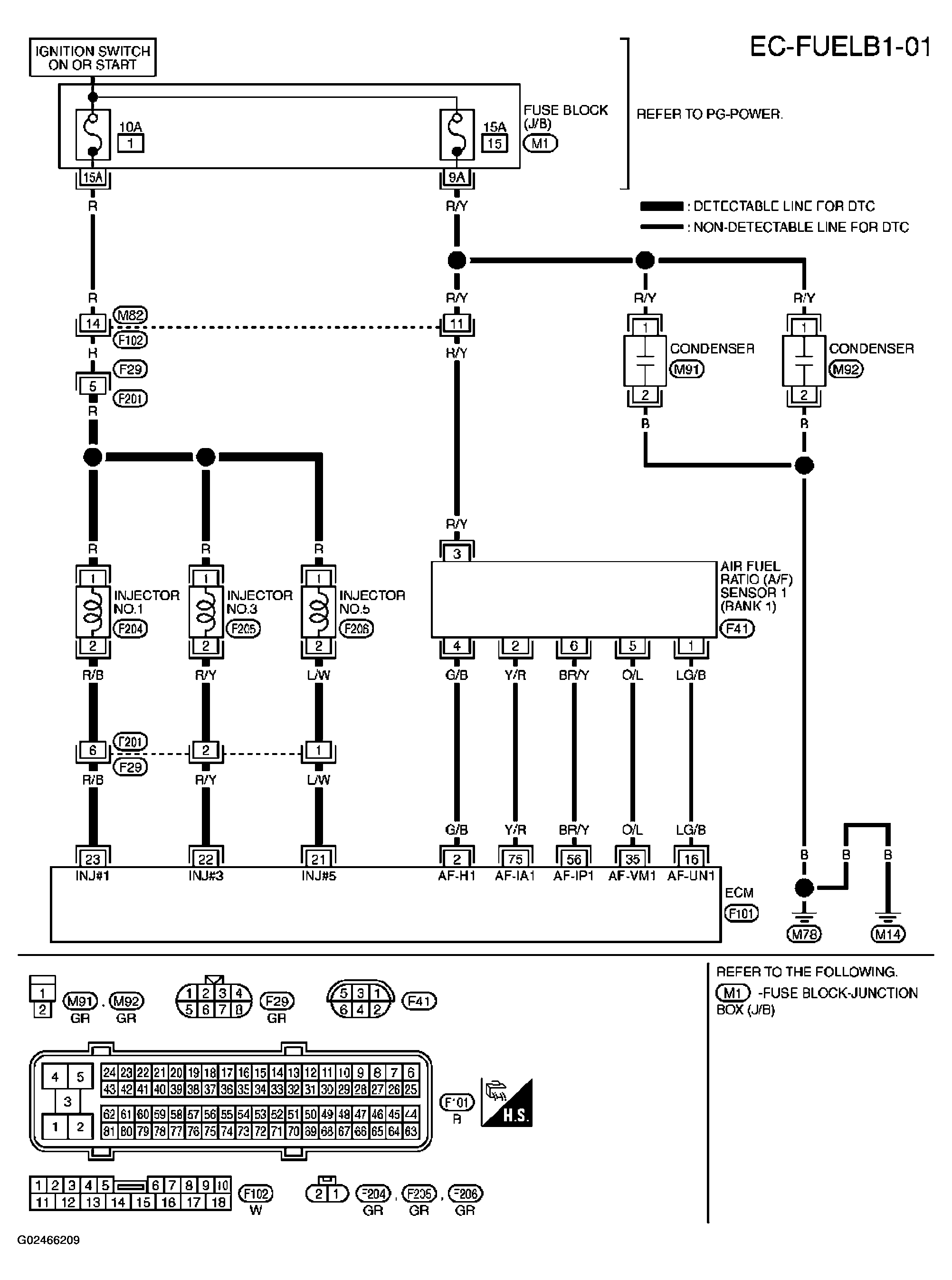

Fig 1: Wiring Diagram - (EC-FUELB1-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

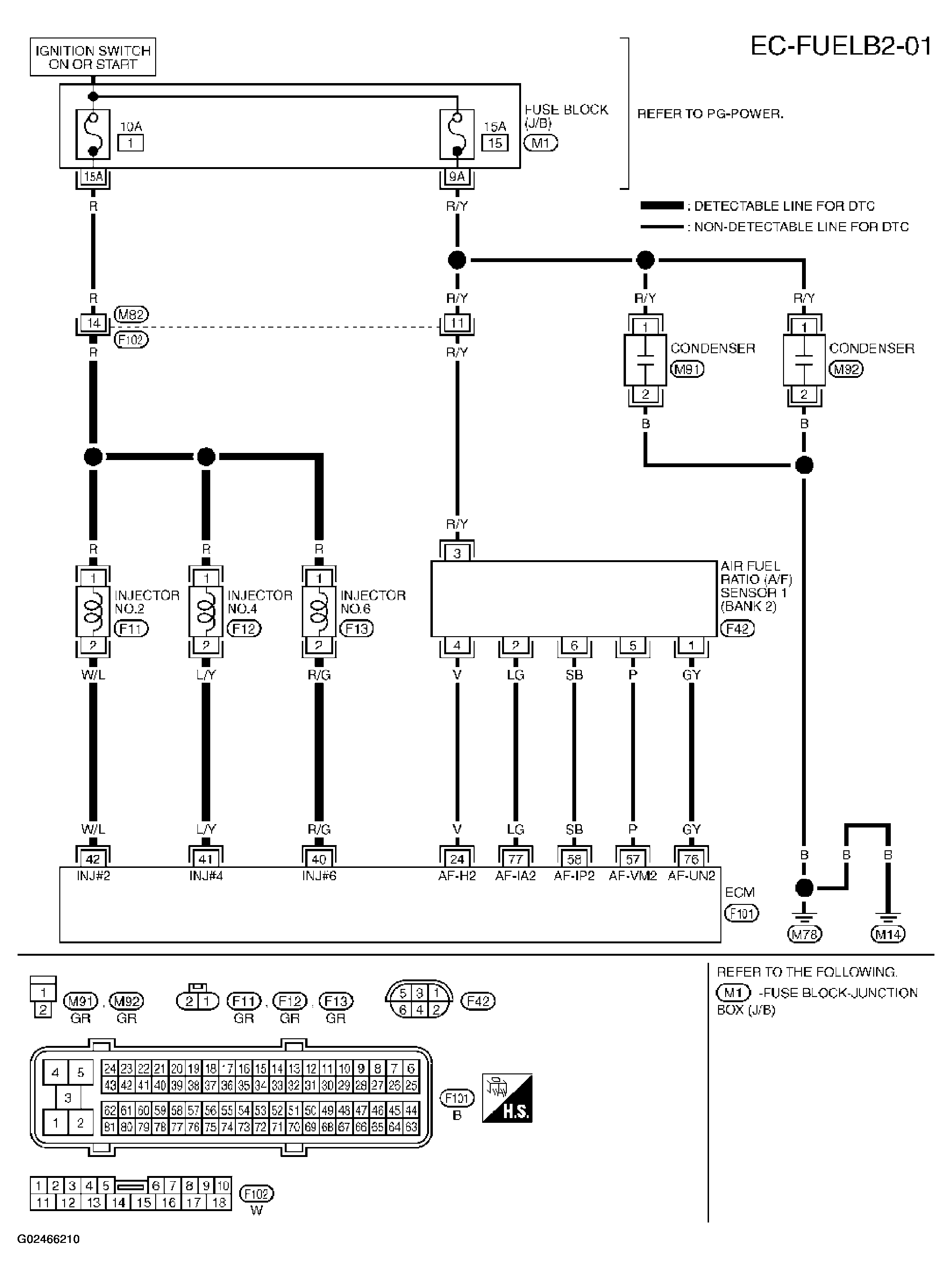

Fig 2: Wiring Diagram - (EC-FUELB2-01)

Courtesy of NISSAN MOTOR CO., U.S.A.
