Reference Value From Consult-II

CAUTION: The display shows control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited.

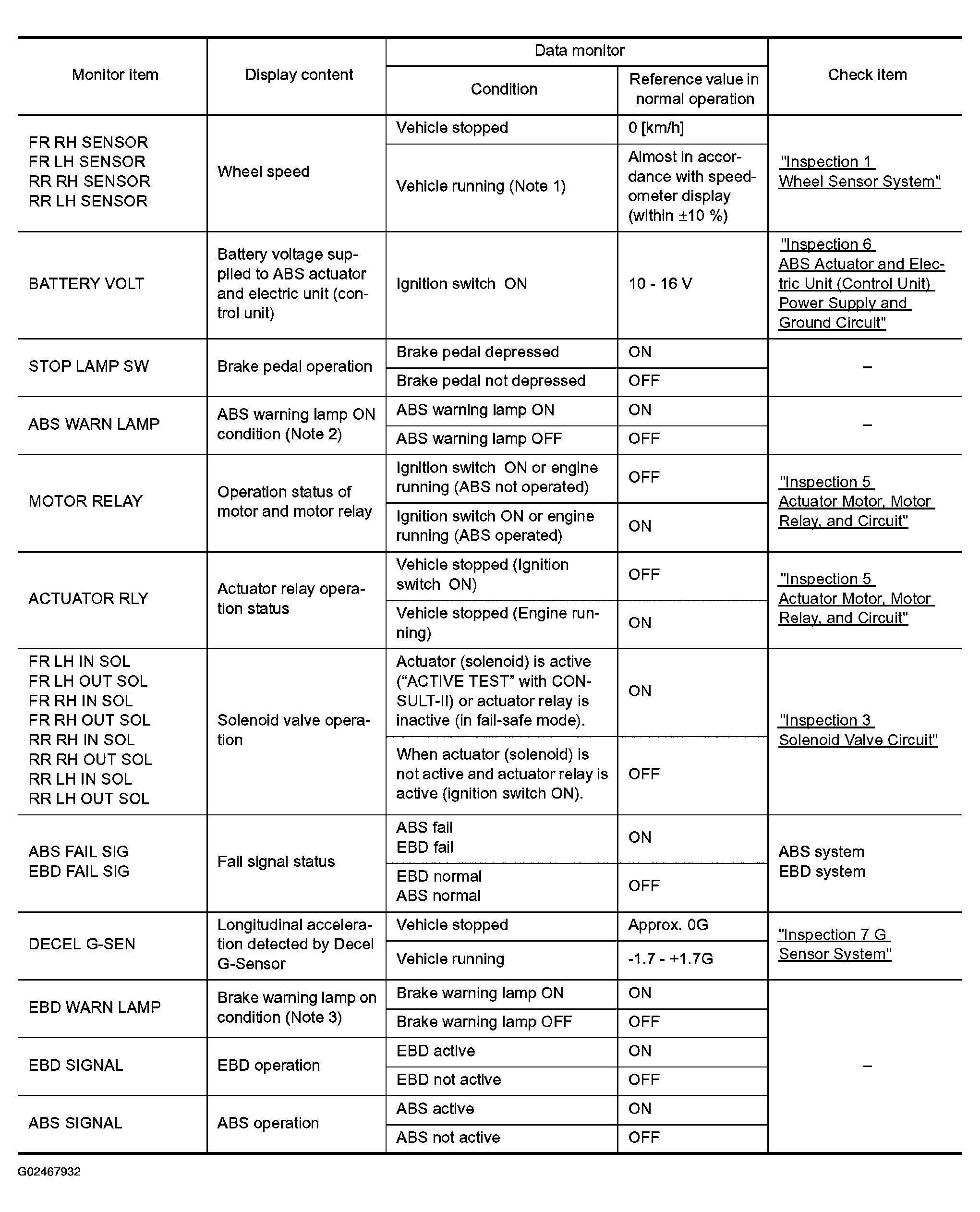

Fig 1: Brake Control Unit Input/Output Signal Standard Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Note 1: Confirm tire pressure is normal.

NOTE: Note 2: ON/OFF timing of ABS warning lamp

ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected.

OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation).

NOTE: Note 3: Serves as EBD warning lamp.
