With Consult-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
  4. Check air passage continuity and operation delay time under the following conditions.
    AIR PASSAGE CONTINUITY

    Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C
    ON Yes No
    OFF No Yes

    Operation takes less than 1 second.

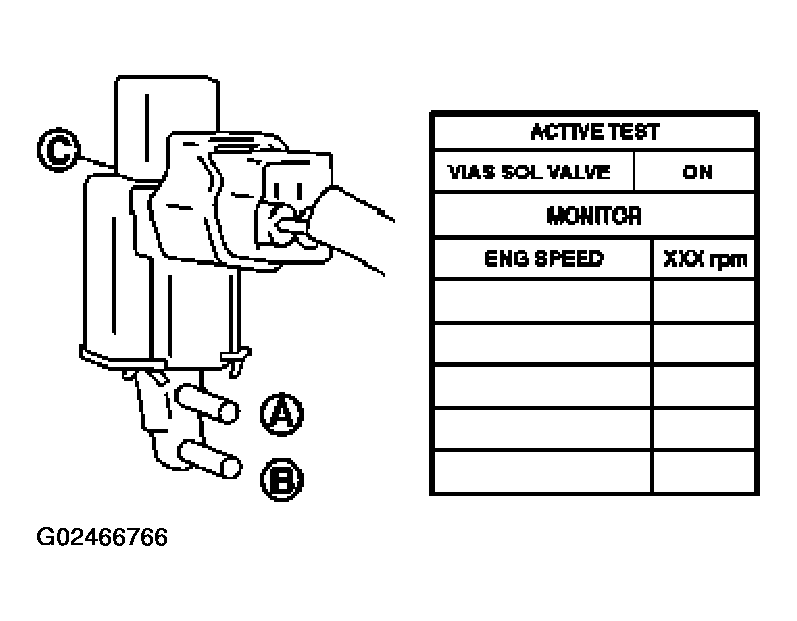

    Fig 1: Checking Air Passage Continuity & Operation Delay Time (With CONSULT-II)
    G02466766Courtesy of NISSAN MOTOR CO., U.S.A.
