Intake Valve Timing Control Solenoid Valve

Disconnect intake valve timing control solenoid valve harness connector.

Check resistance between intake valve timing control solenoid valve terminals as follows.

RESISTANCE REFERENCE

Terminals	Resistance
1 and 2	7.0 - 7.5Ω at 20°C (68°F)
1 or 2 ground	infin Ω (Continuity should not exist)

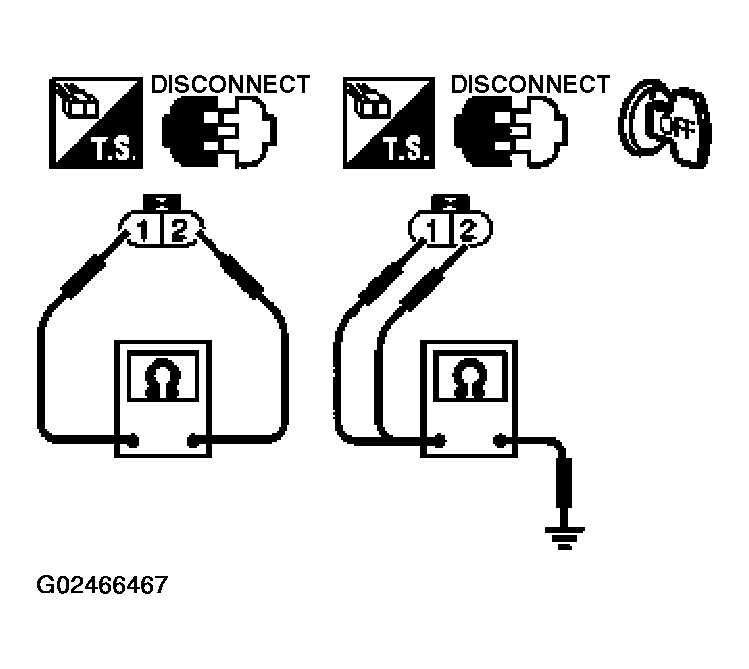

Fig 1: Checking Resistance Between Intake Valve Timing Control Solenoid Valve Terminals

G02466467

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake valve timing control solenoid valve.

If OK, go to next step.

Remove intake valve timing control solenoid valve.
Provide 12 V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger moves as shown in the figure.
CAUTION: Do not apply 12 V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve.

If NG, replace intake valve timing control solenoid valve.

NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed.
