Disassembly and Assembly: Notes

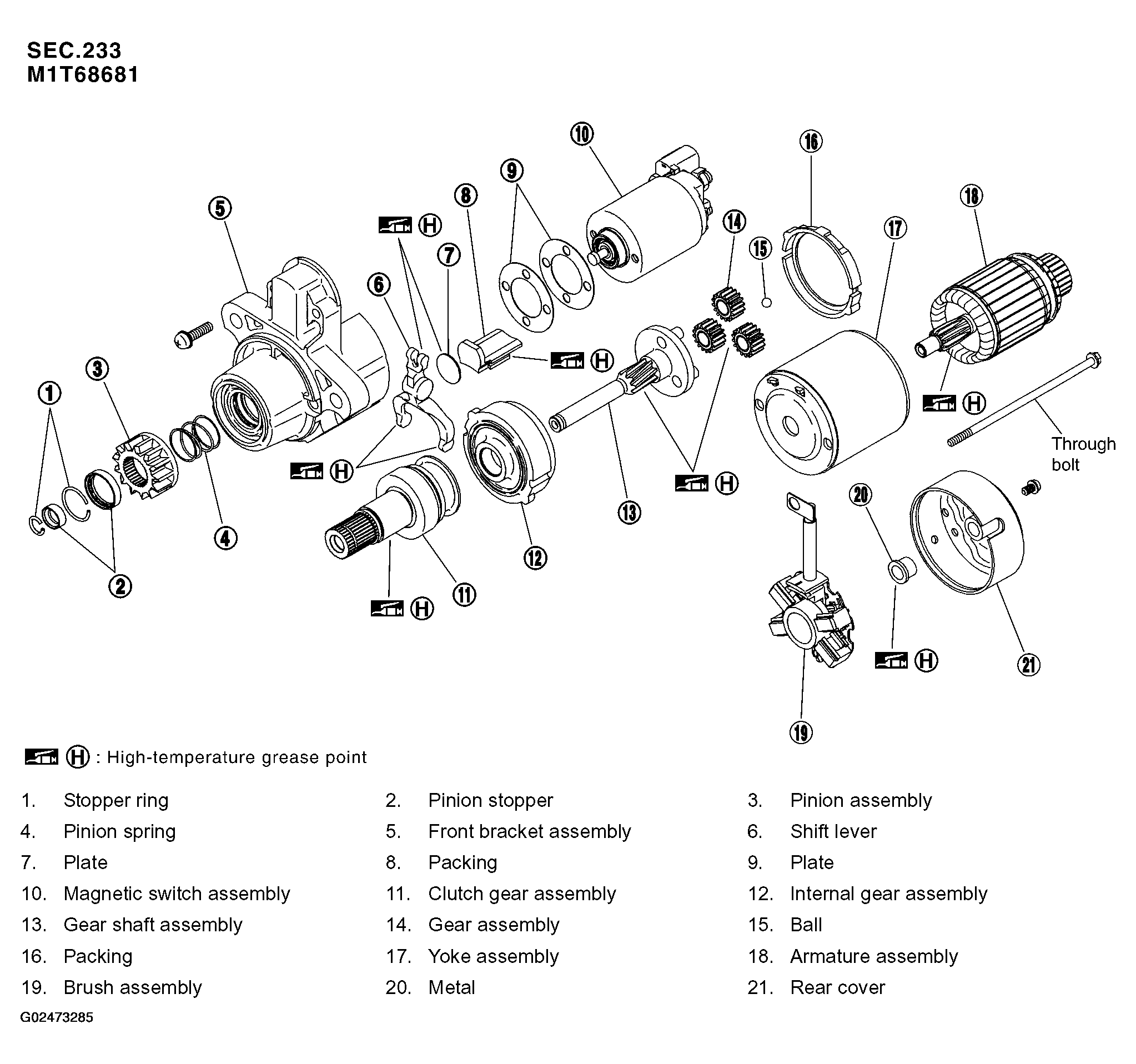

Fig 1: Exploded View Of Starter Motor

G02473285

Courtesy of NISSAN MOTOR CO., U.S.A.

Through-bolt
: 8 N.m (0.84 kg-m, 71 in-lb)
