Home >> Nissan-Datsun >> 2005 >> Murano S, AWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting & Charging System >> Service Data And Specifications (SDS) >> Alternator

Service Data And Specifications (SDS): Alternator

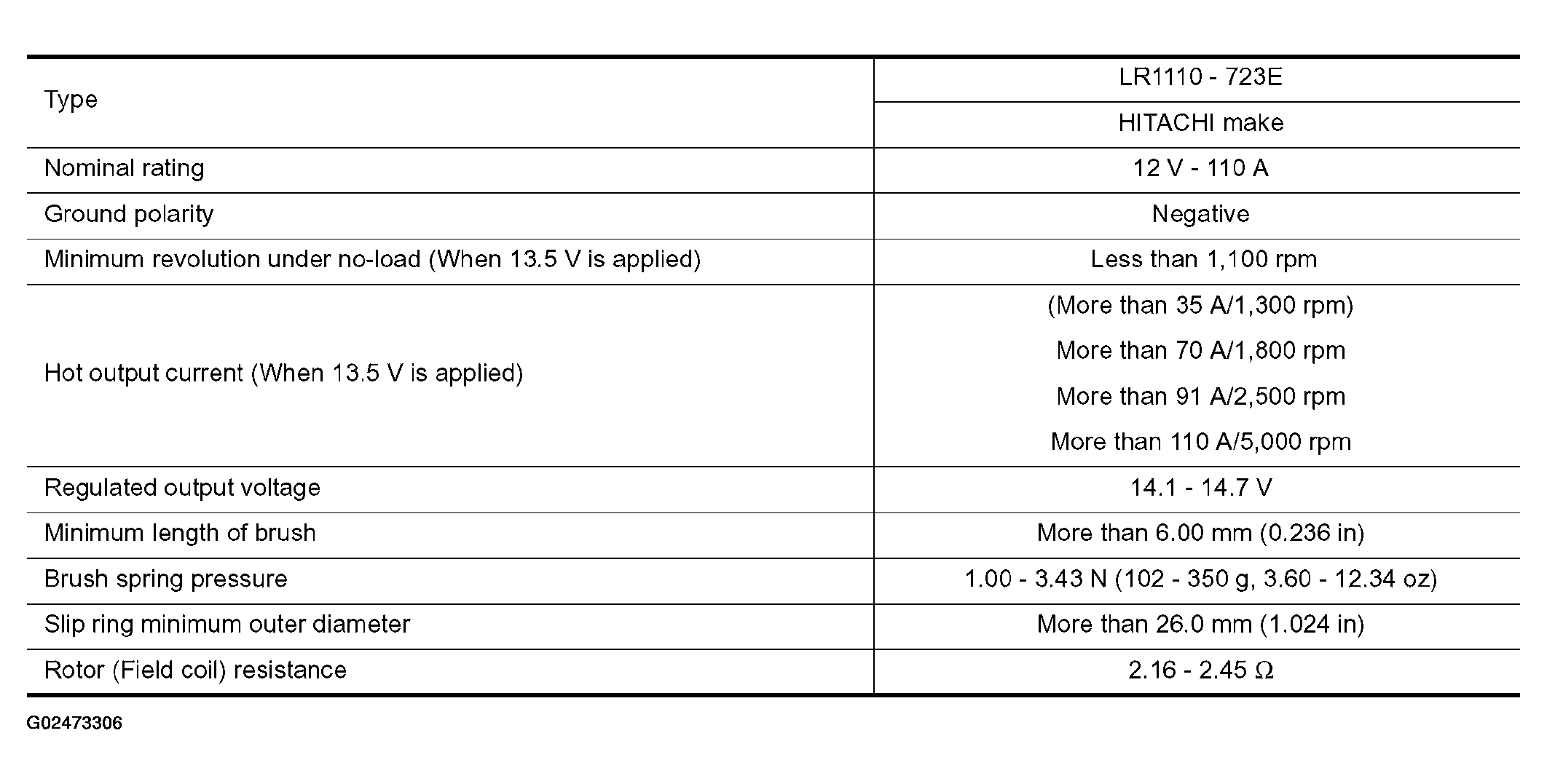

Fig 1: Alternator Specification Chart

G02473306

Courtesy of NISSAN MOTOR CO., U.S.A.
