Terminals And Reference Value For Display Control Unit
WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

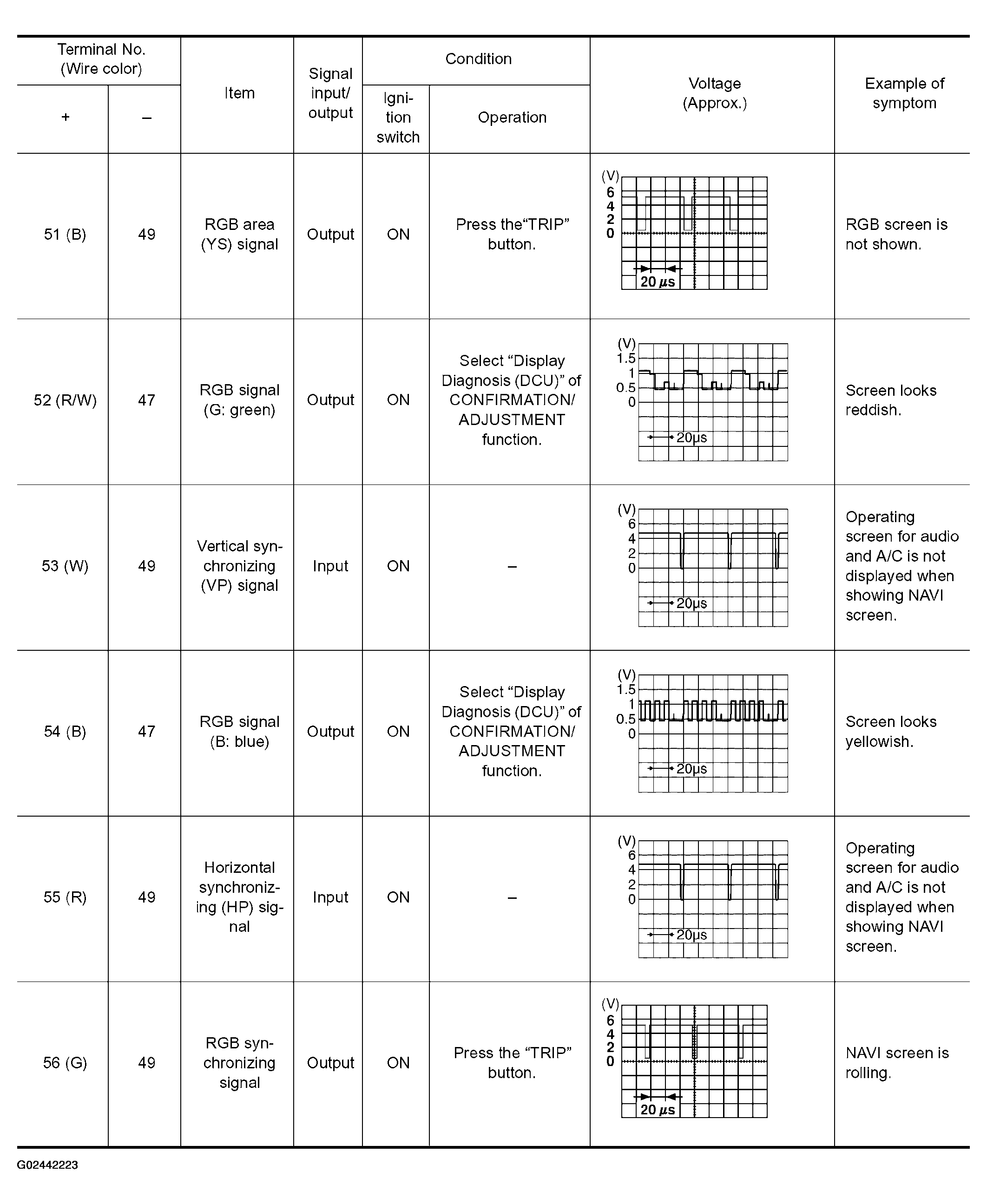

Fig 1: Control Unit Terminals & Reference Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

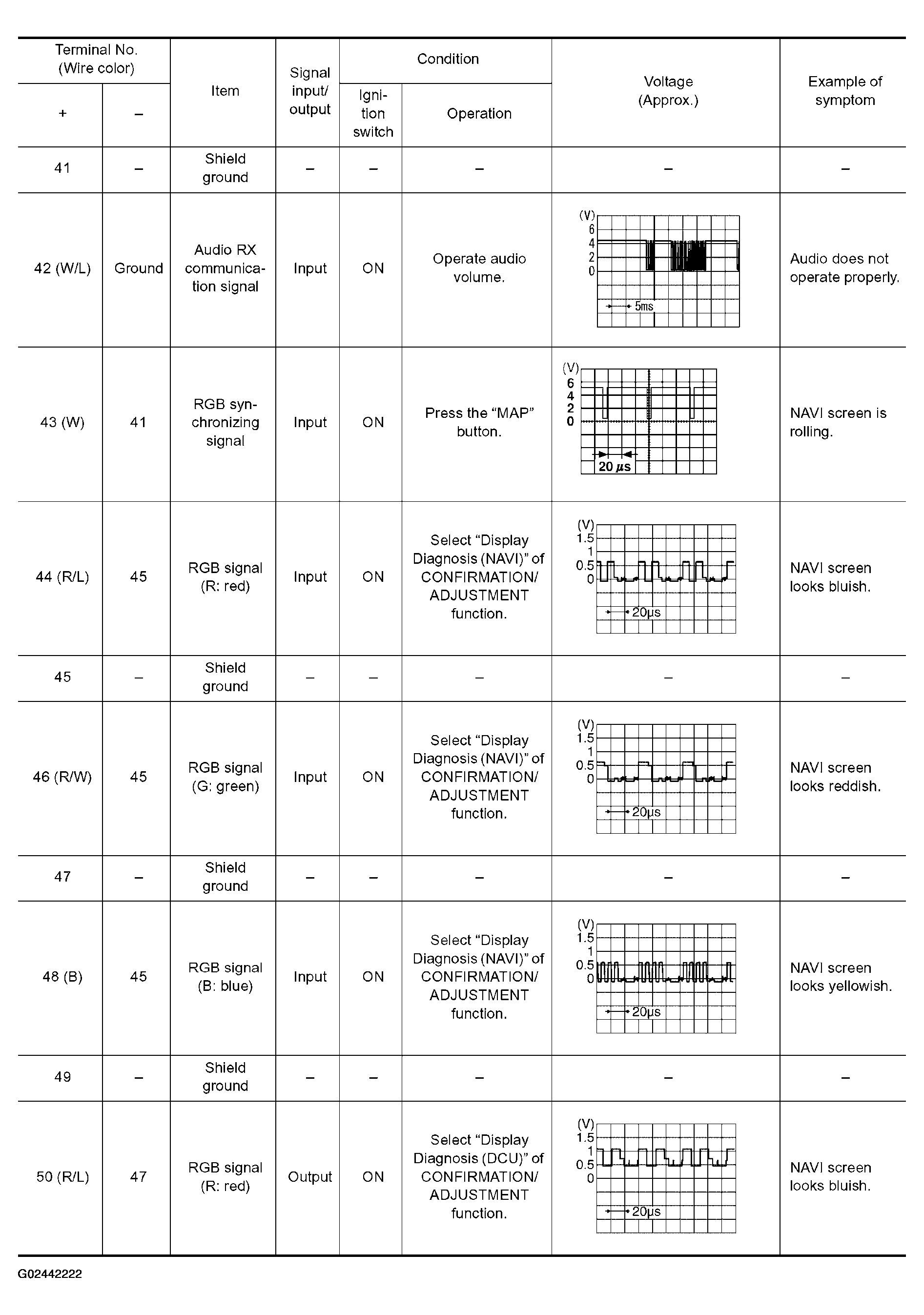

Fig 2: Control Unit Terminals & Reference Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

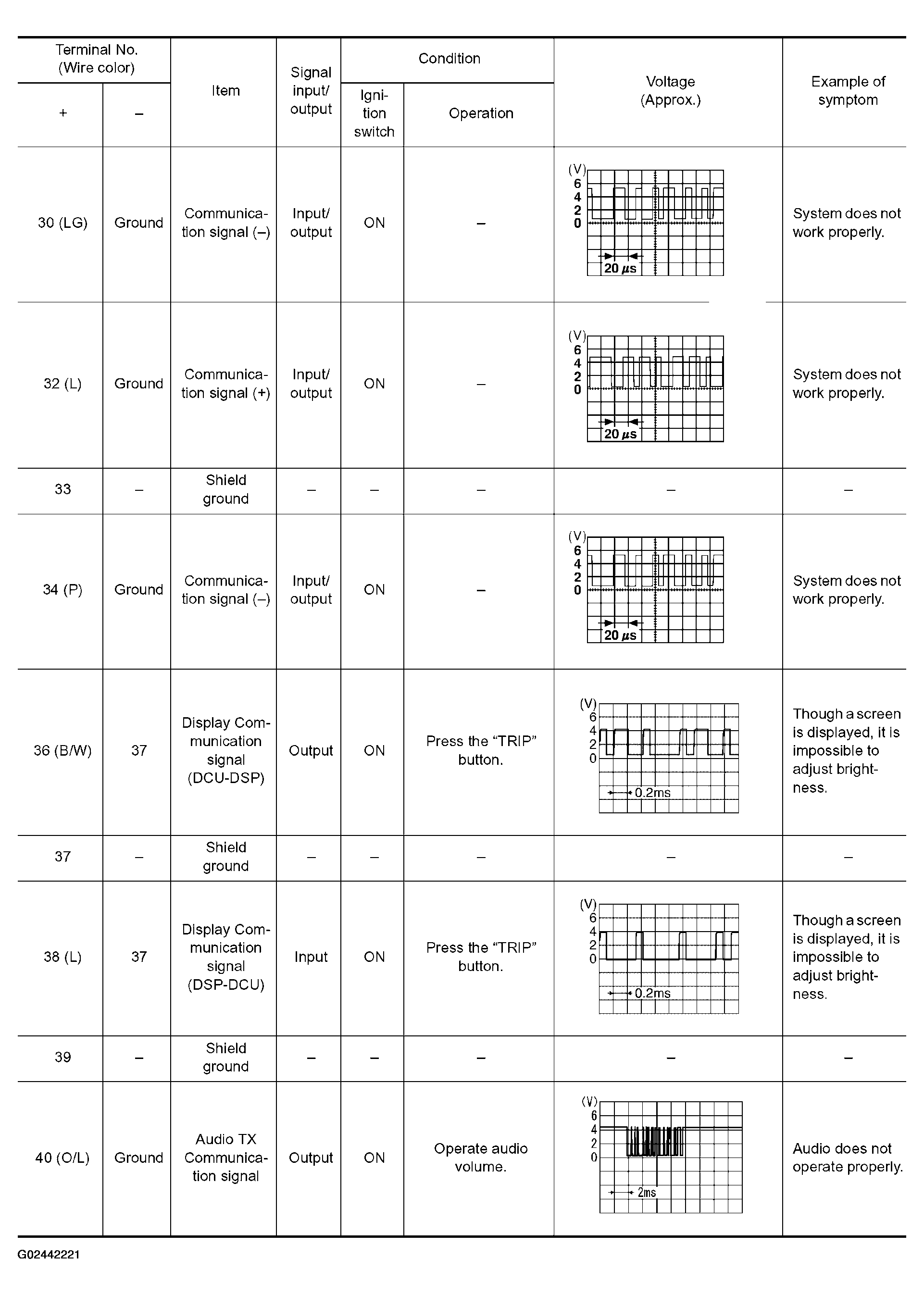

Fig 3: Control Unit Terminals & Reference Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

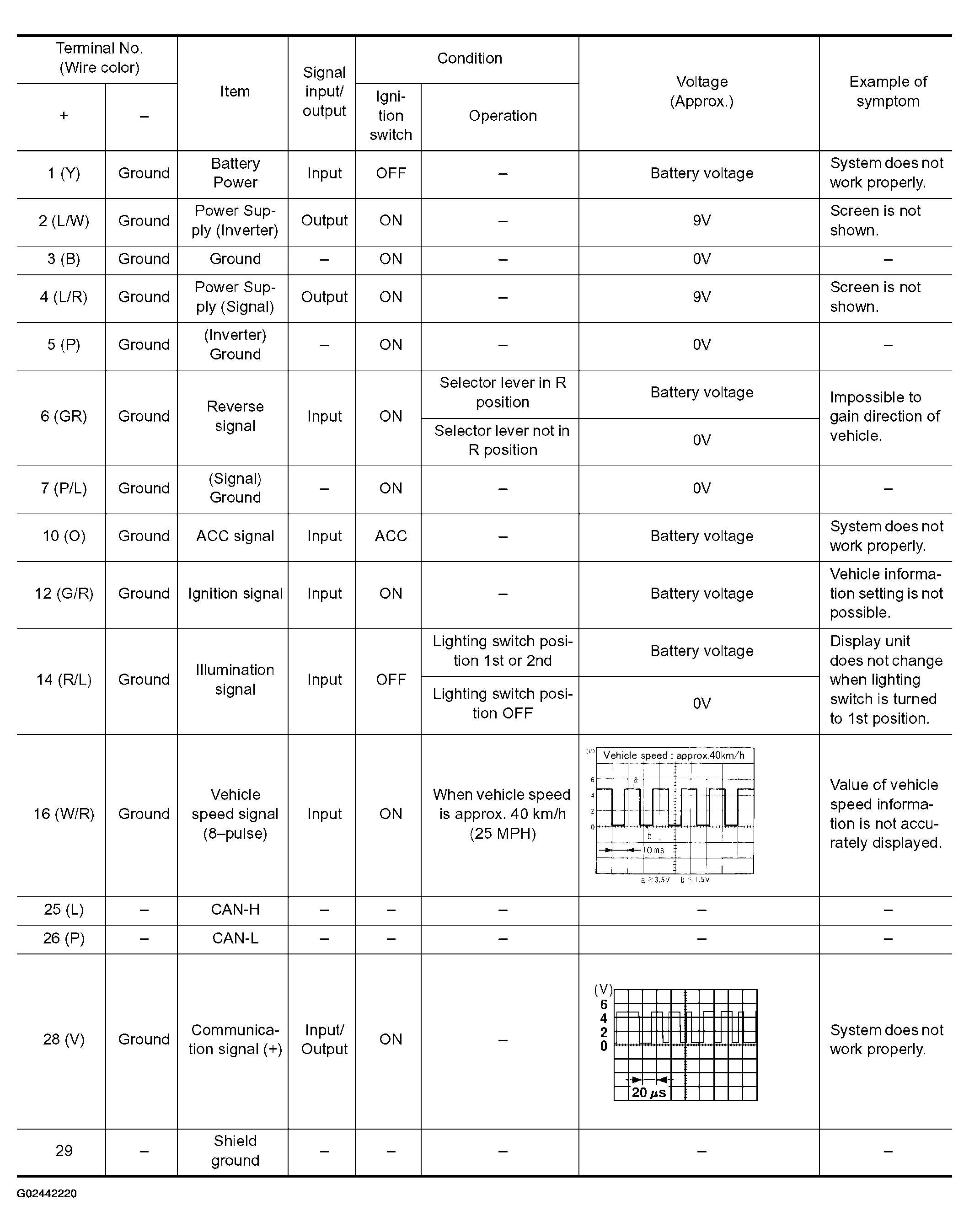

Fig 4: Control Unit Terminals & Reference Display (4 Of 4)
