Section 336 (Audio, Visual, Navigation & Telephone System)
>>
Navigation System
>>
System Description
>>
Warning Indications
Warning Indications
WARNING:
This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Warning signal is received from BCM through CAN communication line.

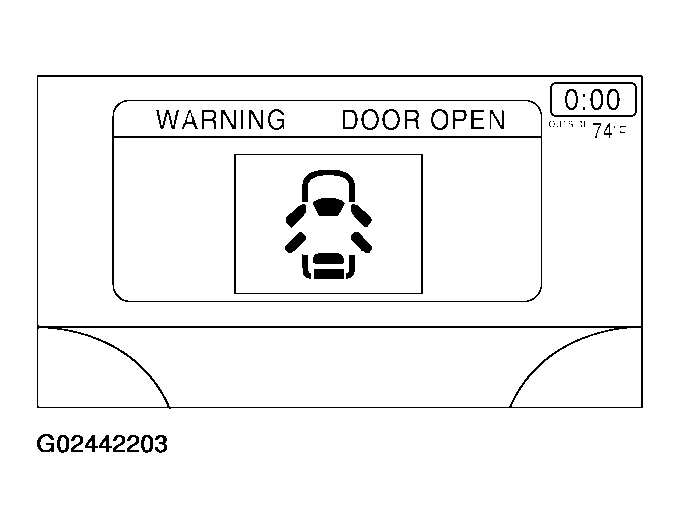

Fig 1: Warning Indications Display
Courtesy of NISSAN MOTOR CO., U.S.A.

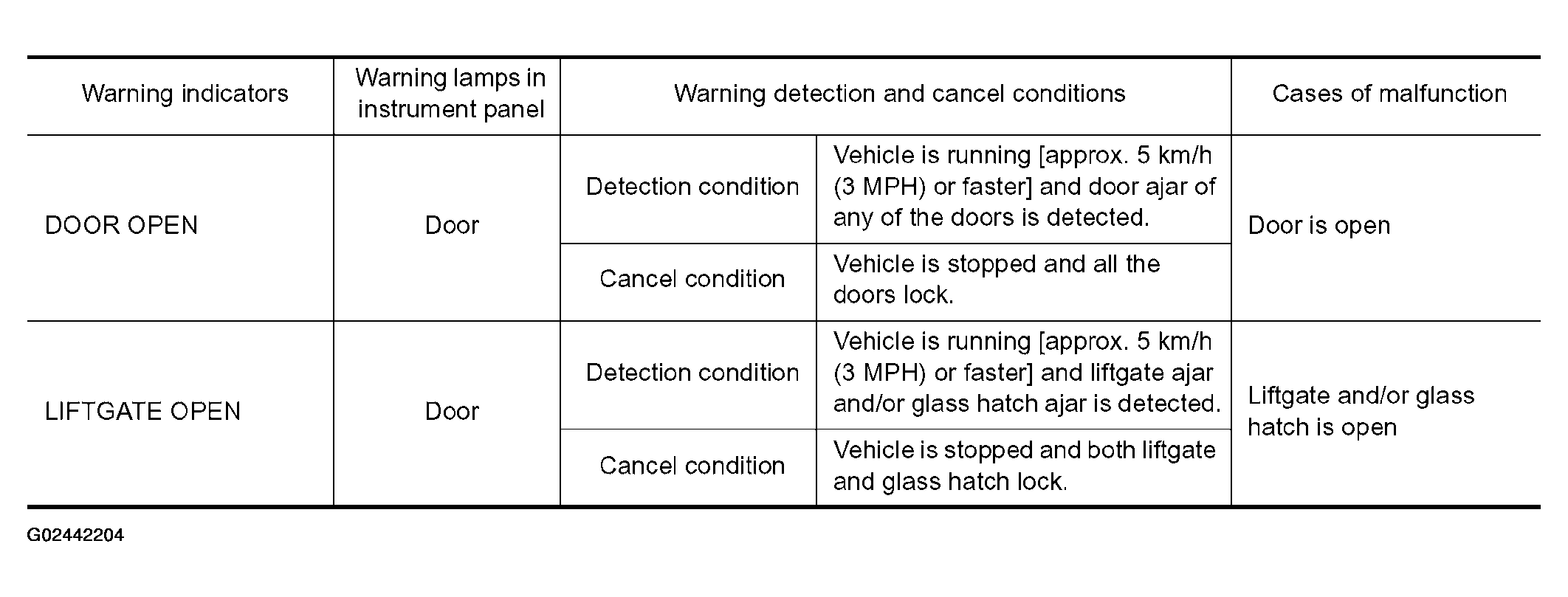

Fig 2: Warning Indicators Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
