Removal And Installation Of Display Unit

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid D. Refer to CLUSTER LID D .
  2. Remove the four display unit assembly screws.
  3. Disconnect connectors and remove display unit assembly.
  4. Remove screws and remove display unit from brackets.
  5. Installation is in reverse order of removal.

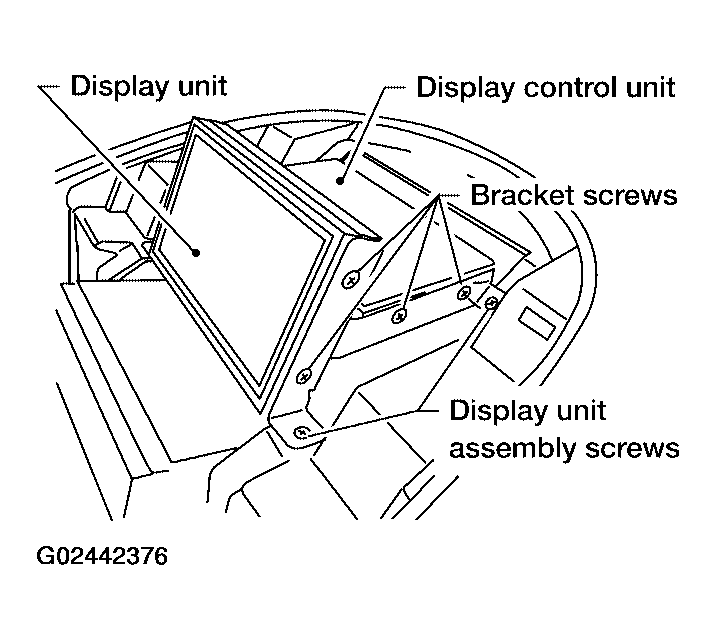

    Fig 1: Removing Screws & Display Unit From Brackets
    G02442376Courtesy of NISSAN MOTOR CO., U.S.A.
