Power Supply And Ground Circuit Check For Display Control Unit

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE
Make sure the following fuses of the display control unit are not blown.

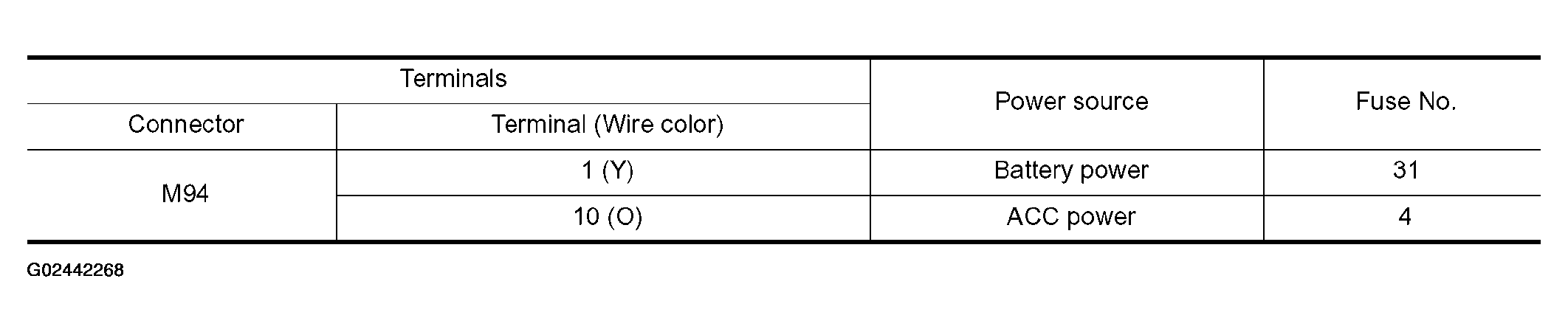

Fig 1: Connector Terminal Fuse Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: GO TO 2.
- NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER SUPPLY ROUTING CIRCUIT .
CHECK POWER SUPPLY CIRCUIT
1. Disconnect display control unit connector M94.
2. Check voltage between connector terminals and ground as follows.

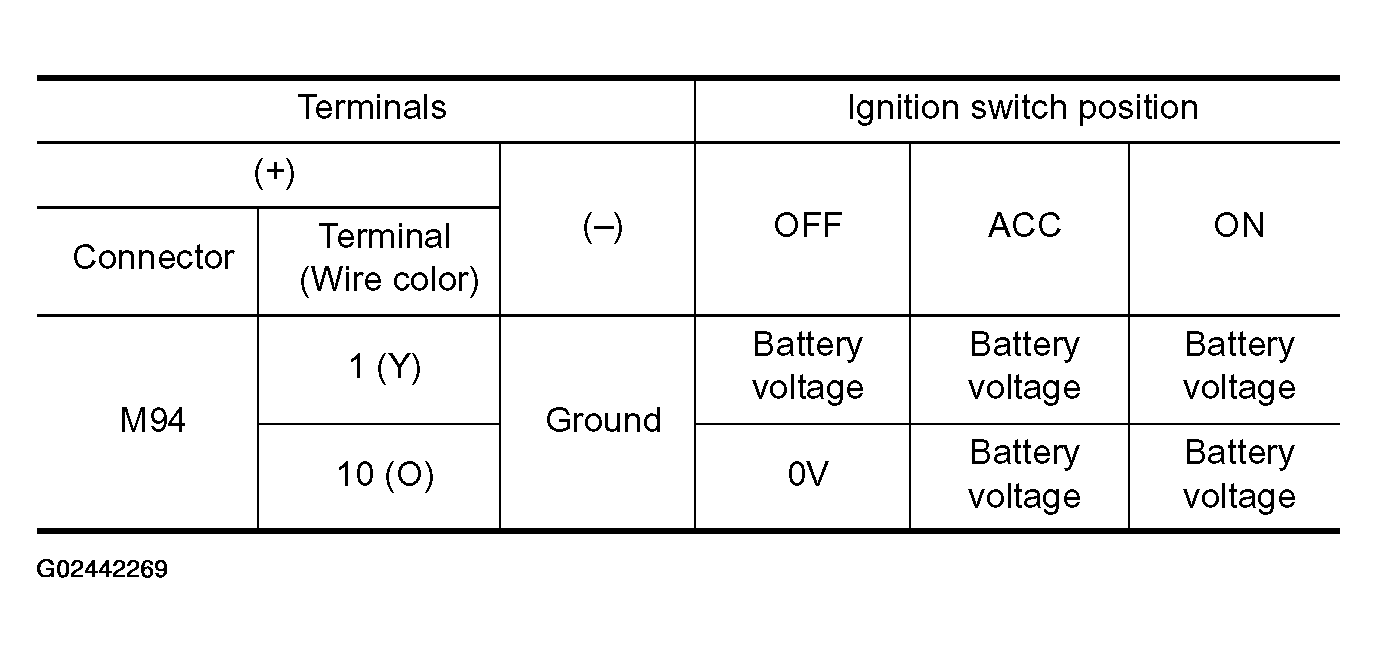

  Fig 2: Connector Terminal Voltage Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

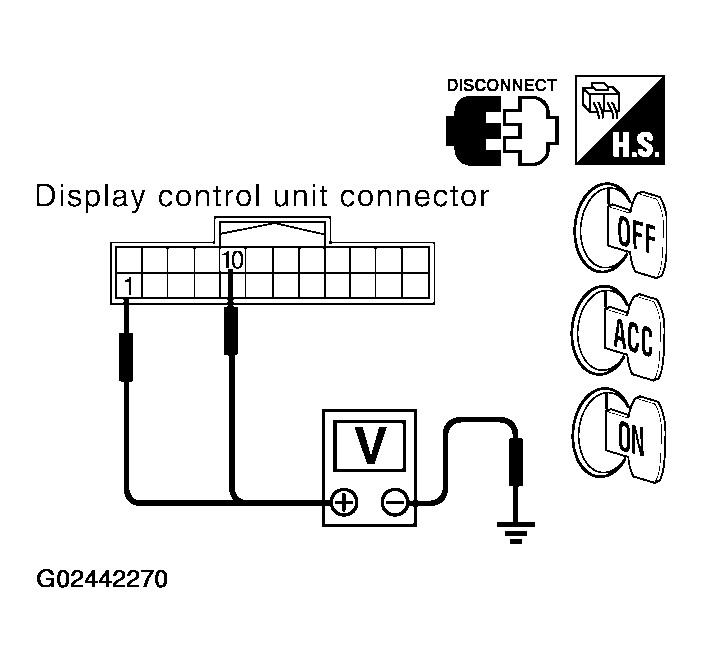

  Fig 3: Checking Voltage Between Connector Terminals & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 3.
- NG: Check harness for open between display control unit and fuse.
CHECK GROUND CIRCUIT
Check continuity between the following display control unit connector terminals and ground.

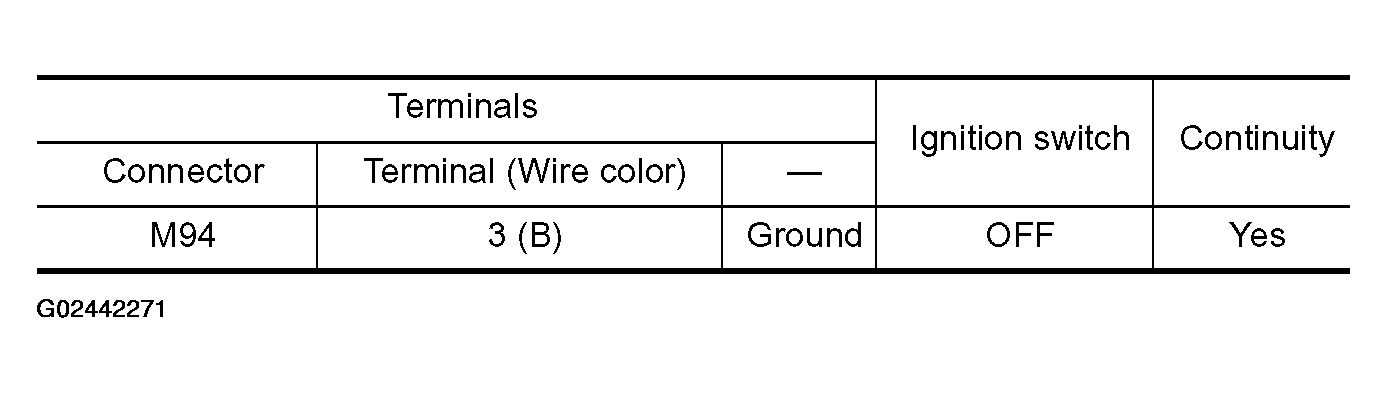

Fig 4: Connector Terminal Continuity Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Inspection End.
- NG: Repair or replace harness.

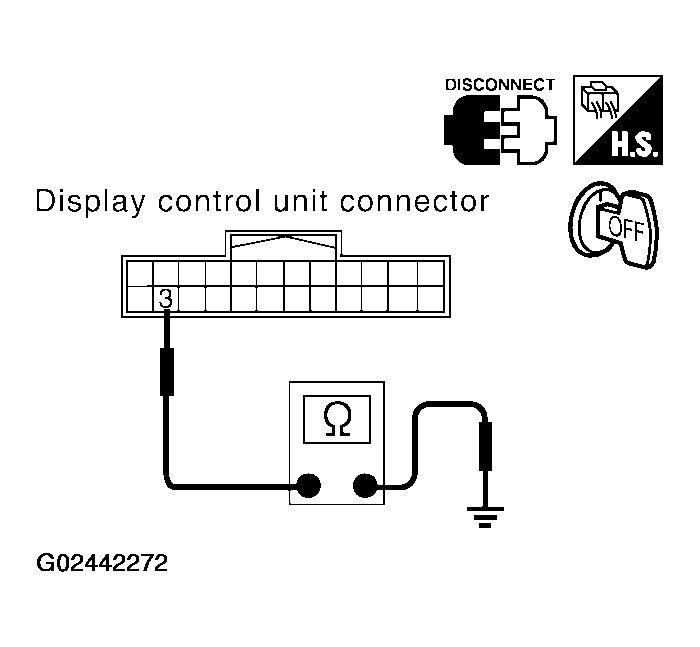

Fig 5: Checking Continuity Between Control Unit Connector Terminals & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
