Illumination Signal Check For Display Control Unit

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ILLUMINATION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between display control unit and ground.

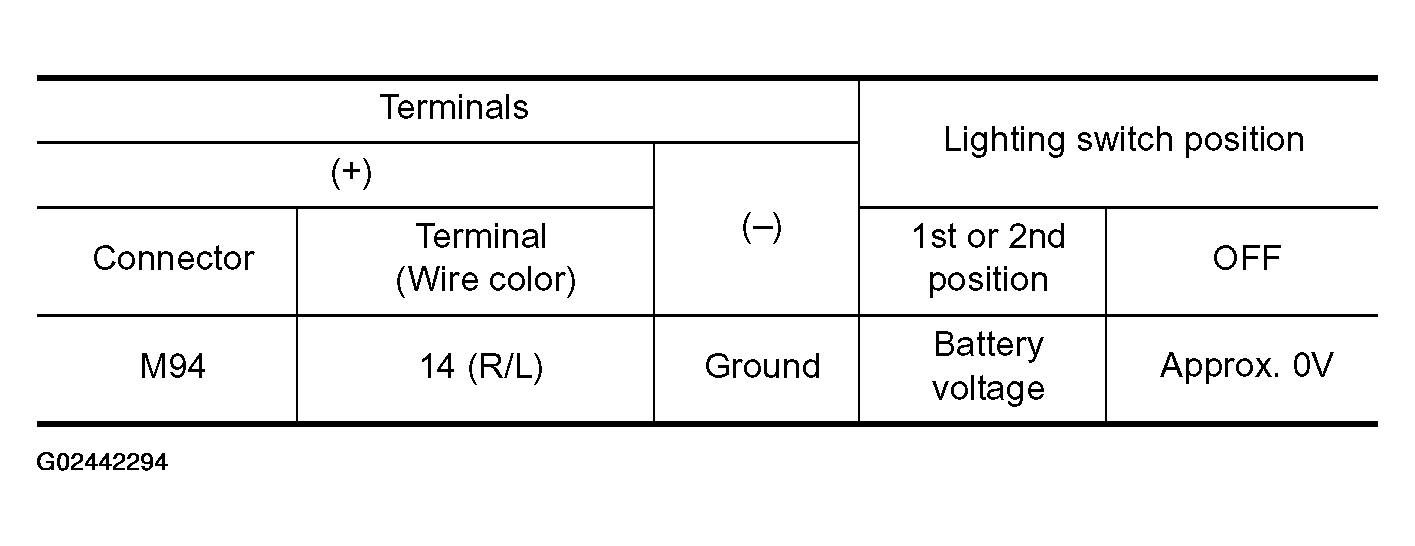

  Fig 1: Connector Terminal Voltage Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .
- NG: Check harness for open or short between display control unit and IPDM E/R.

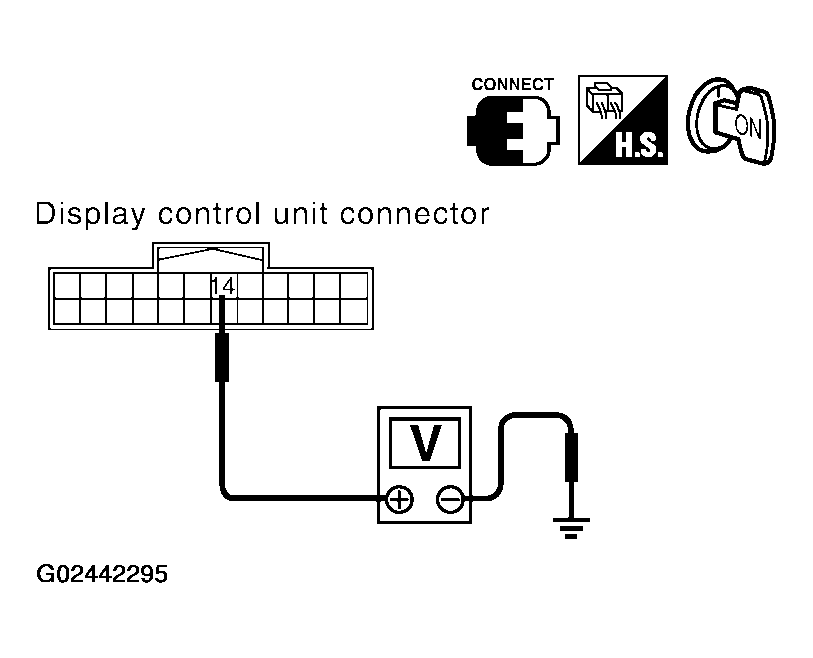

Fig 2: Checking Voltage Between Display Control Unit & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
