Can Communication Line Check: Notes
WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK MONITOR DESCRIPTION
- Start display control unit self-diagnosis. Refer to SELF-DIAGNOSIS MODE (DCU) .

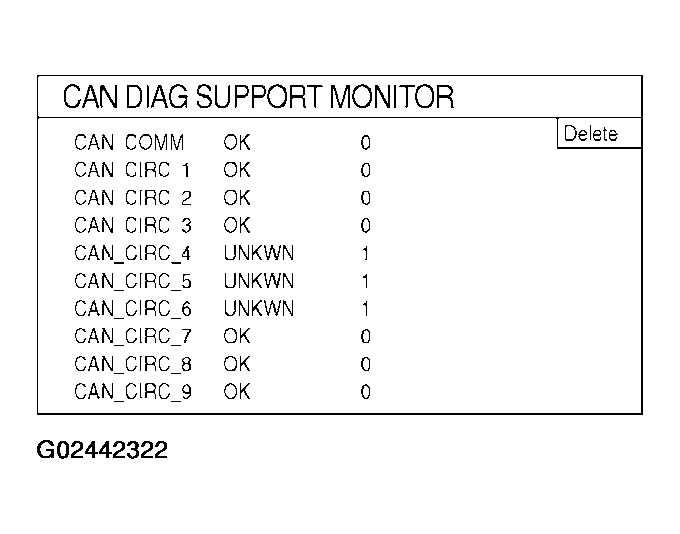

- Select "CAN DIAG SUPPORT MONITOR". Refer to
CAN DIAG SUPPORT MONITOR .CAN COMMUNICATION REFERENCE
Item Content Error counter item Normal condition Error (Example) Error counter CAN_COMM OK NG 0-50 CAN_CIRC_1 OK UNKWN 0-50 CAN_CIRC_2 OK UNKWN 0-50 CAN_CIRC_3 OK UNKWN 0-50 CAN_CIRC_4 OK UNKWN 0-50 CAN_CIRC_5 OK UNKWN 0-50 CAN_CIRC_6 OK UNKWN 0-50 CAN_CIRC_7 OK UNKWN 0-50 CAN_CIRC_8 OK UNKWN 0-50 CAN_CIRC_9 OK UNKWN 0-50 - Record each item display description (OK/NG/UKNWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.
