Av Communication Line Check (Between Display Control Unit And Av Switch)

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK AV SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector M95 and AV switch connector M98.
3. Check continuity between display control unit and AV switch.

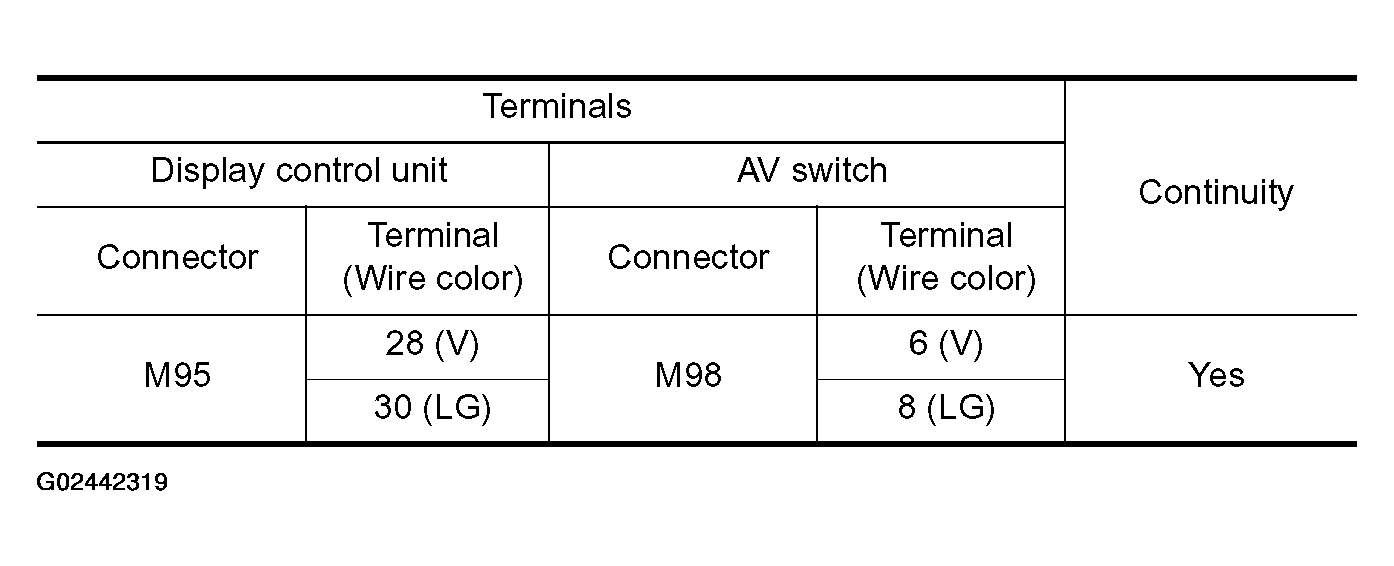

  Fig 1: Display Control Unit Connector Terminal Continuity Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

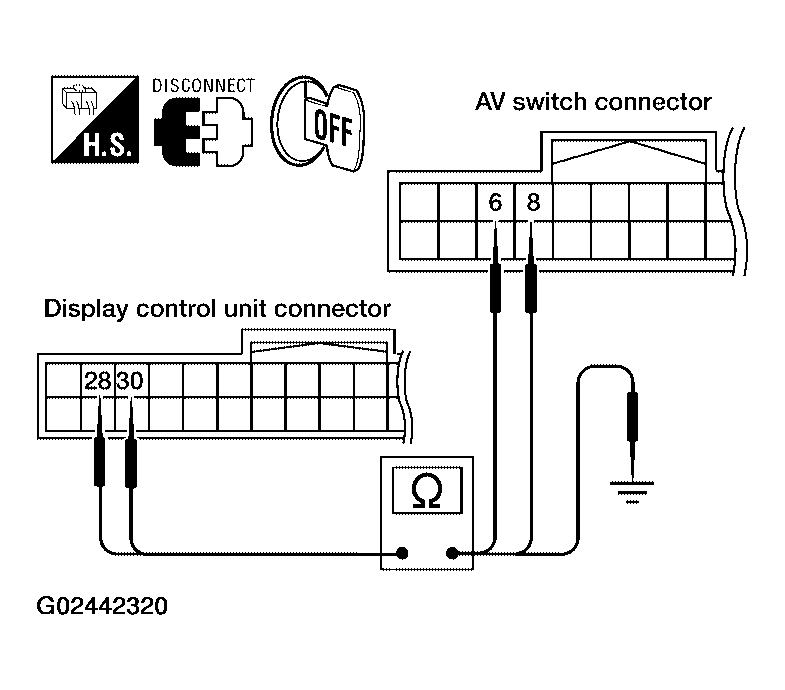

  Fig 2: Checking Continuity Between Display Control Unit & AV Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between display control unit and ground.

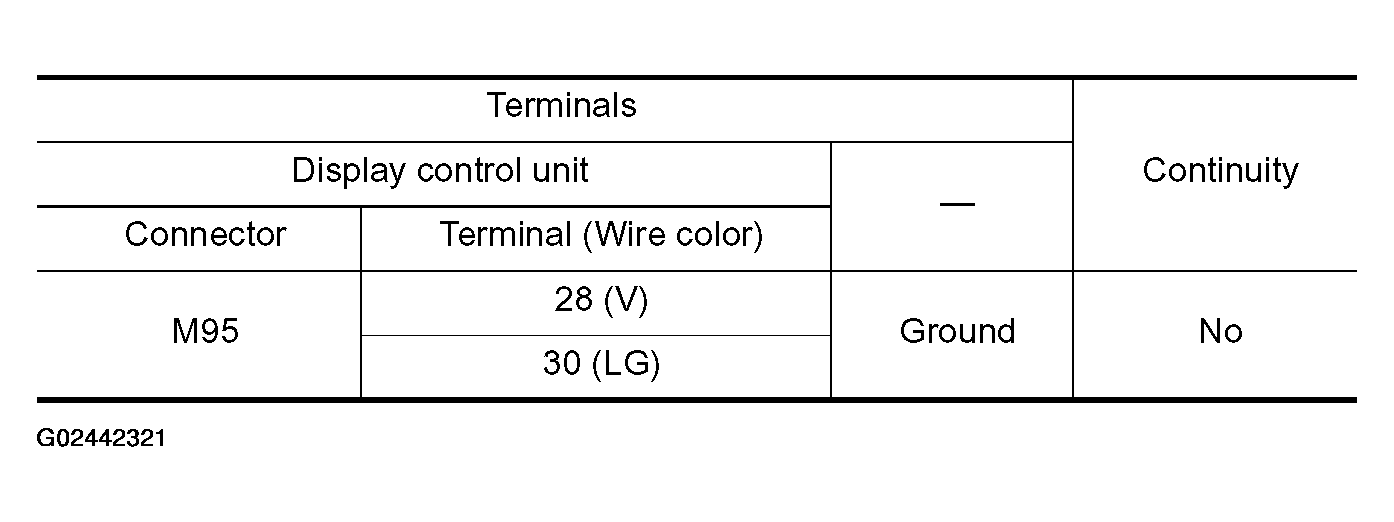

  Fig 3: Display Control Unit Connector Terminal Continuity Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Repair harness or connector.
CHECK SELF-DIAGNOSIS OF DCU
1. Replace AV switch.
2. Connect display control unit connector and AV switch connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU and check the self-diagnosis result.
OK or NG
- OK: Inspection End.
- NG: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .
