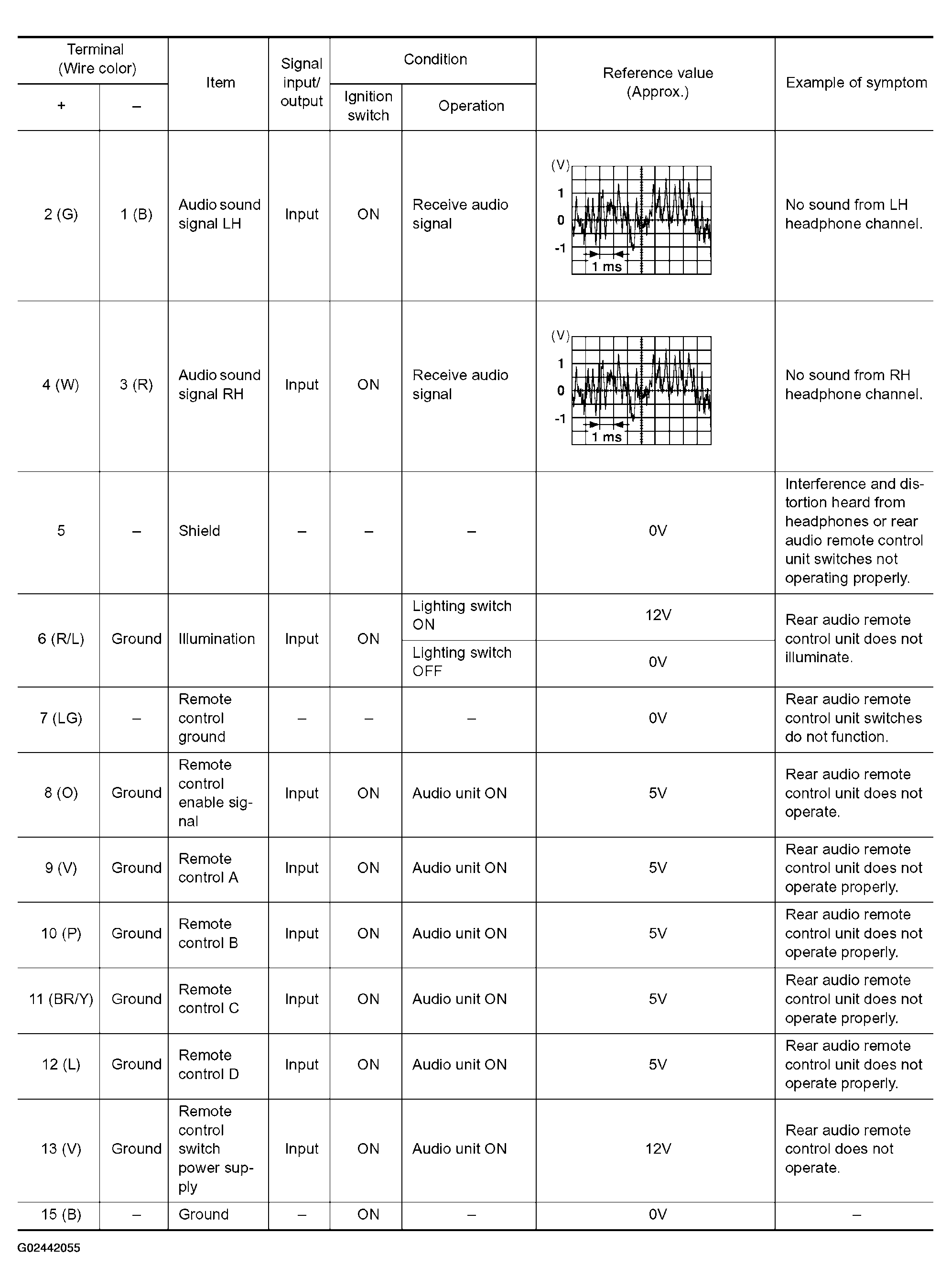

Terminals And Reference Value For Rear Audio Remote Control Unit

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
