Terminals And Reference Value For Audio Unit For BOSE System
WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

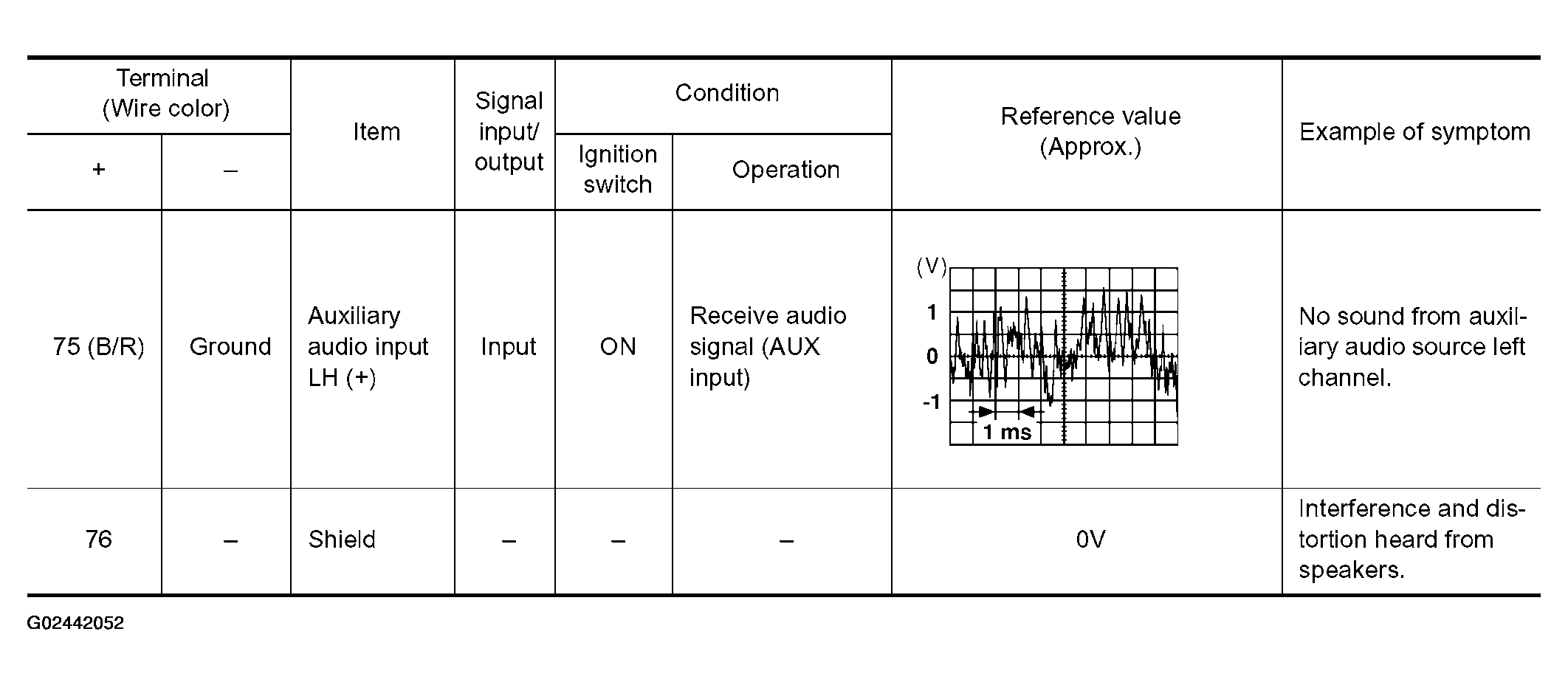

Fig 1: Audio Bose System Terminals Reference Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

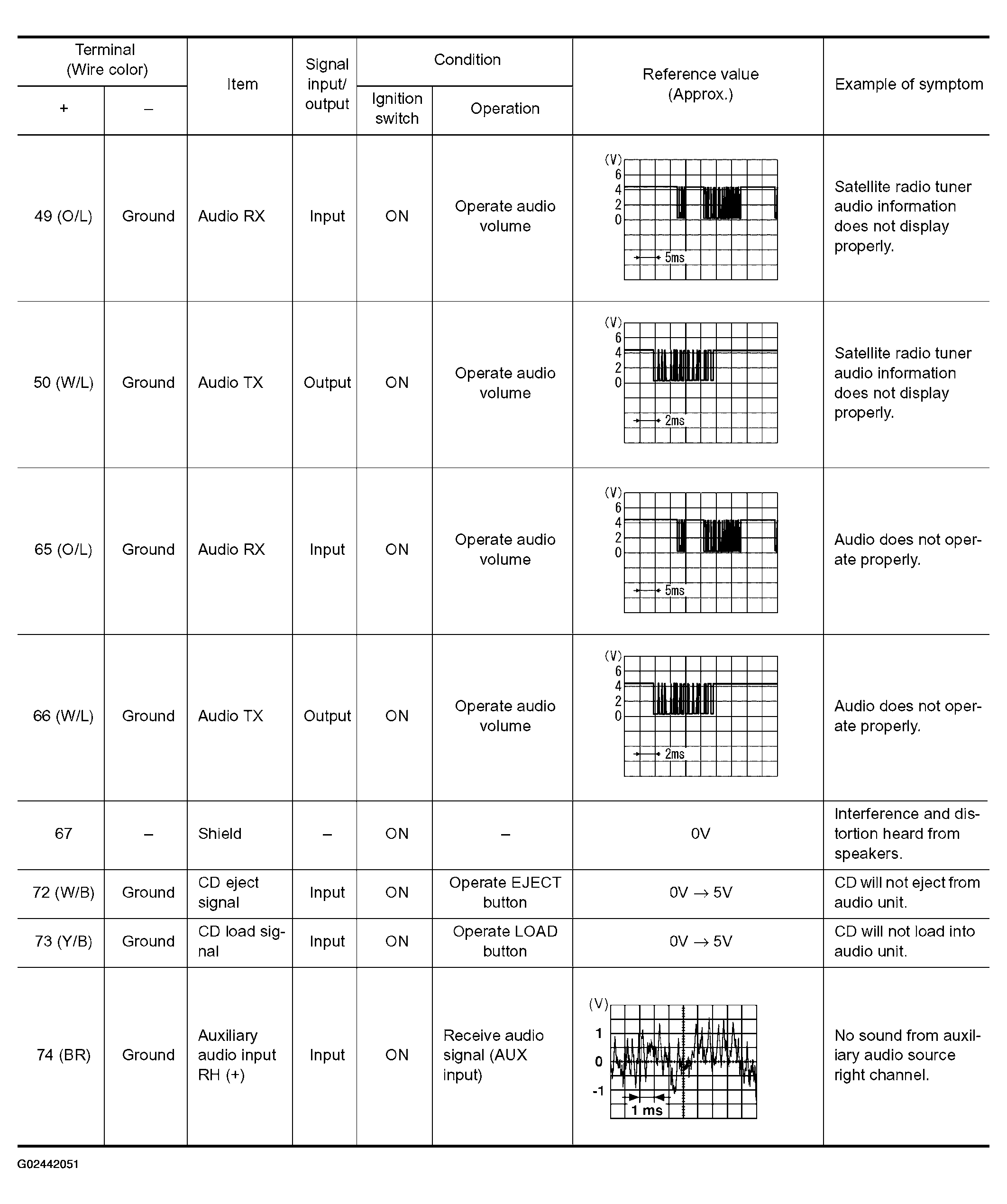

Fig 2: Audio Bose System Terminals Reference Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

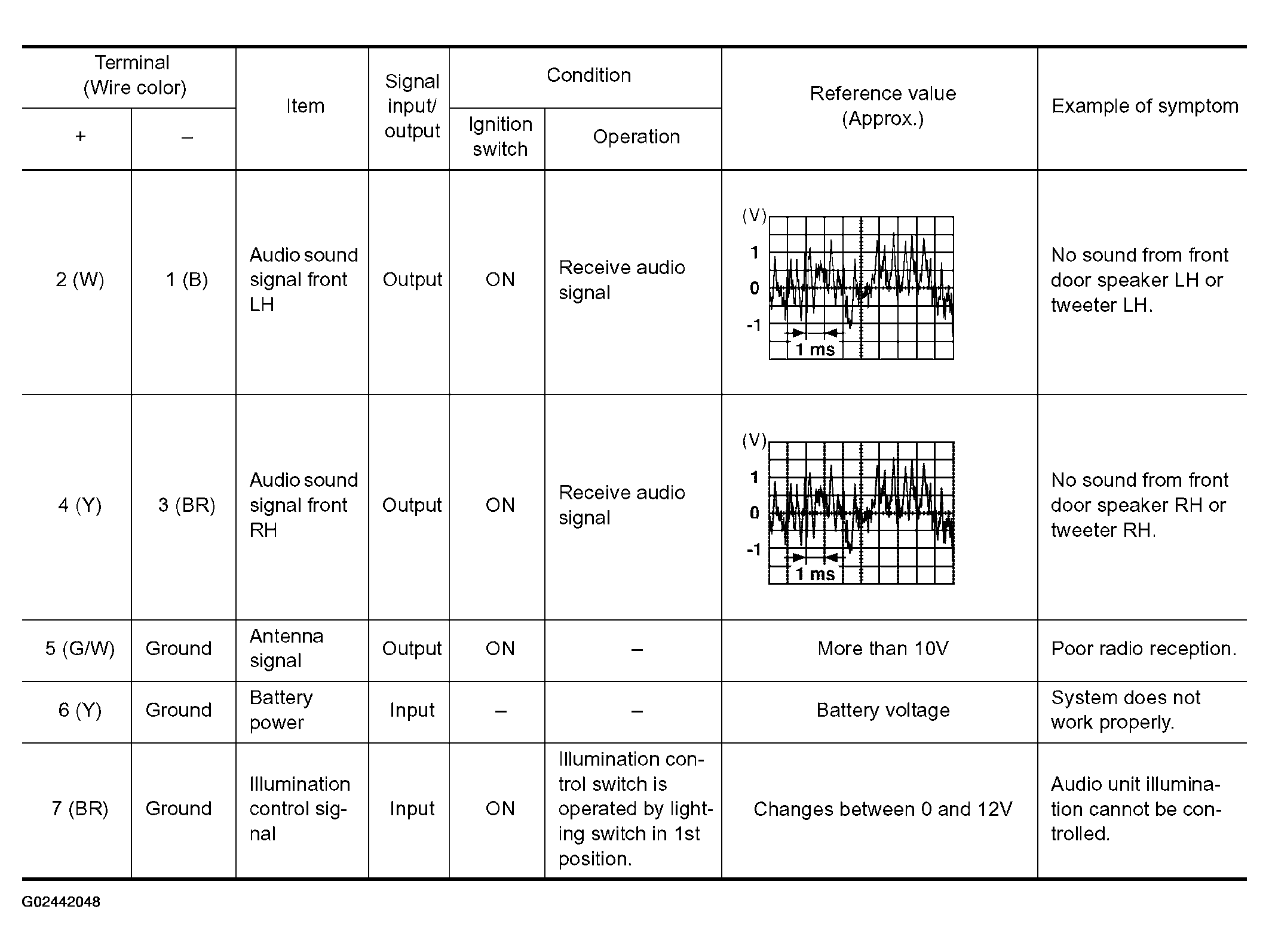

Fig 3: Audio Bose System Terminals Reference Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

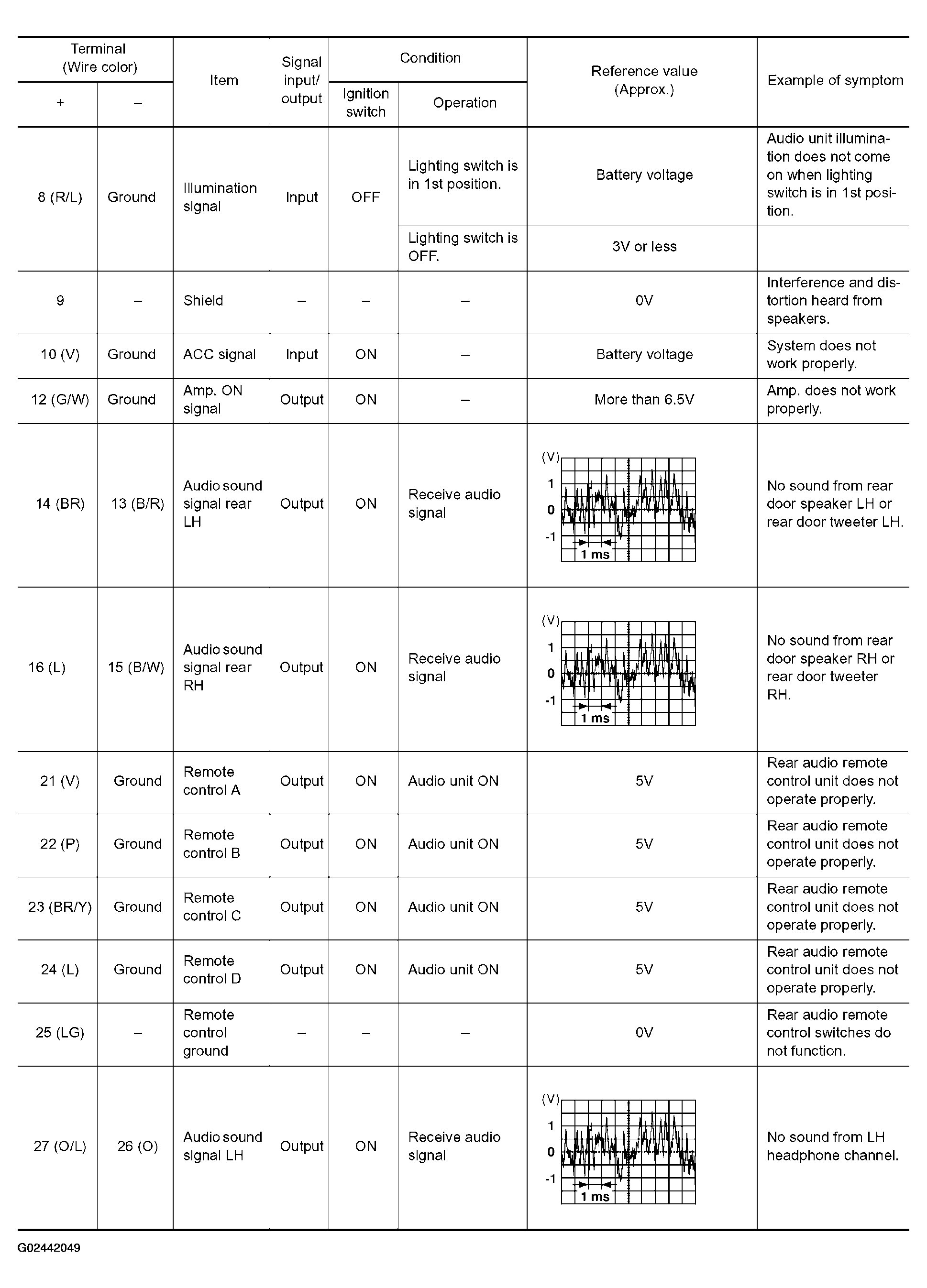

Fig 4: Audio Bose System Terminals Reference Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

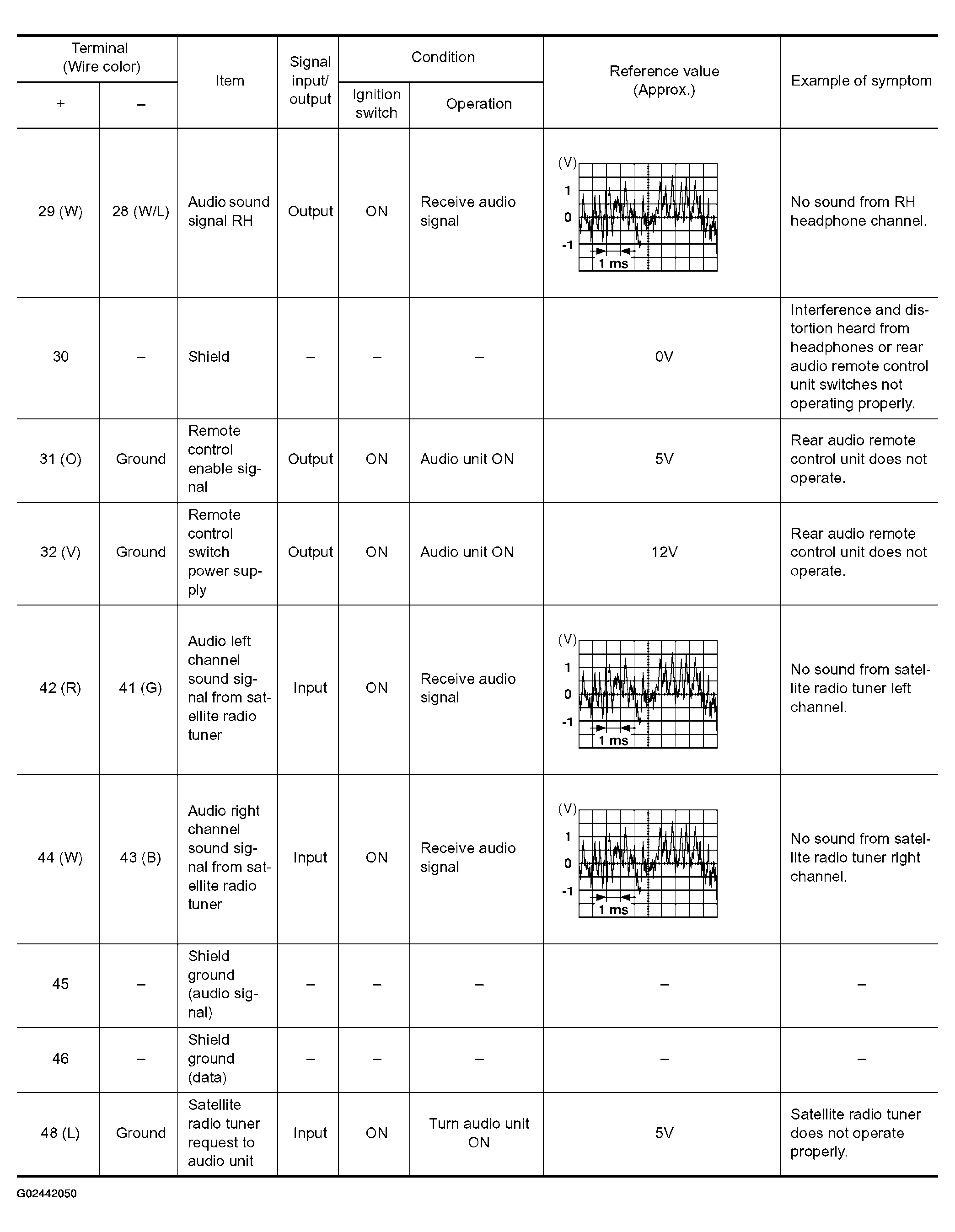

Fig 5: Audio Bose System Terminals Reference Chart (5 Of 5)
