Consult-II Basic Operation

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

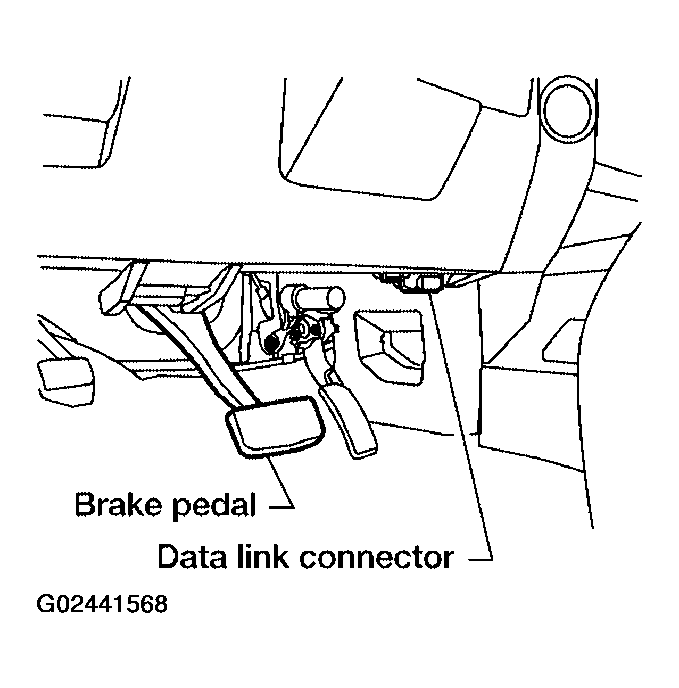

Fig 1: Connecting CONSULT-II & CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

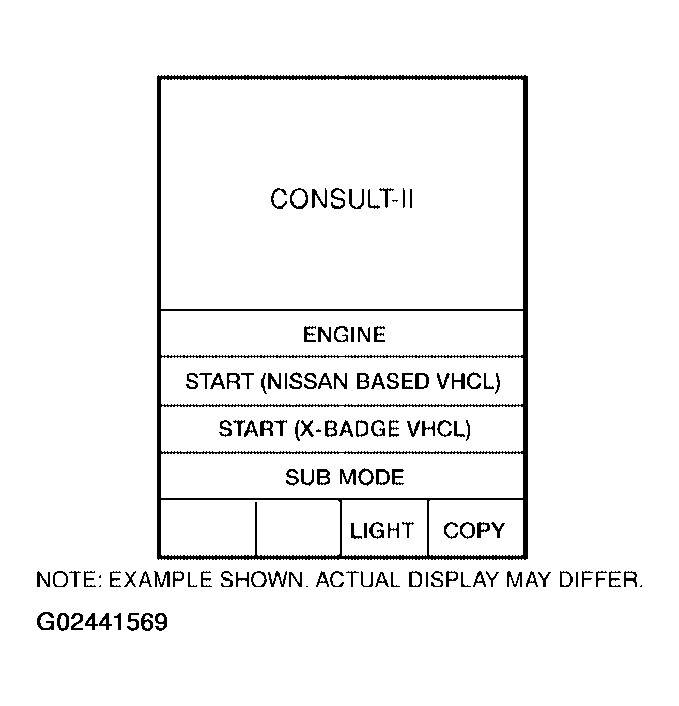

Fig 2: CONSULT-II - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REARVIEW CAMERA" on "SELECT SYSTEM" screen. If "REARVIEW CAMERA" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

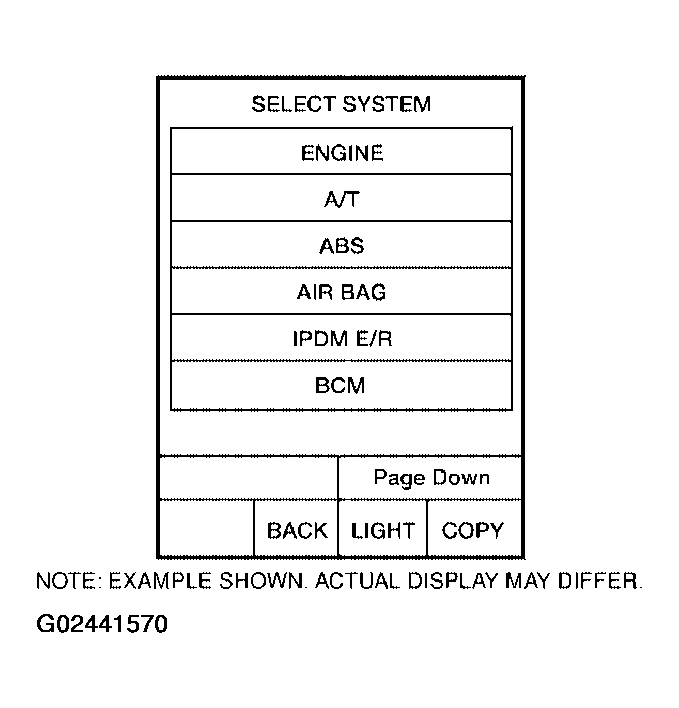

Fig 3: Select System - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "WORK SUPPORT", "DATA MONITOR" or "ECU PART NUMBER".

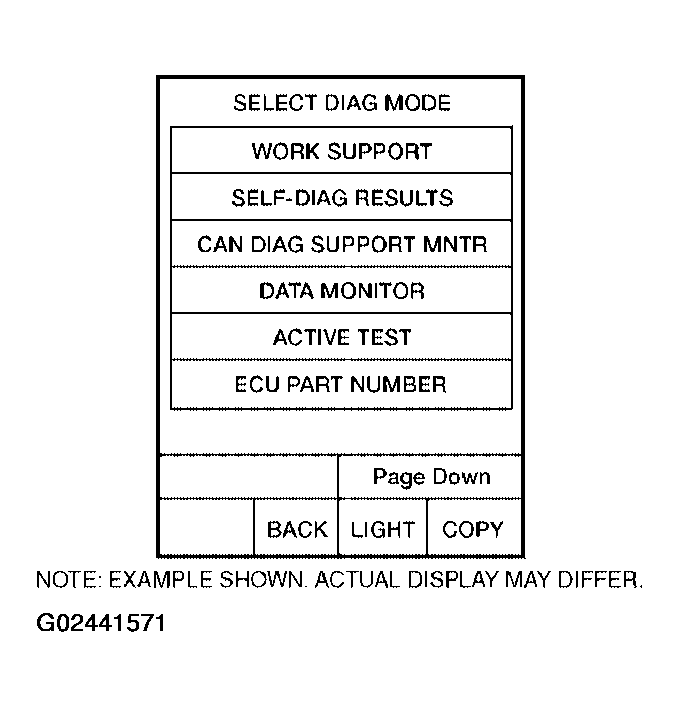

Fig 4: Select Diag Mode - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
