Circuit Diagram

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

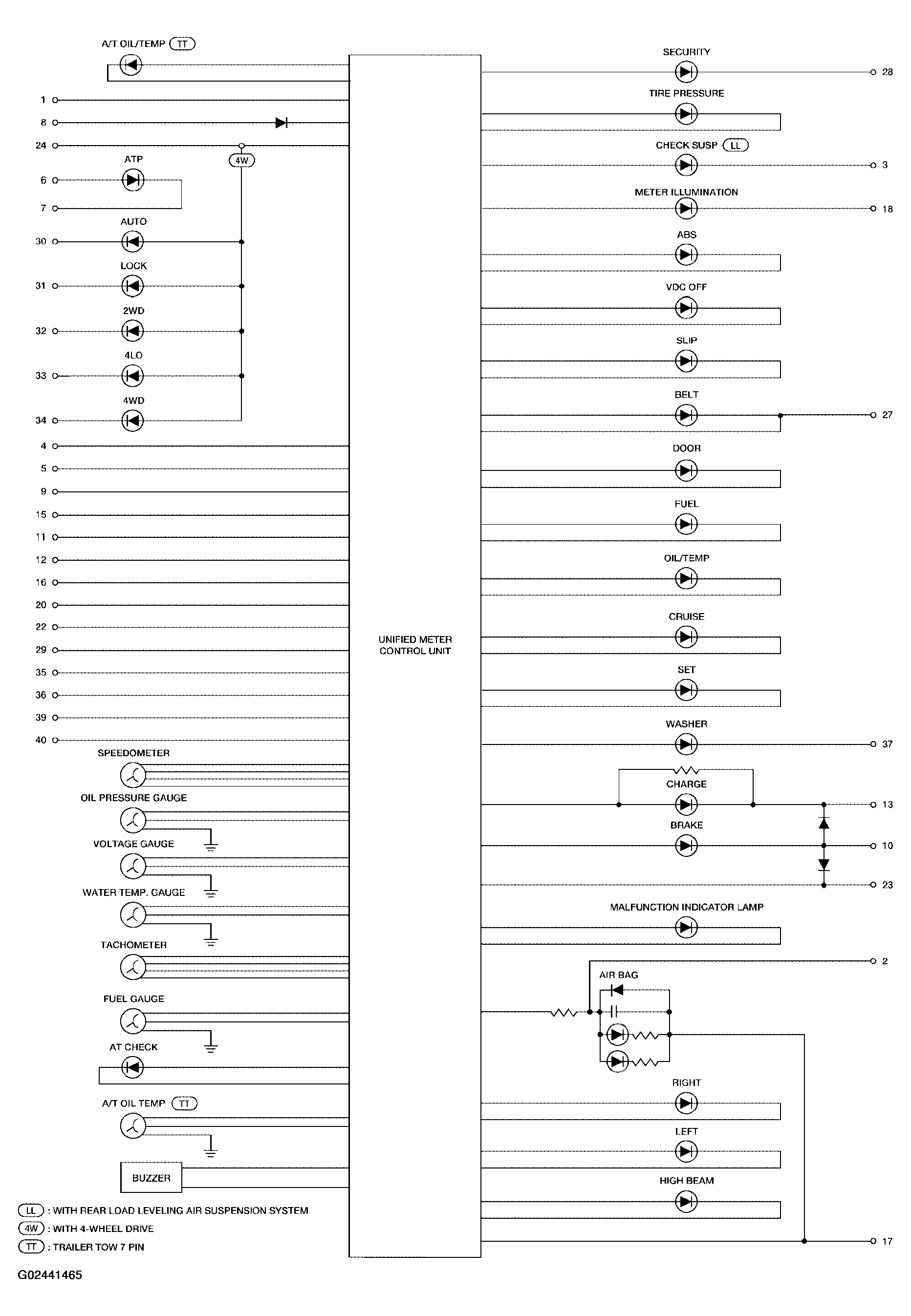

Fig 1: Combination Meter - Circuit Diagram
G02441465Courtesy of NISSAN MOTOR CO., U.S.A.
