Wiring Diagram - COMBSW

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS

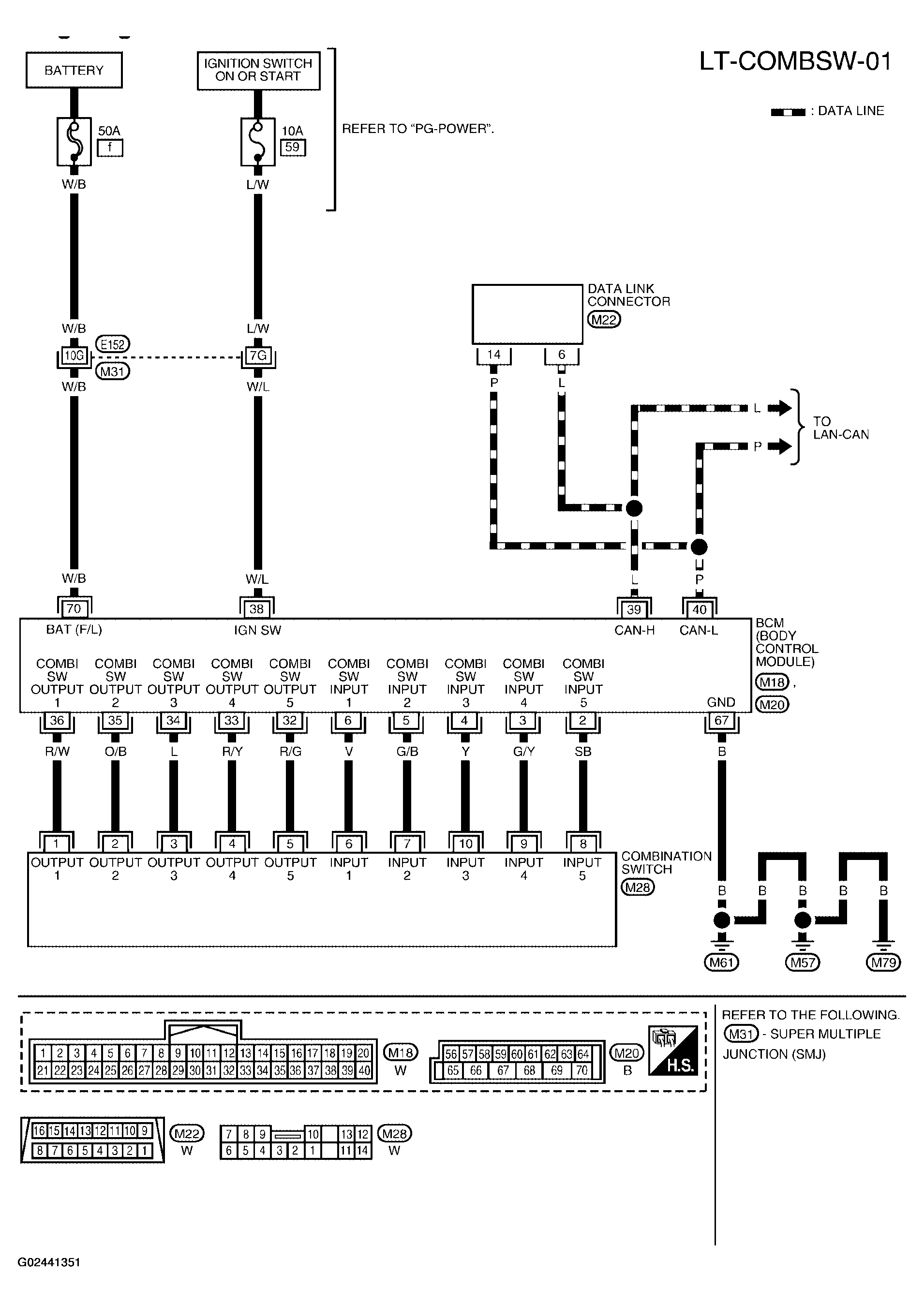

Fig 1: Wiring Diagram - (LT-COMBSW-01)

Courtesy of NISSAN MOTOR CO., U.S.A.
