Rear Fender

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

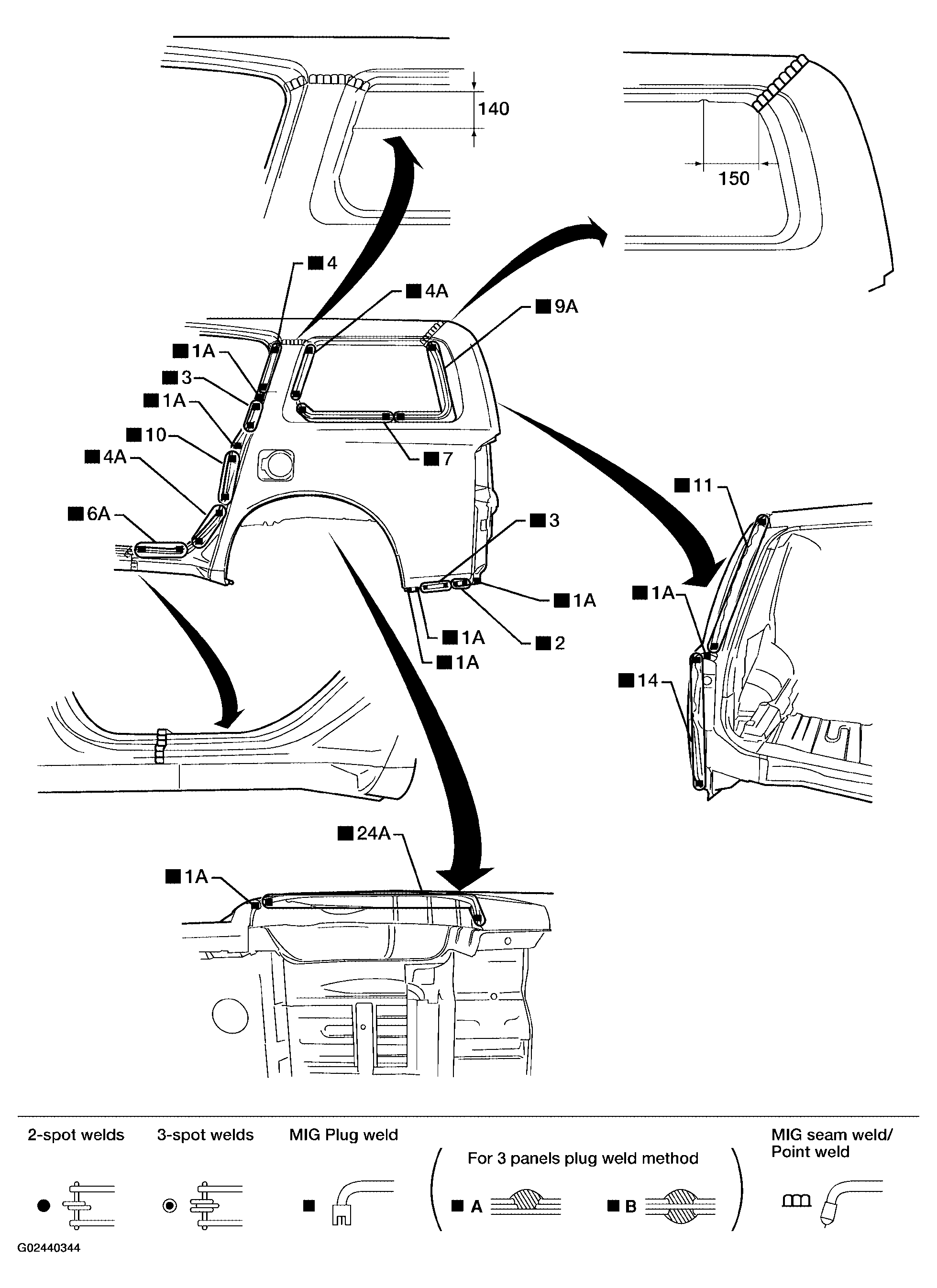

Fig 1: Identifying Rear Fender Service Joints
G02440344Courtesy of NISSAN MOTOR CO., U.S.A.

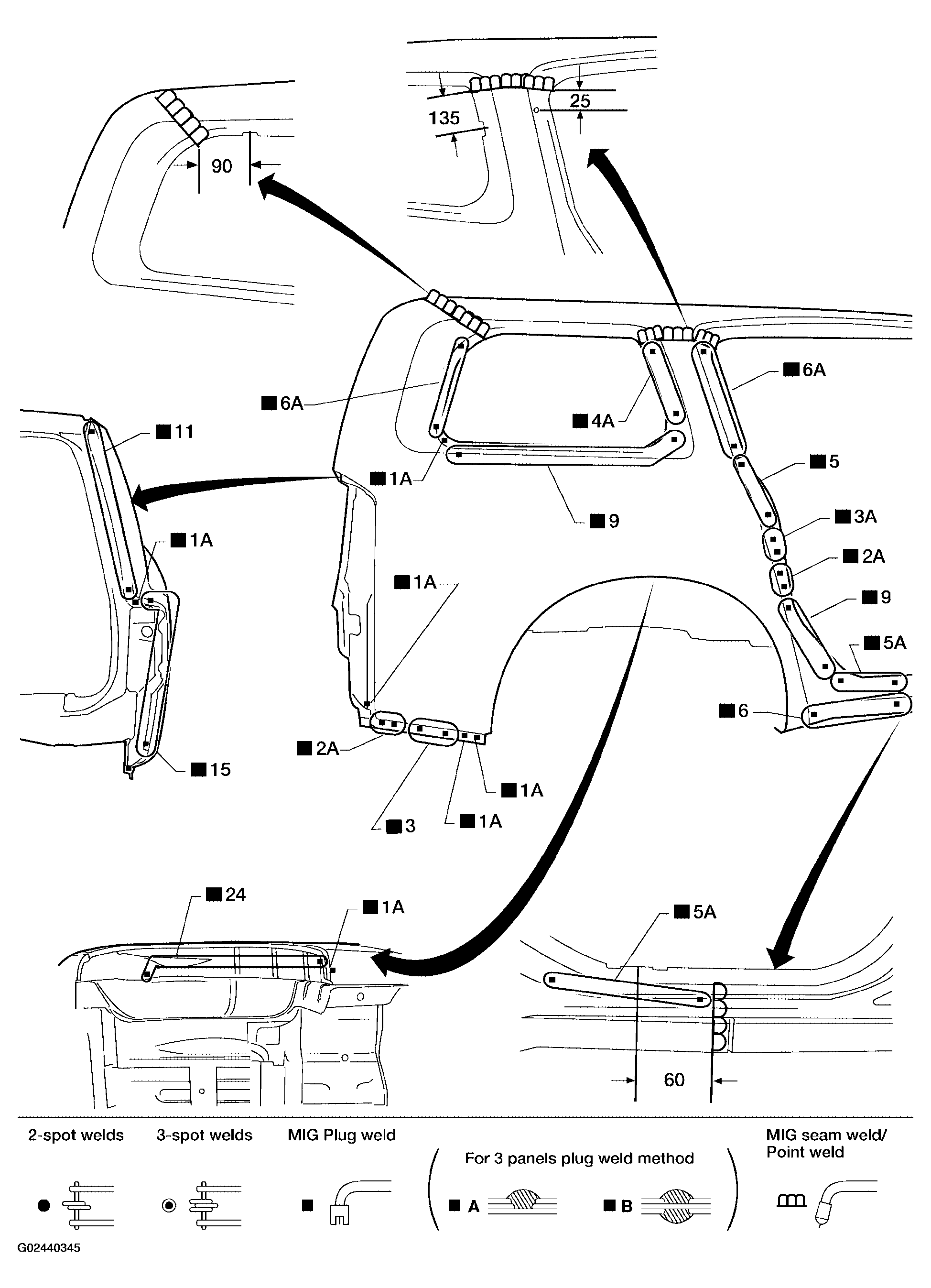

Fig 2: Service Joint
G02440345Courtesy of NISSAN MOTOR CO., U.S.A.
