Control When Operating Enable Conditions Not Met During Power Open/Close

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

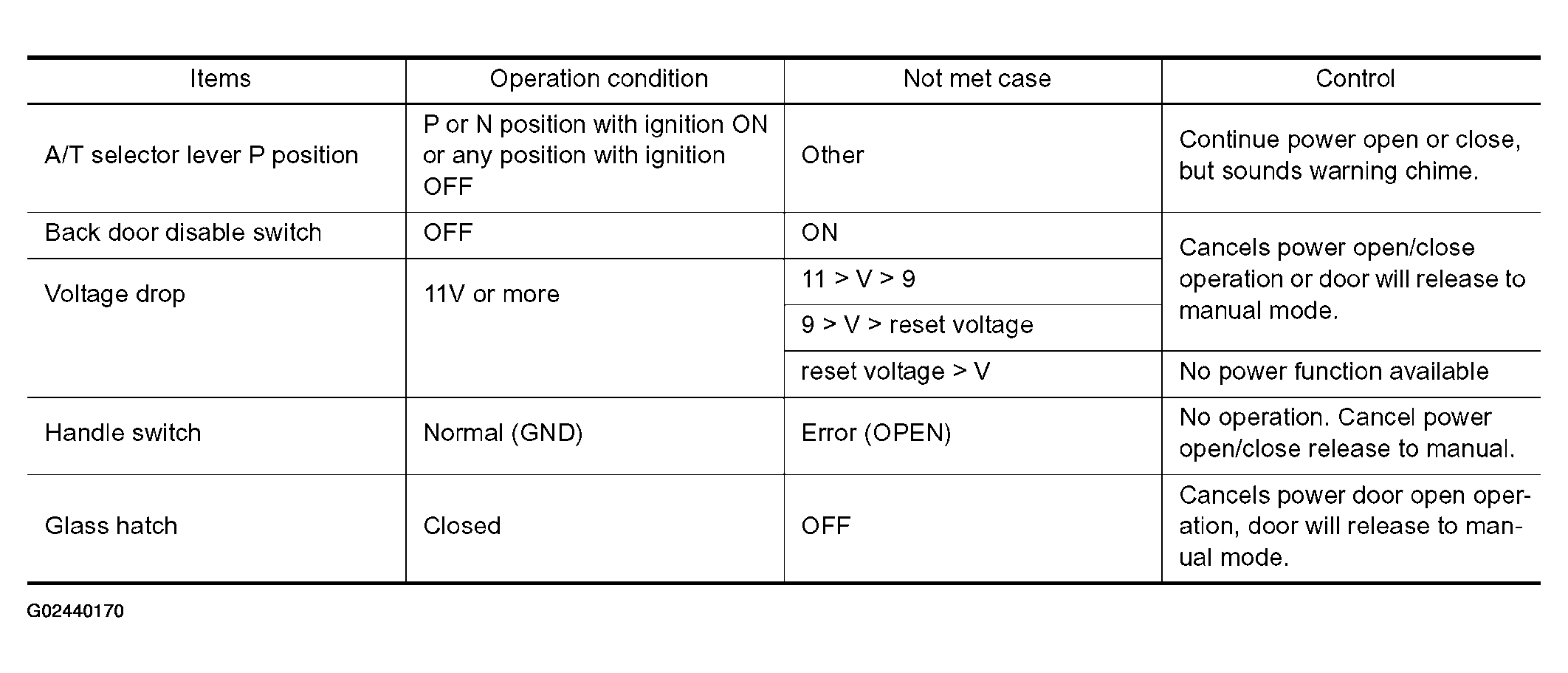

Fig 1: Control When Operating Enable Conditions Not Met During Power Open/Close Description Chart
G02440170Courtesy of NISSAN MOTOR CO., U.S.A.
