Removal And Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front final drive assembly.
    1. Front final drive bolts: 182.5 N.m (19 Kg-m, 135 ft-lb)
  2. Connect the vent hose.
  3. Install the front cross member.
  4. Install LH and RH drive shaft. Refer to INSTALLATION .
  5. Install front propeller shaft. Refer to INSTALLATION .

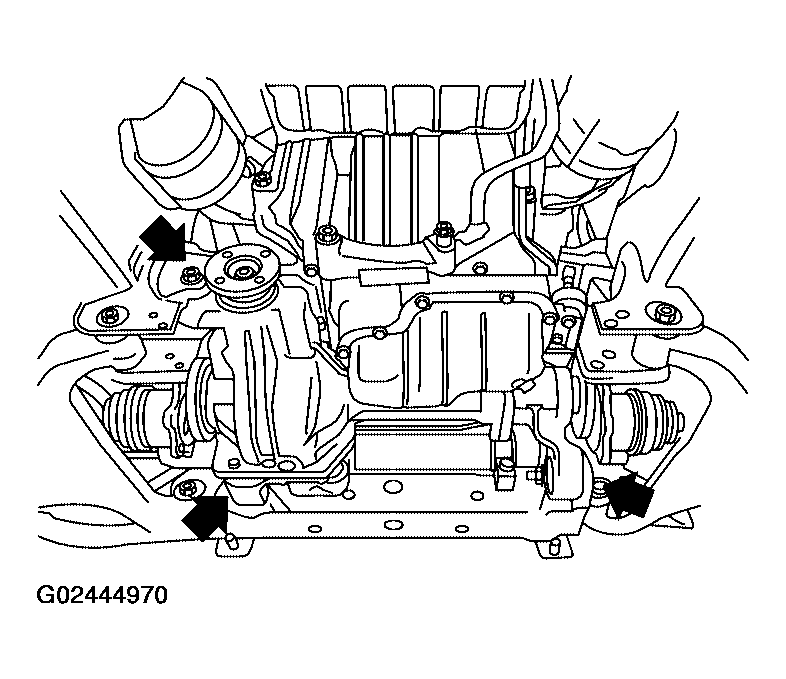

    Fig 1: Installing Front Final Drive Bolts
    G02444970Courtesy of NISSAN MOTOR CO., U.S.A.
