Total Preload

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn drive pinion in both directions several times to set bearing rollers.
  2. Check total preload using Tool.
    1. Tool number: ST3127S000 (J-25765-A)
    2. Total preload (with oil seal): 2.98 - 4.76 N.m (0.31 - 0.48 Kg-m, 27 - 42 in-lb)

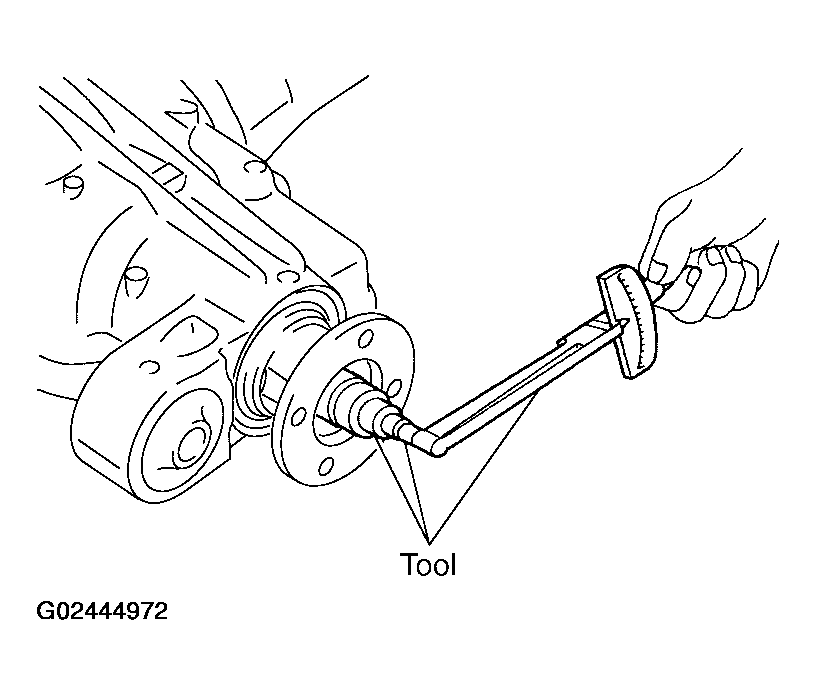

    Fig 1: Checking Total Preload Using Tool
    G02444972Courtesy of NISSAN MOTOR CO., U.S.A.
