Component Inspection
WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "OFF". (Stay for at least 5 seconds.)
- Disconnect wait detection switch harness connector.
- Remove wait detection switch. Refer to Location of Electrical Parts .

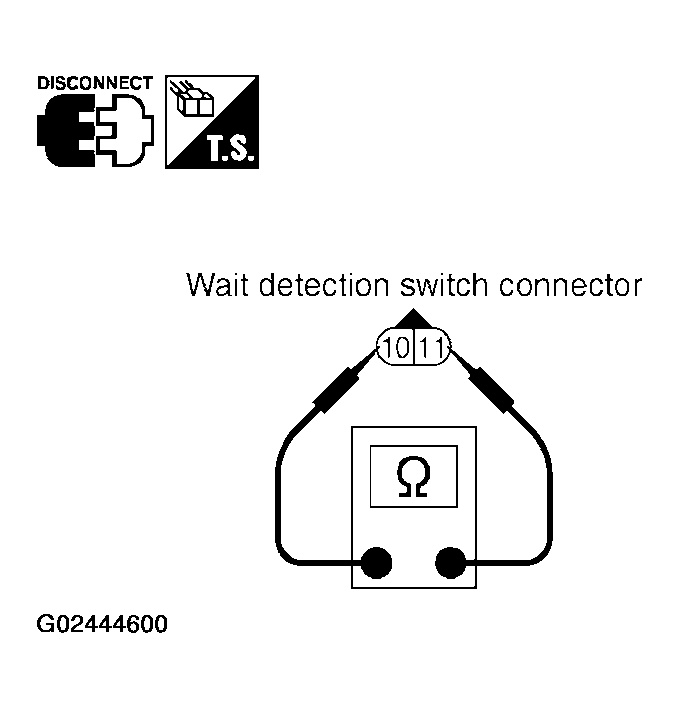

- Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.TERMINALS CONTINUITY REFERENCE
Terminal Condition Continuity 10 - 11 Push wait detection switch Yes 10 - 11 Release wait detection switch No - If NG, replace the wait detection switch. Refer to Location of Electrical Parts .
