Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the figure for transfer control device removal and installation information.

CAUTION:

Change vehicle state to 2WD or AUTO, and then remove and install transfer control device.
Check 4WD shift indicator after installation. Refer to Precautions for Transfer Assembly and Transfer Control Unit Replacement .

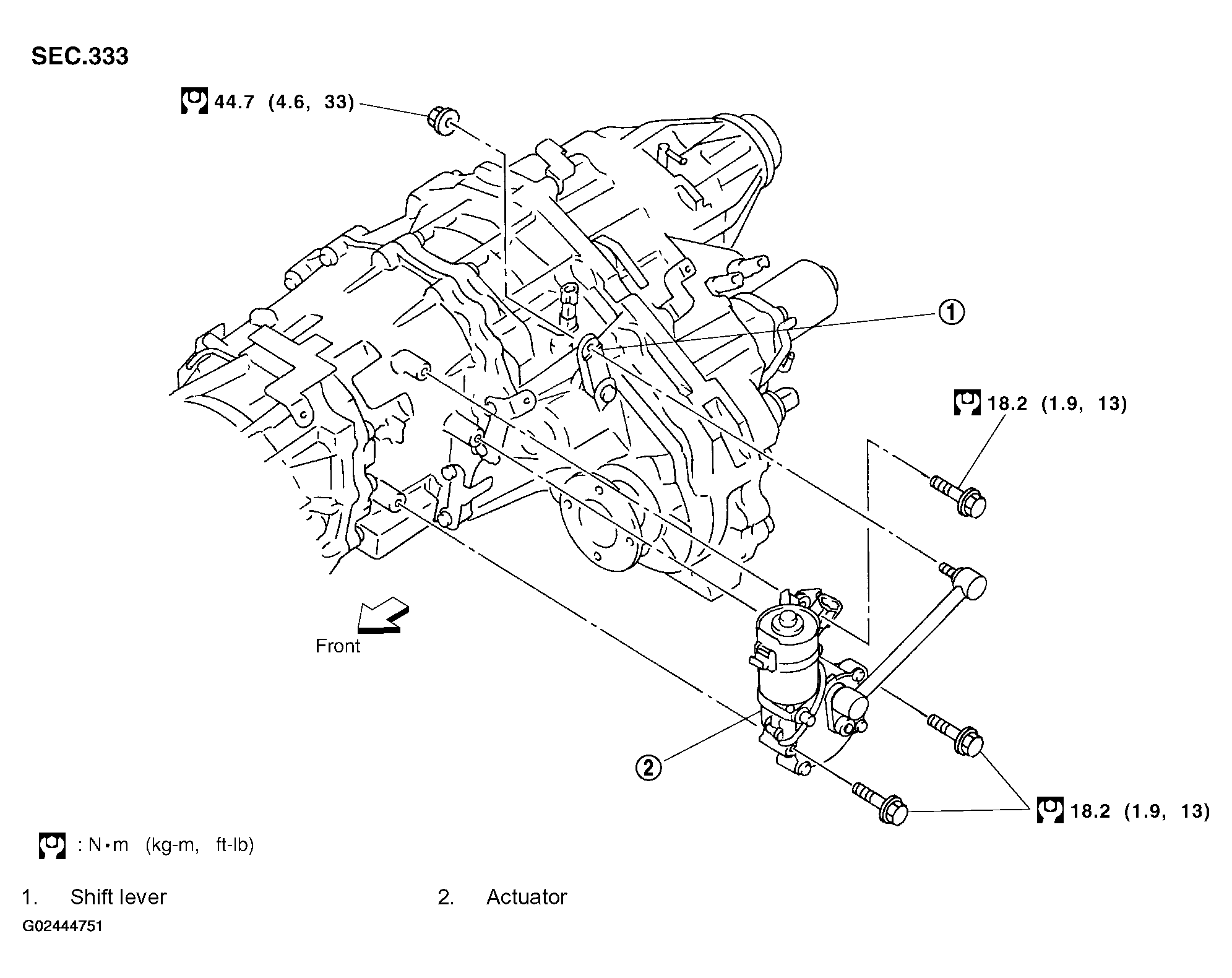

Fig 1: Removing Transfer Control Device With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
