Shift Rod Components

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Check the working face of the shift rod and fork for wear, partial wear, bending and other abnormality. If any is found, replace with a new one.

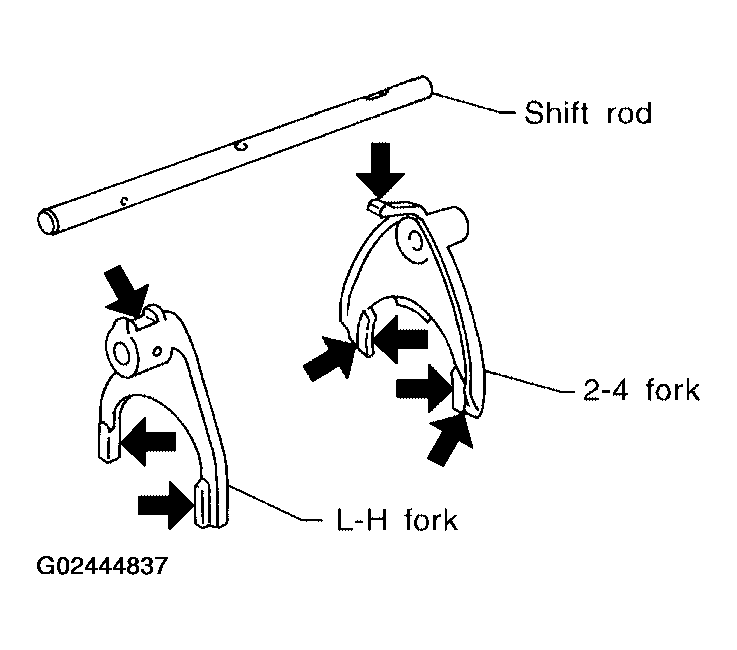

Fig 1: Shift Rod Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure the clearance between the shift fork and sleeve. If it is out of specification, replace it with a new one.
- Specification: Less than 0.36 mm (0.0142 in)

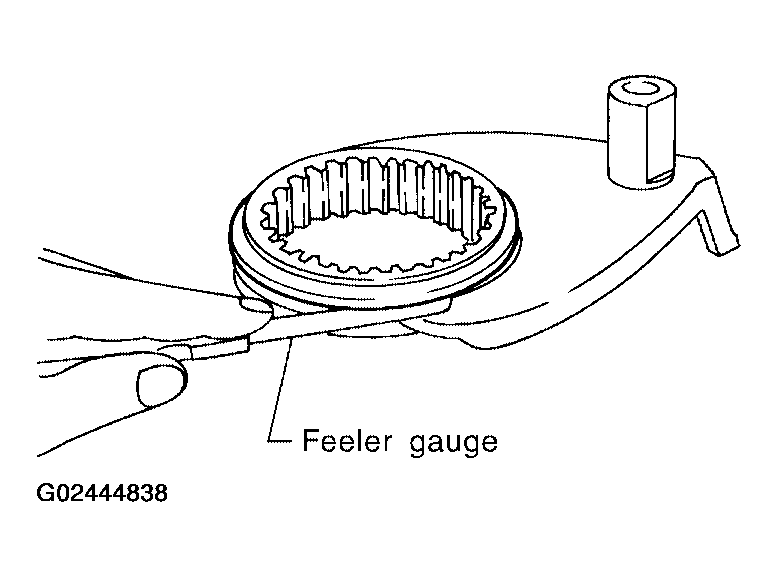

Fig 2: Measuring Clearance Between Shift Fork & Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
