DTC P0172, P0175: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 2.
Bank 2.

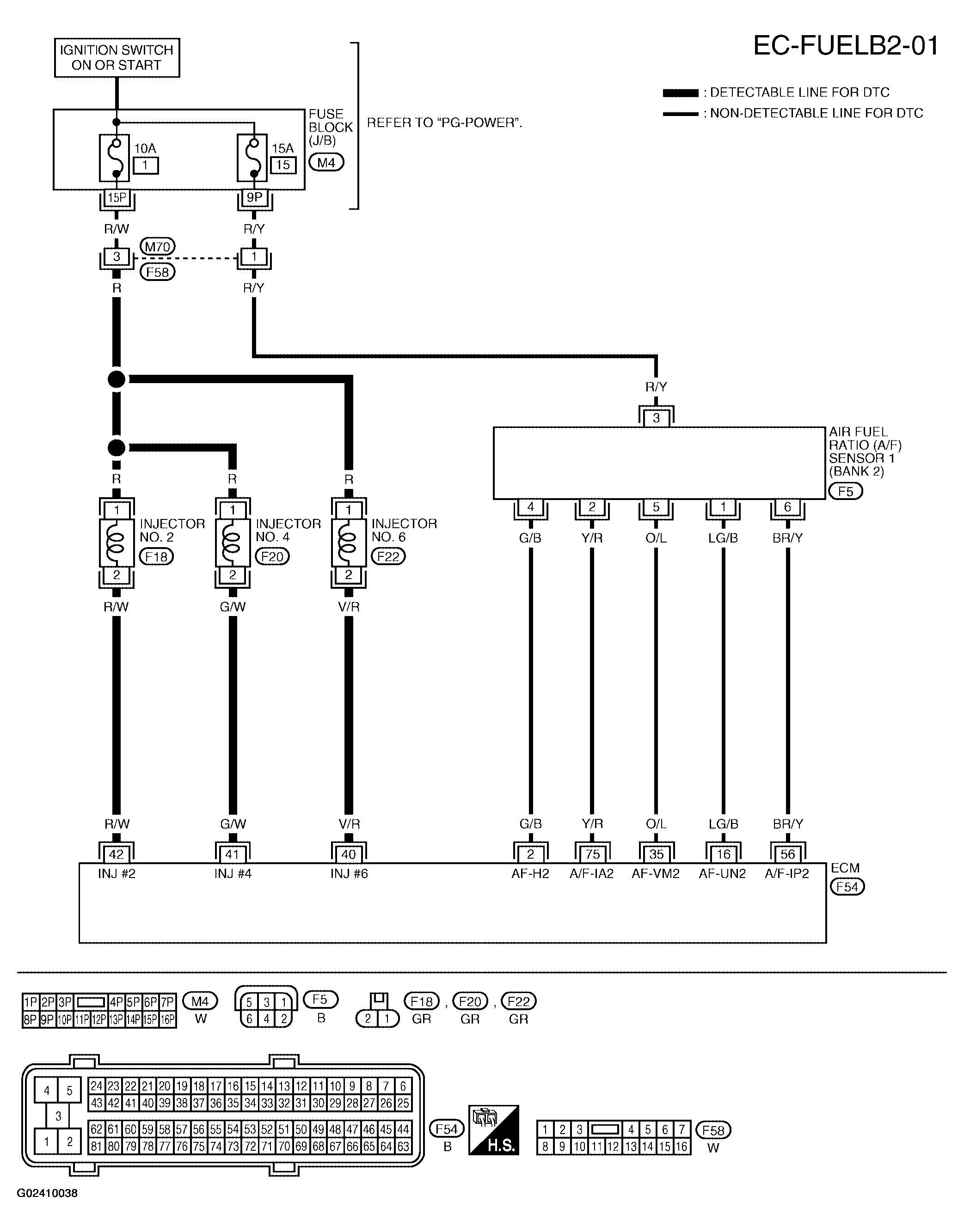

Fig 1: Wiring Diagram - (EC-FUELB2-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
