Consult-II Basic Operation Procedure: Notes

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
Turn ignition switch ON.

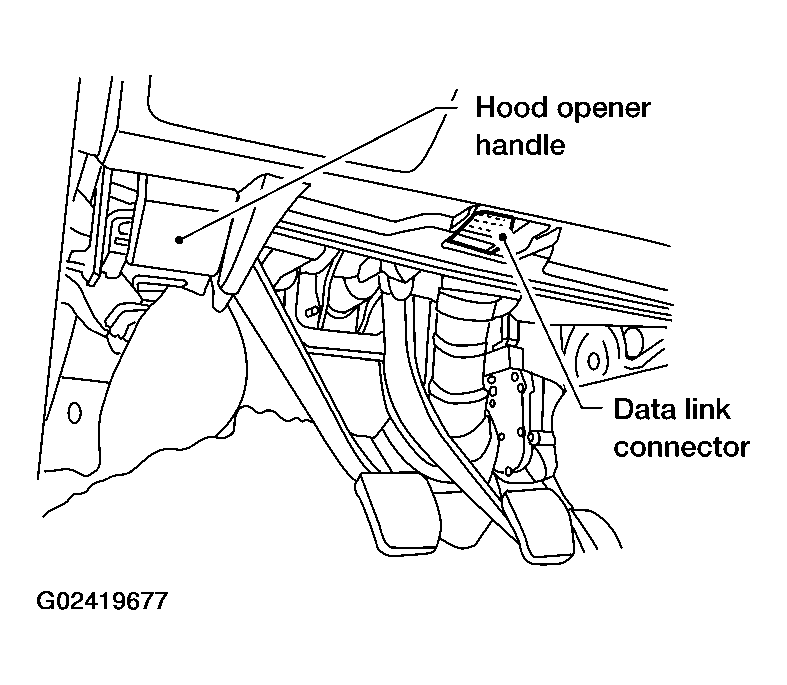

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying "START (NISSAN BASED VHCL)" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS" in the "SELECT SYSTEM" screen.
If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Displaying "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the required diagnostic location from the "SELECT DIAG MODE" screen.
For further information, see the CONSULT-II Operation Manual.

Fig 4: Displaying "SELECT DIAG MODE" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
