Data Monitor

OPERATION PROCEDURE

1. After turning OFF the ignition switch, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
   CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
2. Touch "START (NISSAN BASED VHCL)", "ABS", "DATA MONITOR" in order on the CONSULT-II screen. If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
   CAUTION: When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning on the ignition switch, "ABS" might not be displayed in the system selection screen. In this case, repeat the operation from step 2.
3. Return to the Monitor Item Selection screen, and touch "C/U INPUT ITEM", "MAIN ITEM" or "ITEM MENU SELECTION". Refer to the following information.
4. When "START" is touched, the data monitor screen is displayed.

DISPLAY ITEM LIST

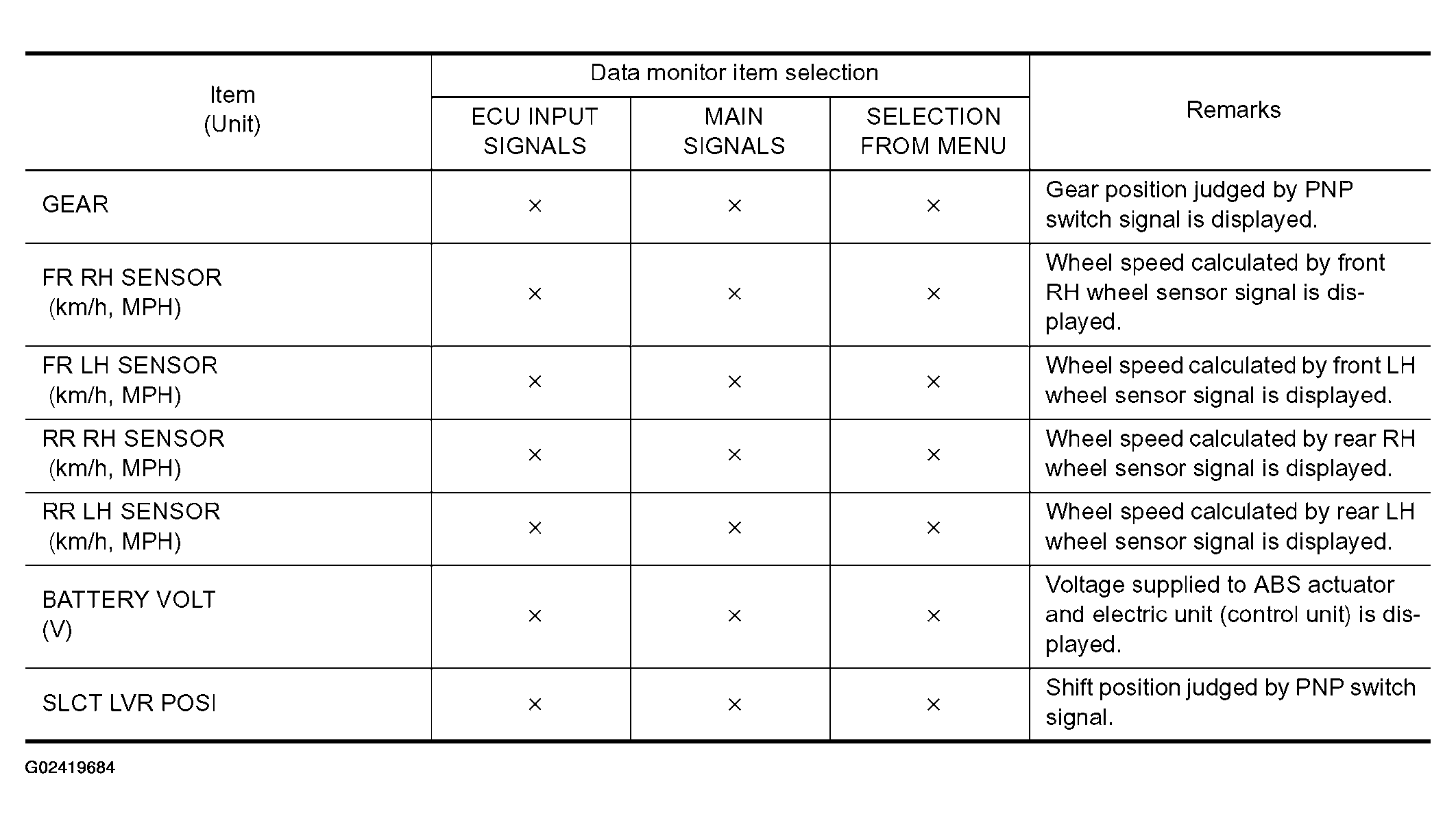

Fig 1: Display Item List (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

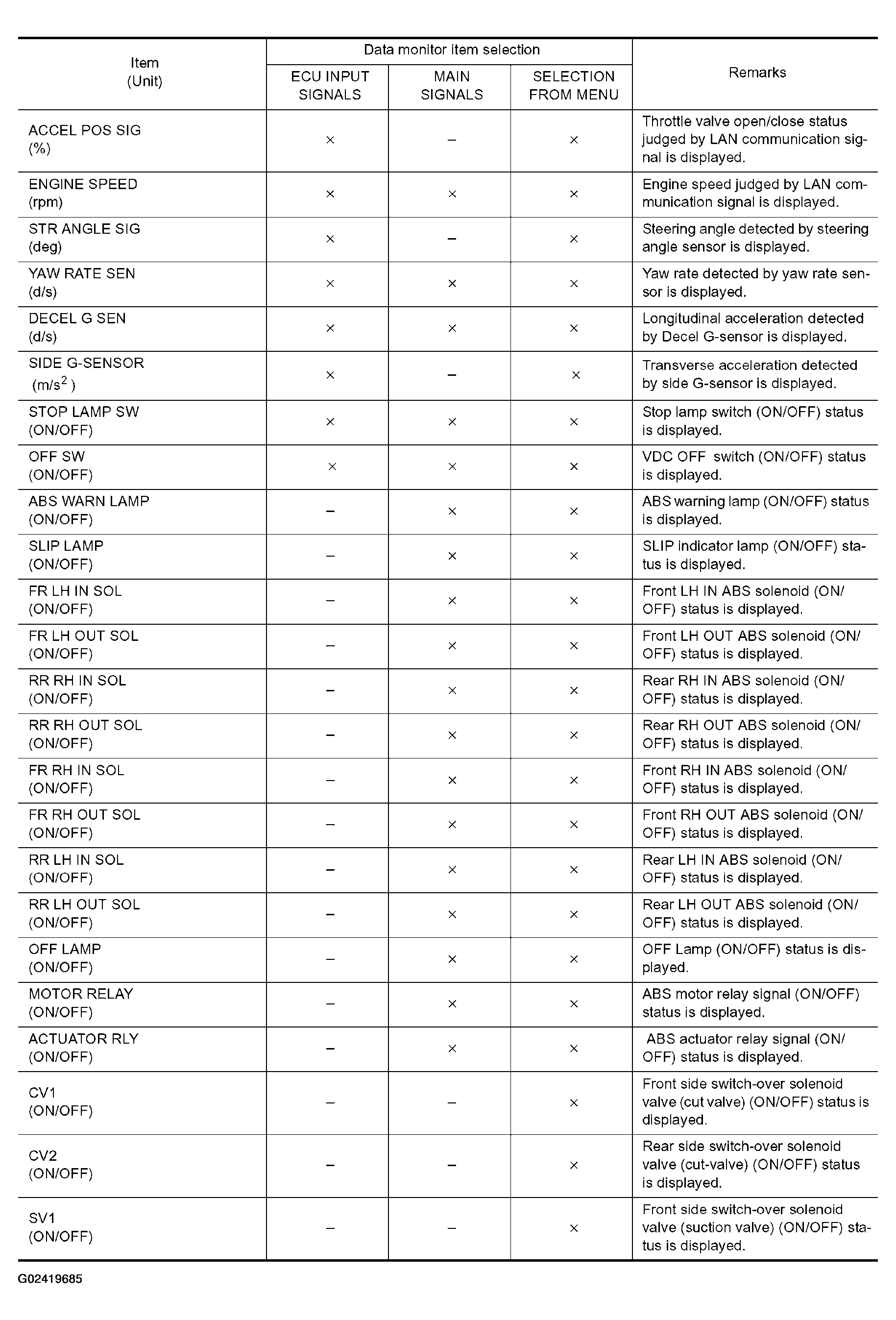

Fig 2: Display Item List (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

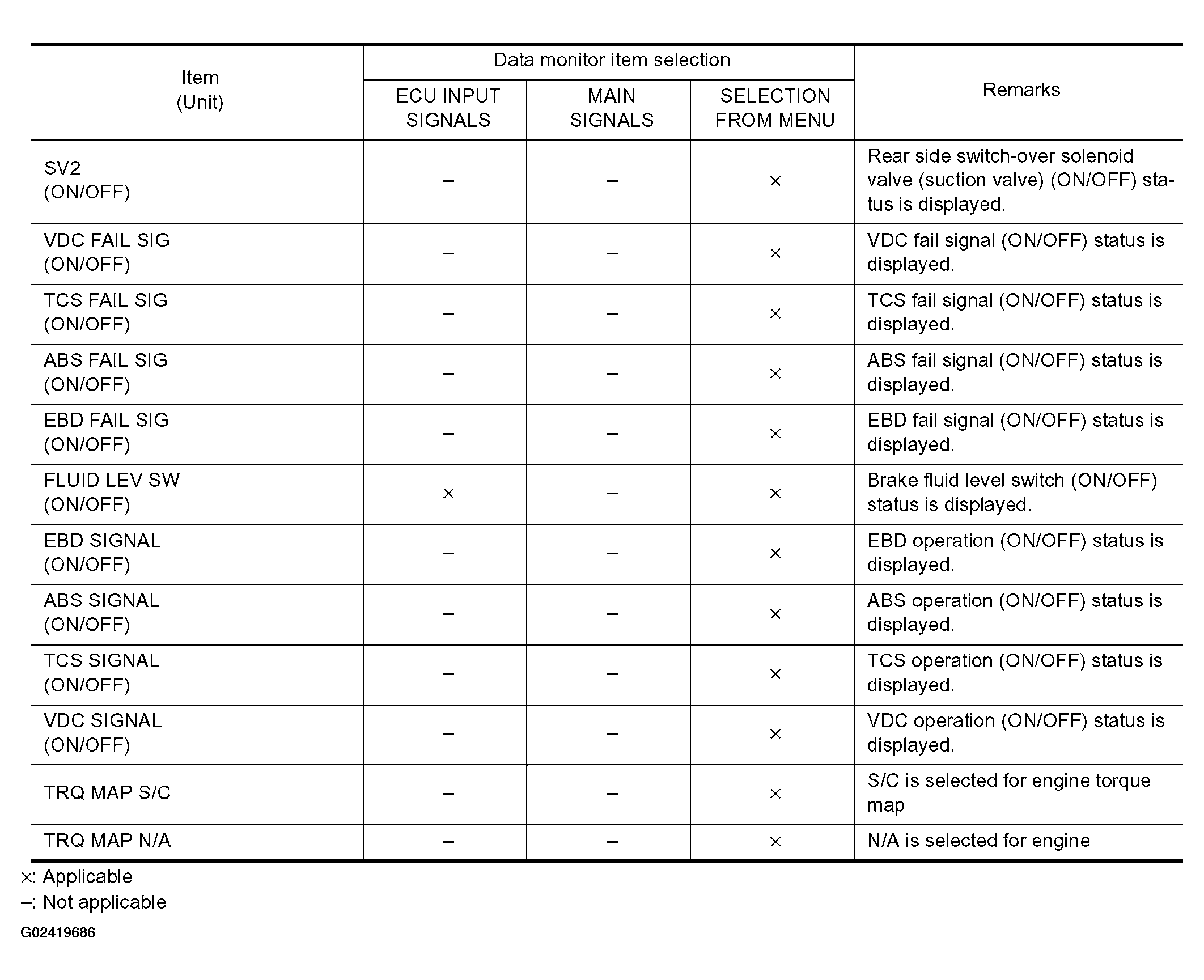

Fig 3: Display Item List (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
