Removal And Installation: Removal

  1. Remove center console. Refer to CENTER CONSOLE .
  2. Disconnect harness connector.
  3. Remove attaching nuts and remove yaw rate/side/decel G sensor.
CAUTION:
  • Do not drop or strike the yaw rate/side/decel G sensor.
  • Do not use power tools to remove or install yaw rate/side/decel G sensor.

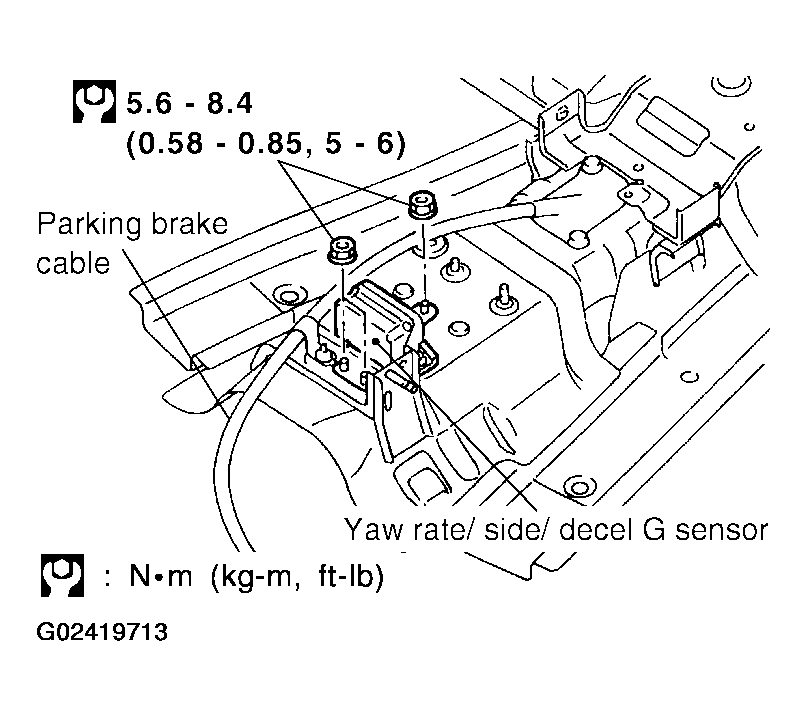

    Fig 1: Removing Attaching Nuts
    G02419713Courtesy of NISSAN MOTOR CO., U.S.A.
