Trouble Diagnosis: Schematic

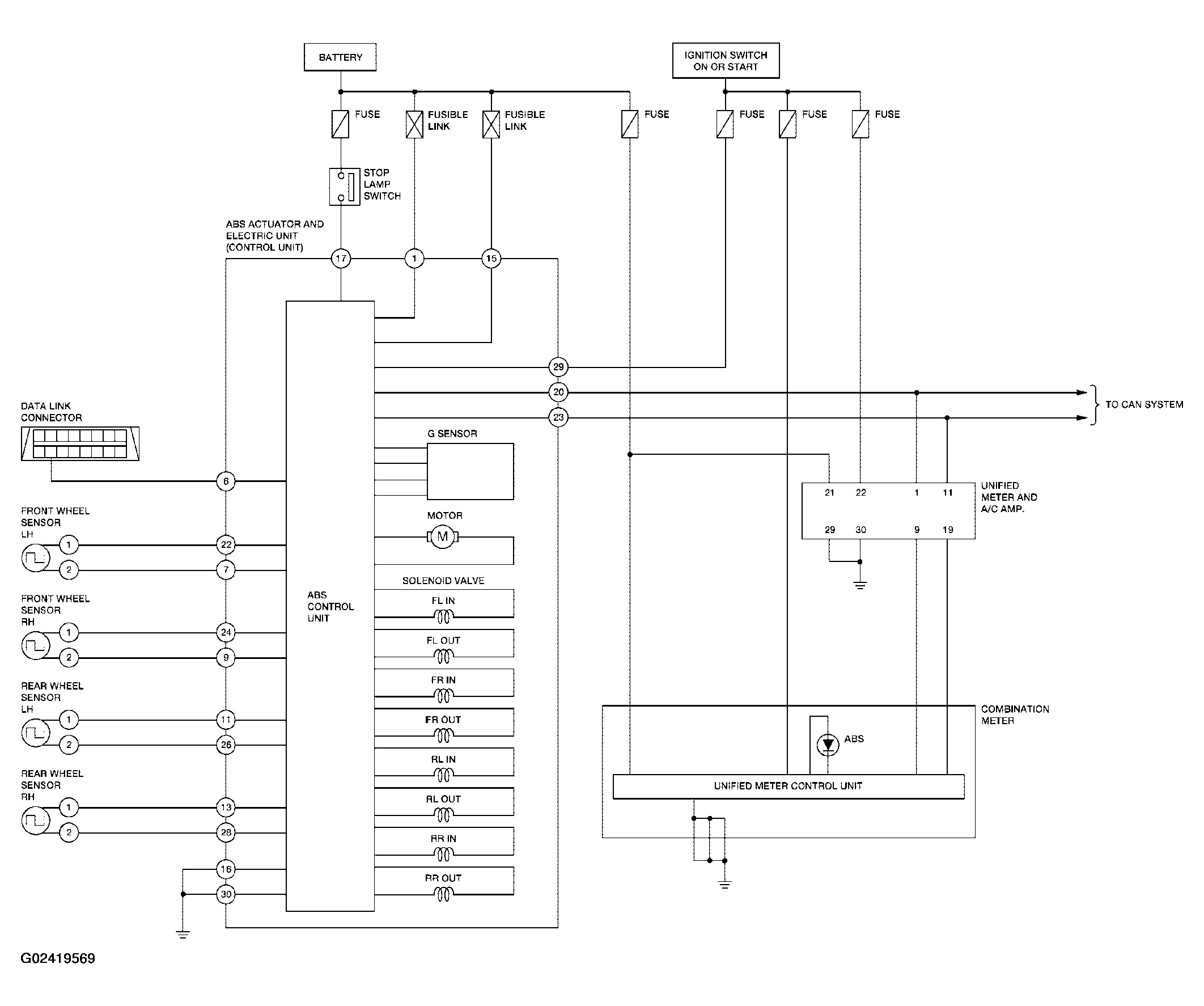

Fig 1: Schematic Diagram

G02419569

Courtesy of NISSAN MOTOR CO., U.S.A.
