Terminal and Reference Value for BCM

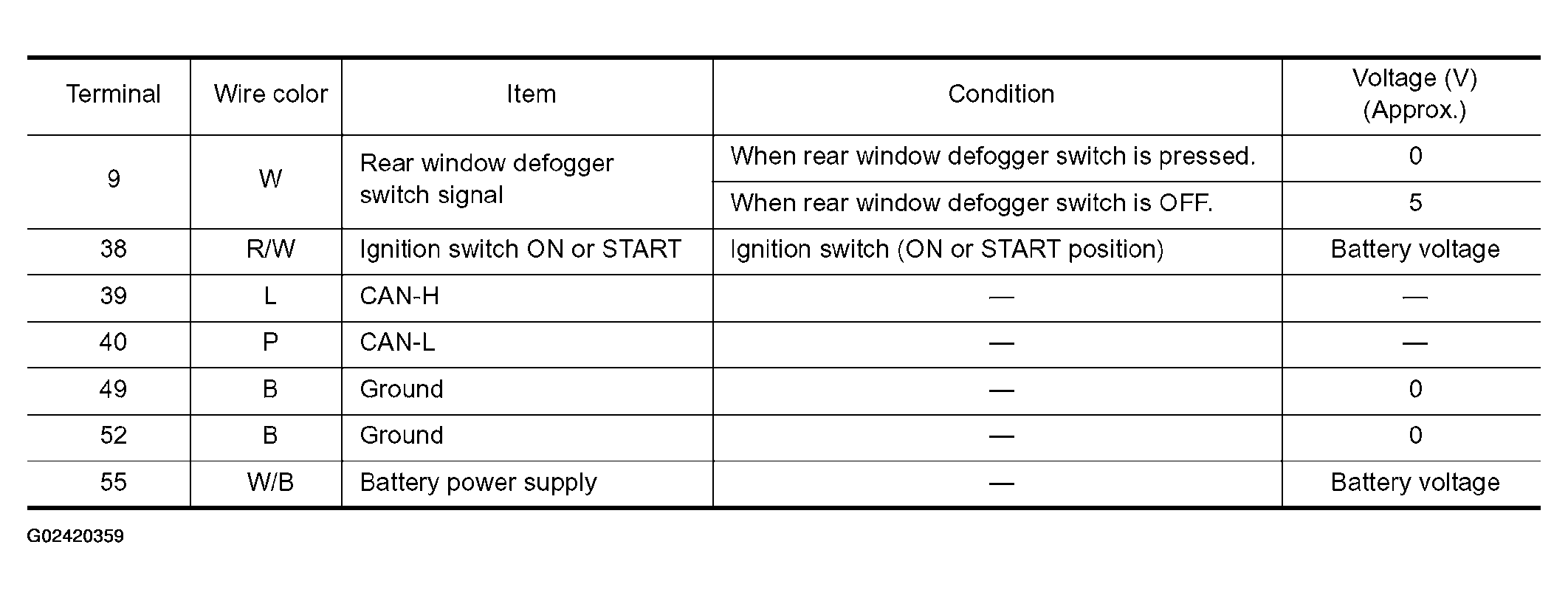

Fig 1: BCM Terminal & Reference Value Chart

G02420359

Courtesy of NISSAN MOTOR CO., U.S.A.
