Consult-II Basic Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

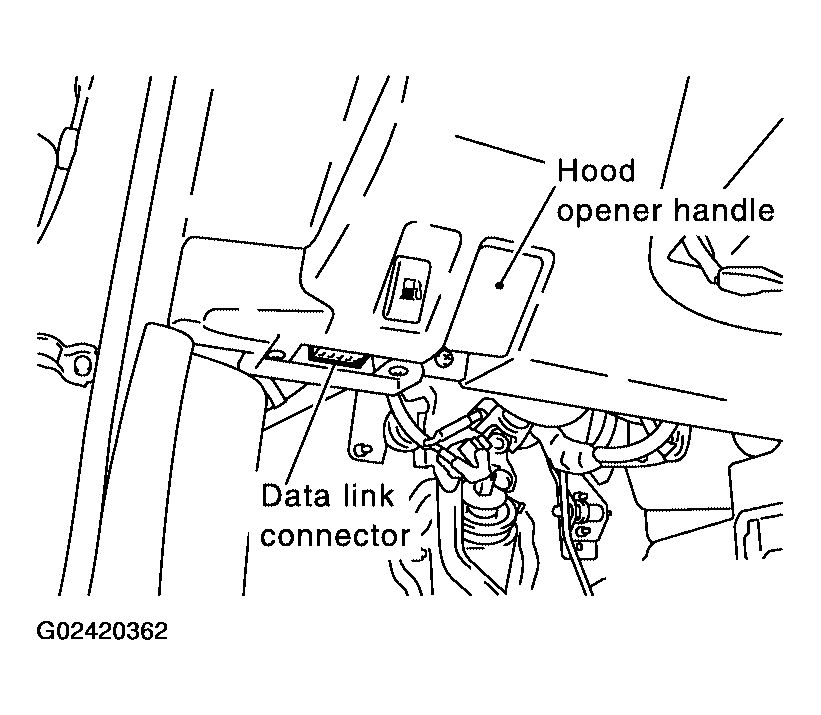

Fig 1: Identifying Data Link Connector & Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

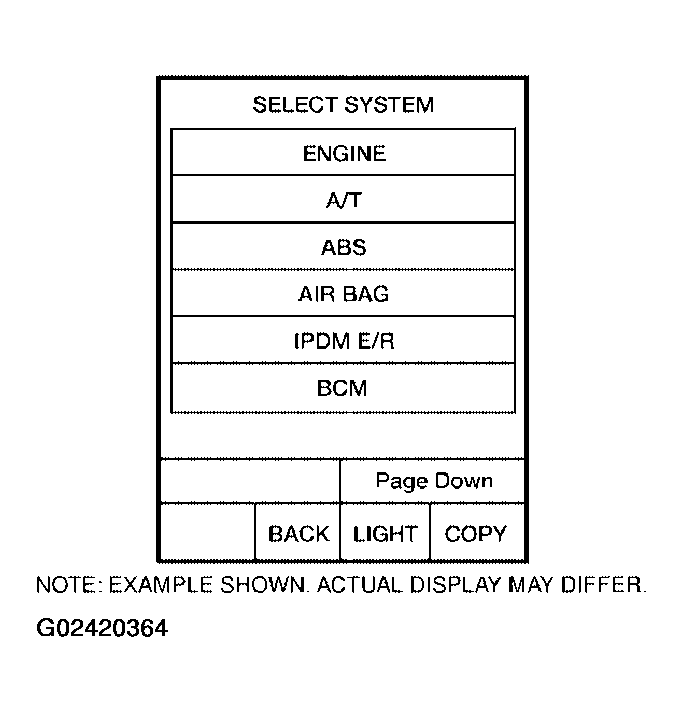

Fig 2: START (NISSAN BASED VHCL) - CONSULT II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: BCM - CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REAR DEFOGGER".

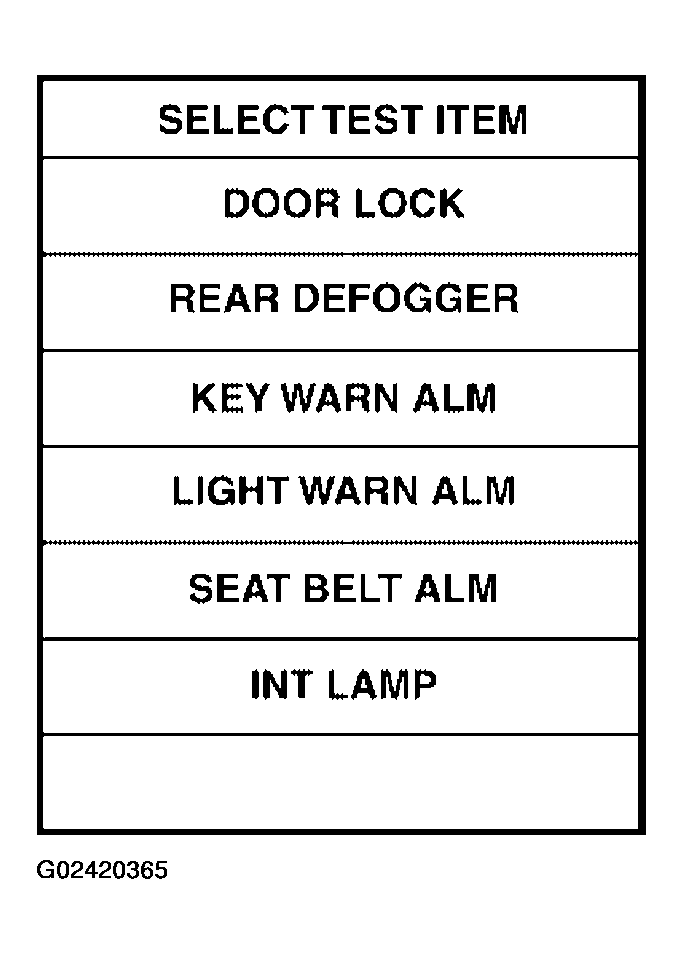

Fig 4: REAR DEFOGGER - CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.

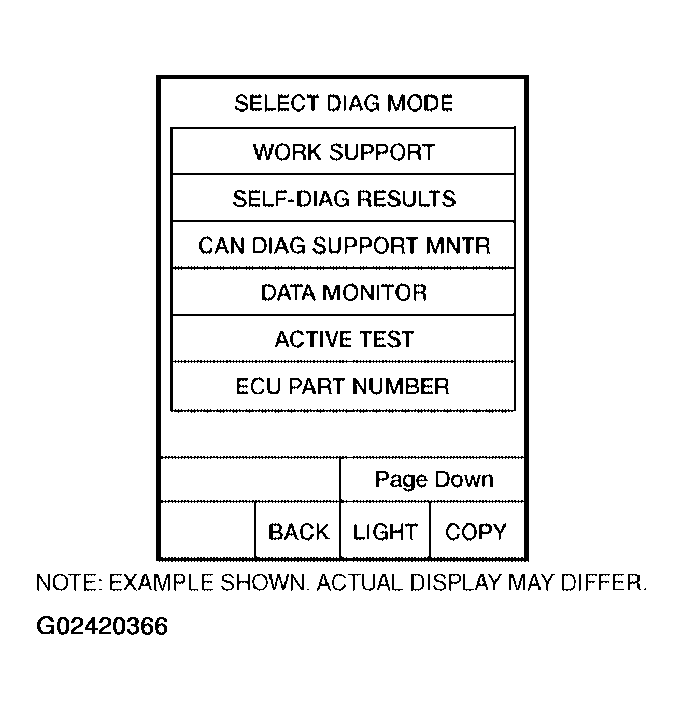

Fig 5: SELECT DIAG MODE - CONSULT-II Display Screen
