Limit Switch Circuit Check Front RH

CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between front power window motor RH connector D104 terminal 4 and ground.

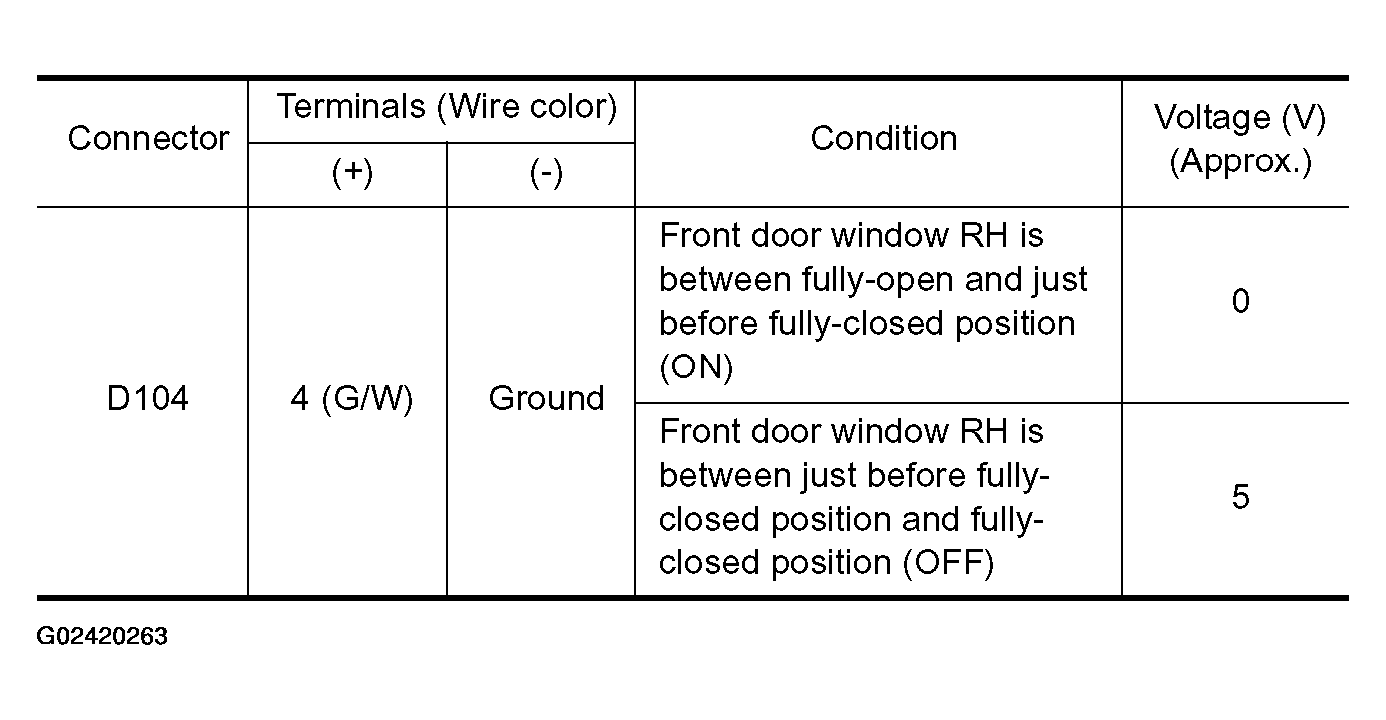

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

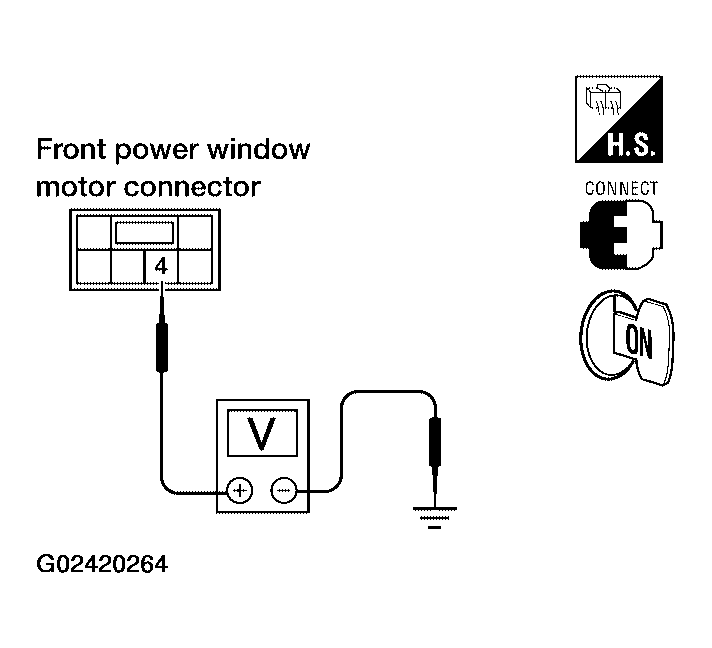

  Fig 2: Checking Front Power Window Motor RH Limit Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Limit switch circuit is OK.
- NG: GO TO 2.
CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH.
3. Check continuity between front power window motor RH connector D104 terminal 3 and ground.
  3 (W/B) - Ground: Continuity should exist.
OK or NG
- OK: GO TO 4.
- NG: GO TO 3.

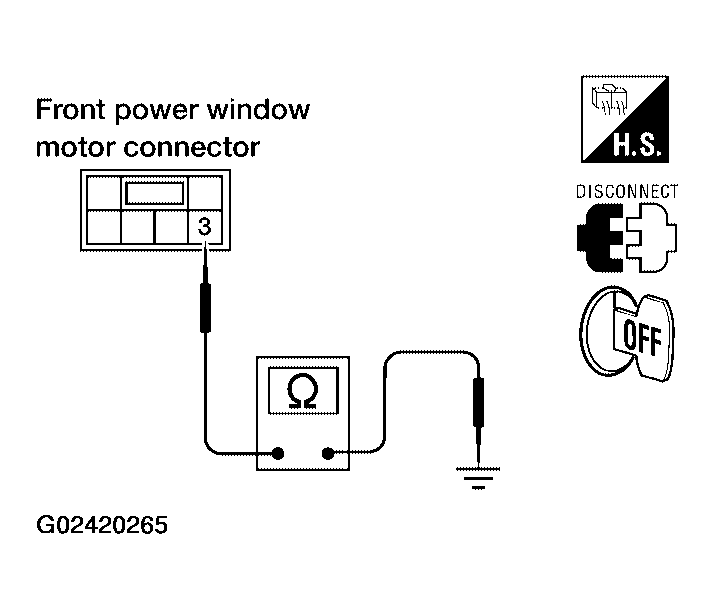

  Fig 3: Checking Limit Switch Ground Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect power window and door lock/unlock switch RH.
2. Check continuity between front power window motor RH connector D104 terminal 3 and power window and door lock/unlock switch RH connector D105 terminal 3.
  3 (W/B) - 3 (W/B): Continuity should exist.
OK or NG
- OK: Replace power window and door lock/unlock switch RH.
- NG: Repair or replace harness.

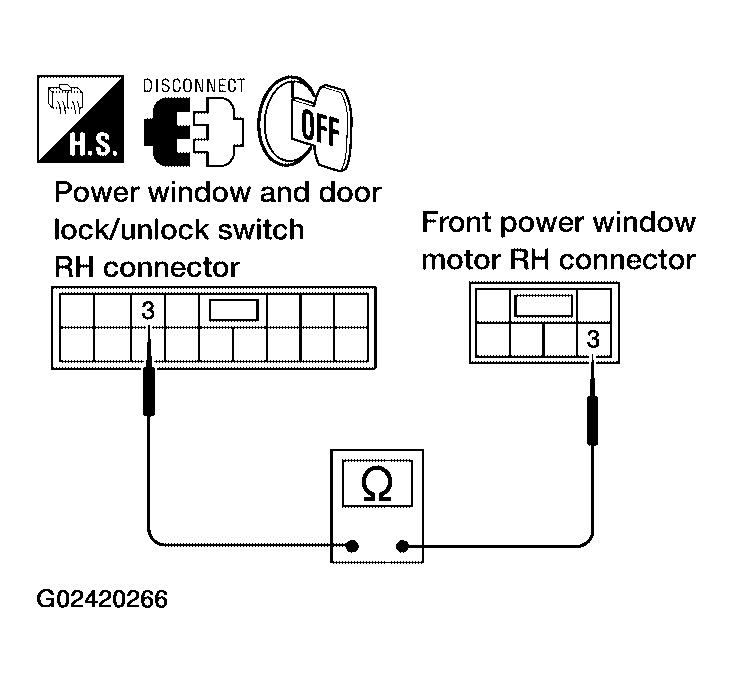

  Fig 4: Checking Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window and door lock/unlock switch RH connector D105 terminal 15 and ground.
  15 (G/W) - Ground: Approx. 5V
OK or NG
- OK: GO TO 5.
- NG: Replace power window and door lock/unlock switch RH.

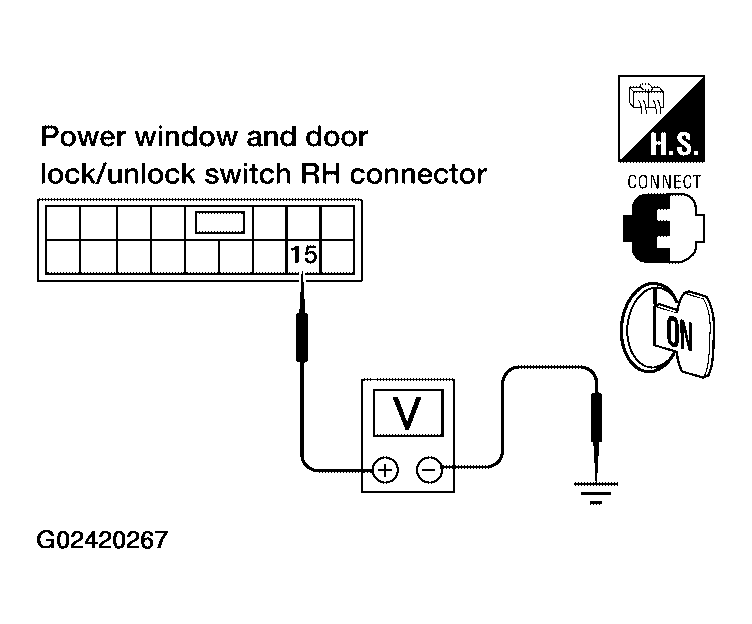

  Fig 5: Checking Power Window & Door Lock/Unlock Switch RH Output Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 15 and front power window motor RH connector D104 terminal 4.
  15 (G/W) - 4 (G/W): Continuity should exist.
OK or NG
- OK: GO TO 6.
- NG: Repair or replace harness.

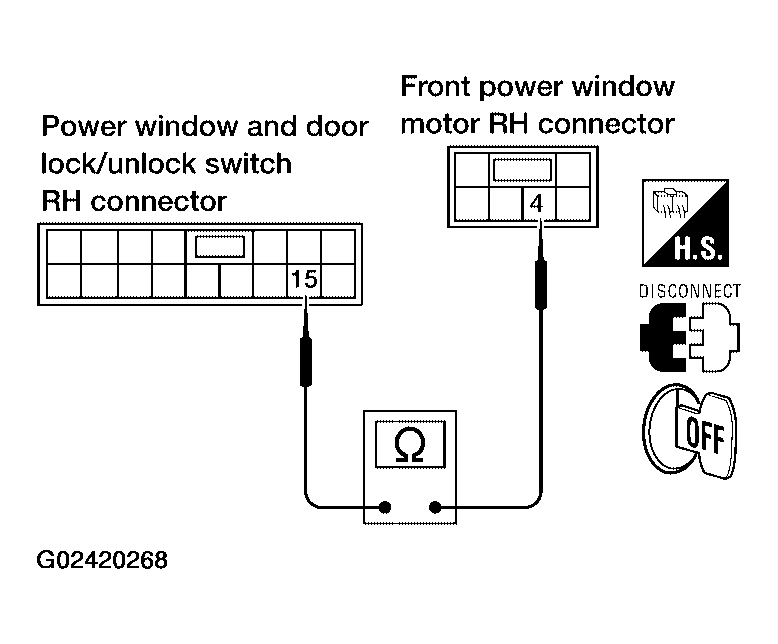

  Fig 6: Checking Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK LIMIT SWITCH
1. Connect front power window motor RH and power window and door lock/unlock switch RH connector.
2. Turn ignition switch ON.
3. Check continuity between front power window motor RH connector D104 terminal 3 and 4.

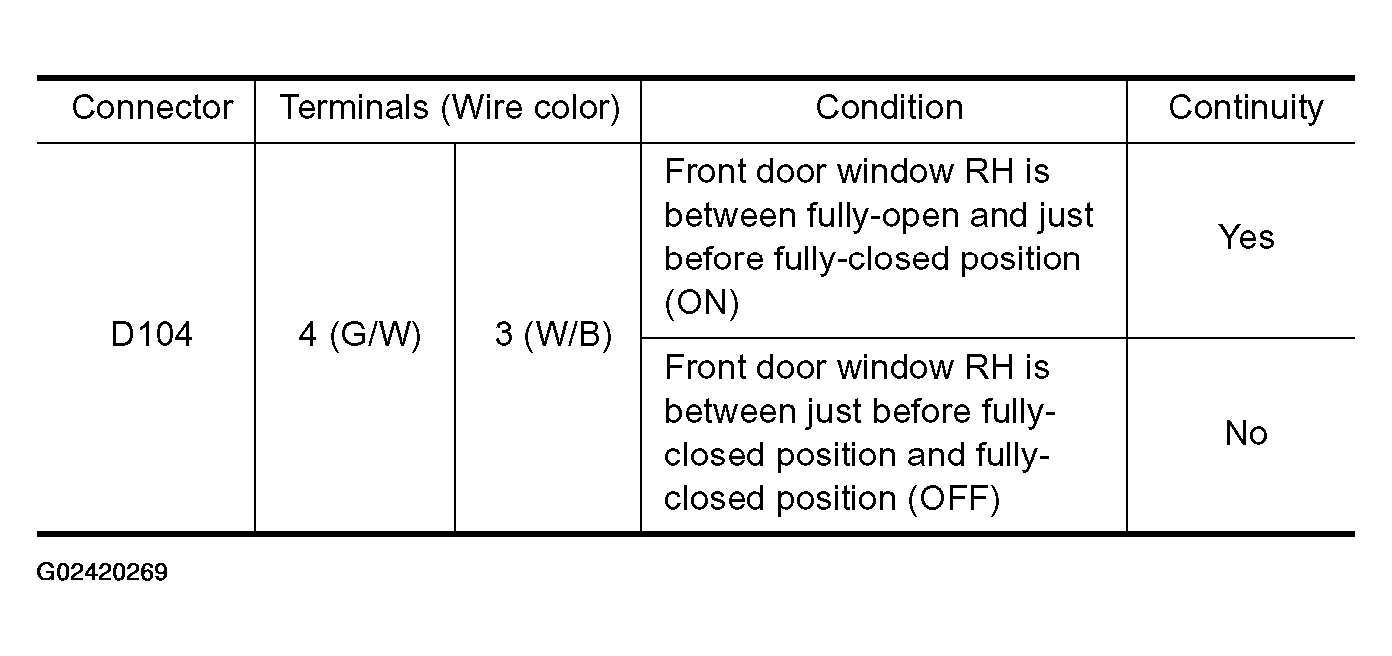

  Fig 7: Terminals Continuity Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

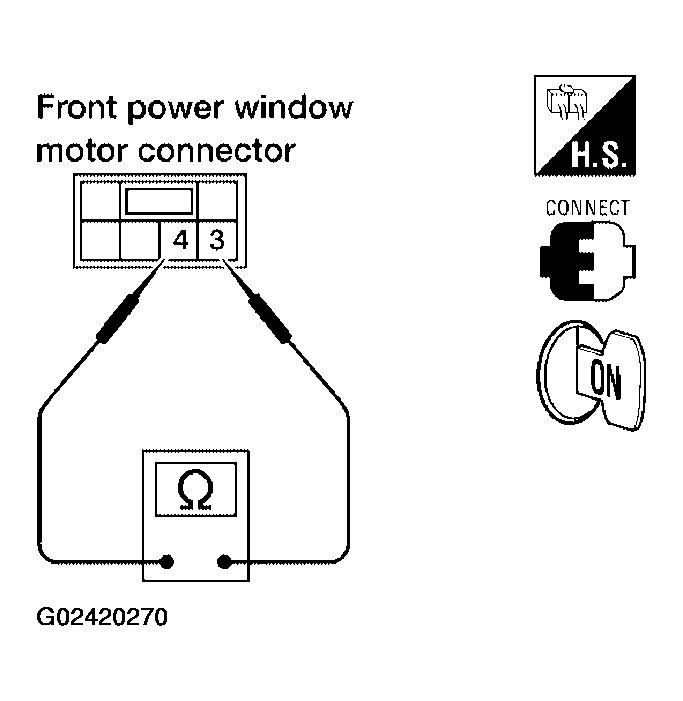

  Fig 8: Checking Limit Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Repair or replace harness.
- NG: Replace front power window motor RH. Refer to FRONT DOOR GLASS AND REGULATOR .
