Front Power Window Motor RH Circuit Check

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window and door lock/unlock switch RH connector D105 terminal 8, 9 and ground.

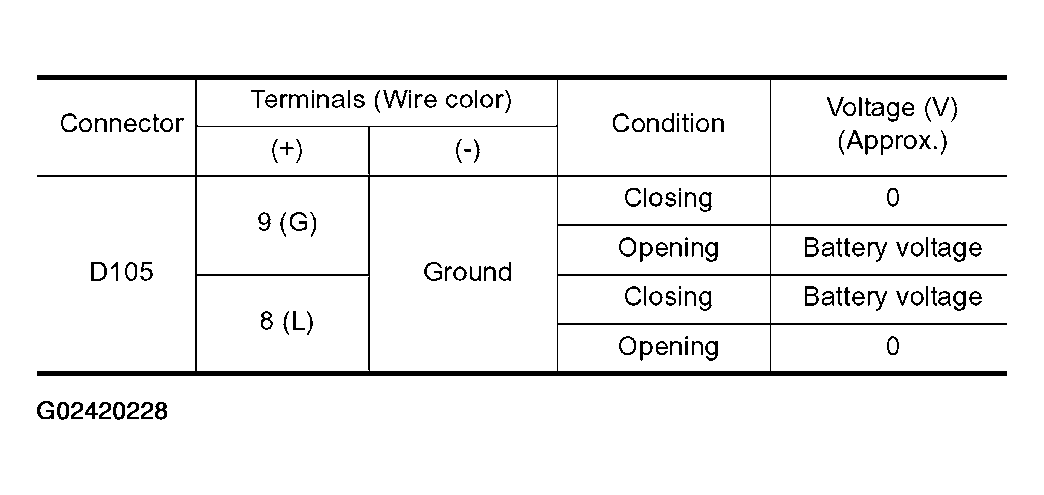

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

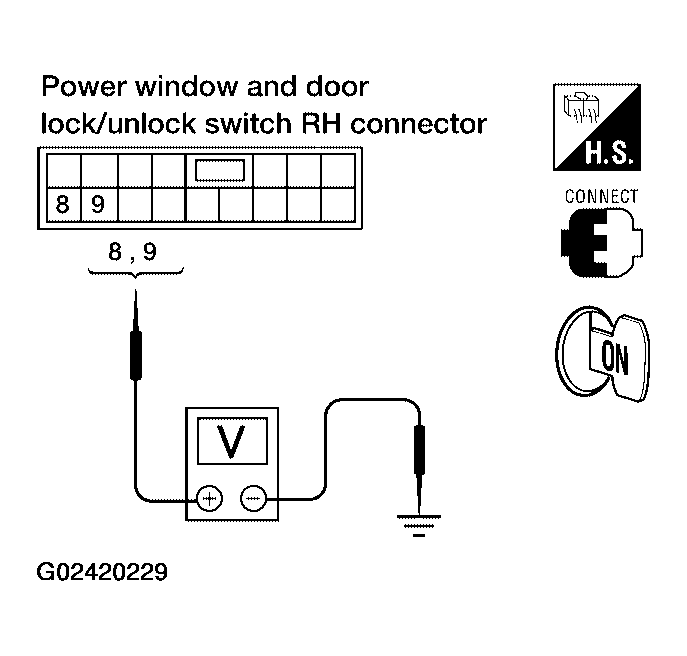

  Fig 2: Checking Power Window & Door Lock/Unlock Switch RH Output Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2
- NG: Replace power window and door lock/unlock switch RH.
CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
3. Check continuity between front power window switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 2.
  8 (L) - 1 (L): Continuity should exist.

  9 (G) - 2 (G): Continuity should exist.
OK or NG
- OK: Replace front power window motor RH. Refer to FRONT DOOR GLASS AND REGULATOR .
- NG: Repair or replace harness.

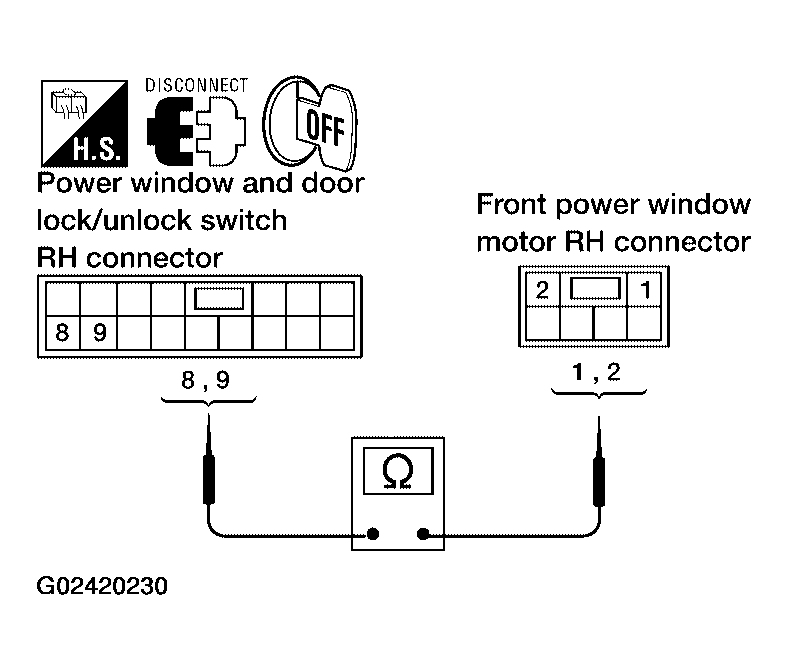

  Fig 3: Checking Front Power Window Motor RH Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
