Terminals and Reference Value for Display Unit

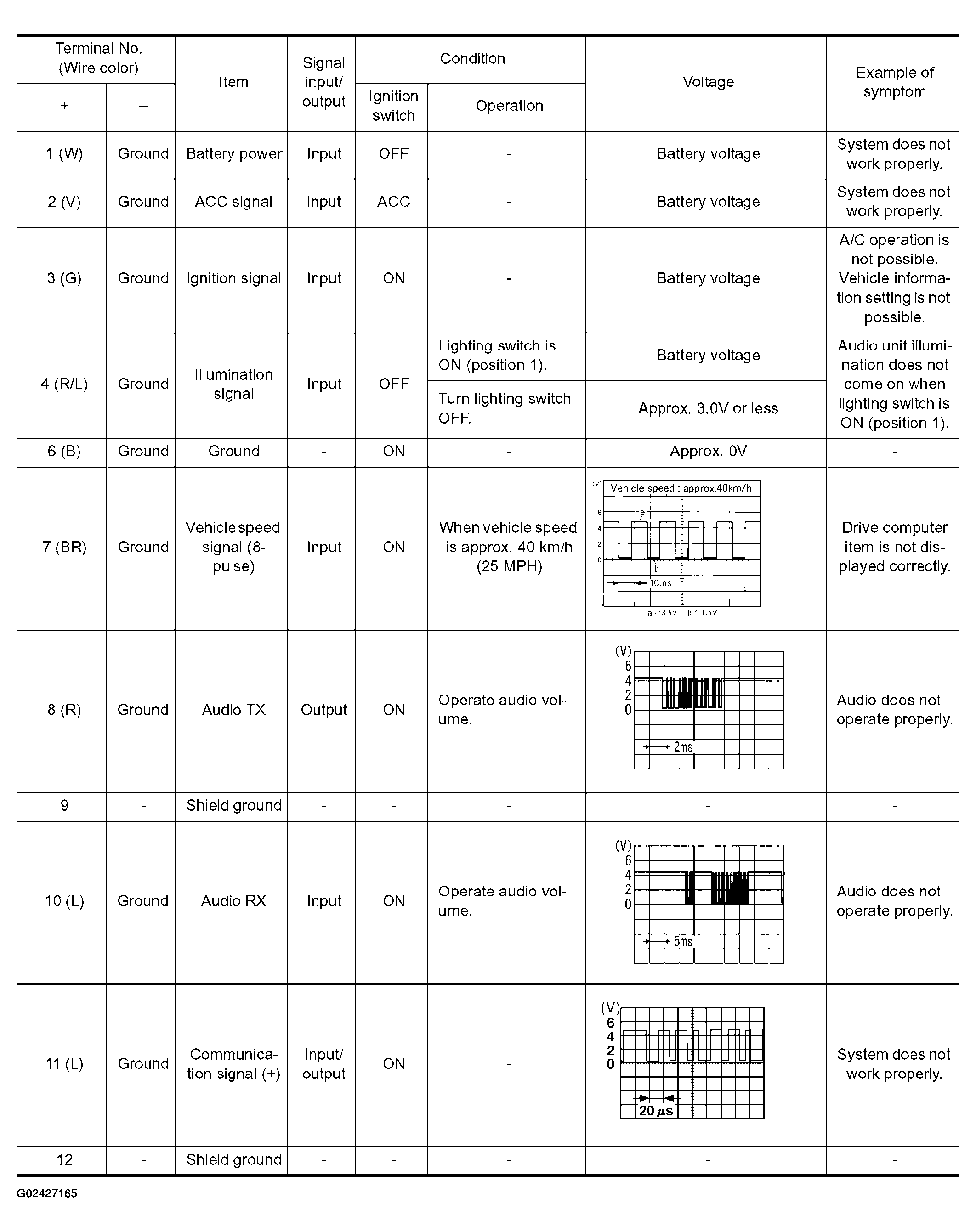

Fig 1: Connector Terminals Voltage Reference Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

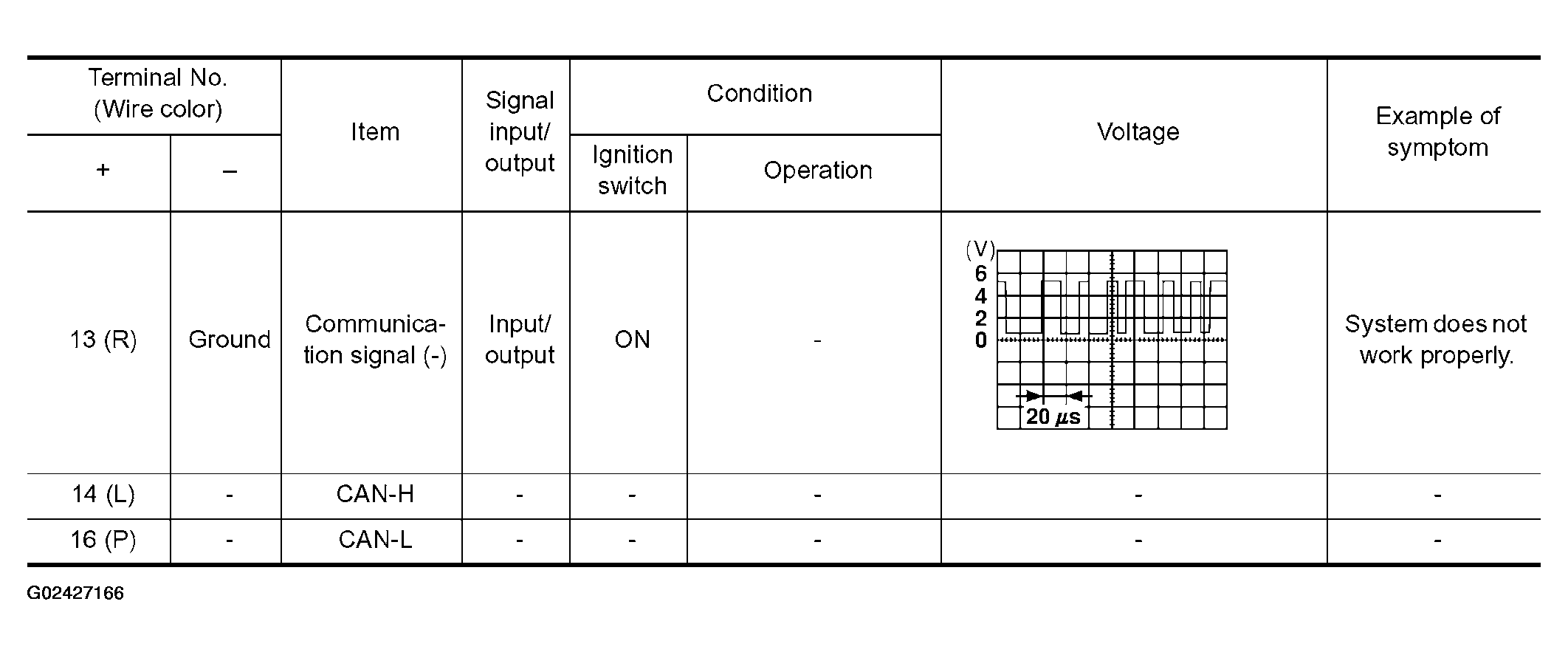

Fig 2: Connector Terminals Voltage Reference Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
