ATF Cooler Valve: Notes

Refer to the figure for ATF cooler valve and hoses removal and installation information.

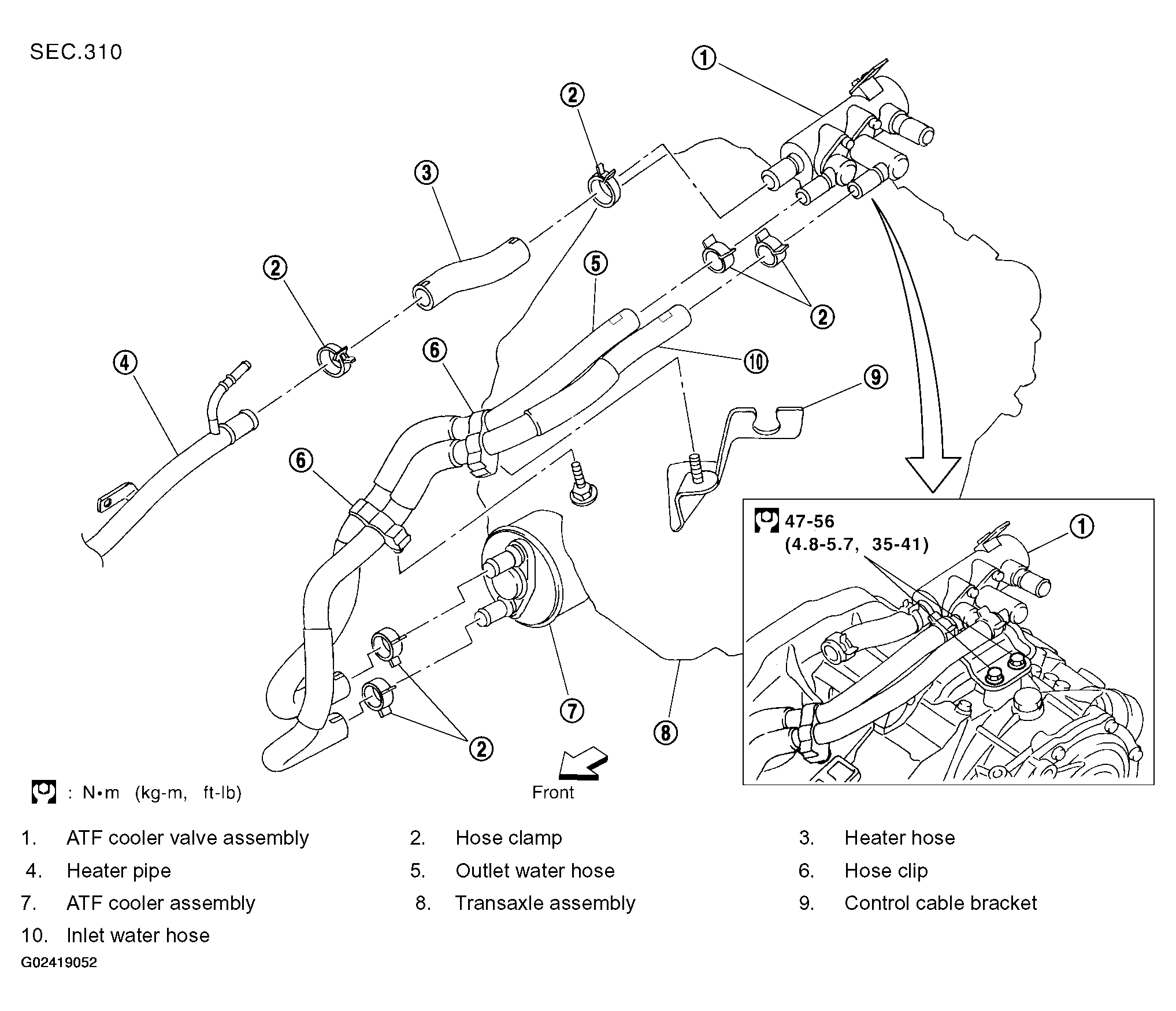

Fig 1: Exploded View Of ATF Cooler Valve

G02419052

Courtesy of NISSAN MOTOR CO., U.S.A.
