A/T Fluid Temperature Sensor

  1. Remove side cover. Refer to SIDE COVER .
  2. Disconnect A/T fluid temperature sensor.
  3. Check resistance between terminals 4 and 8.

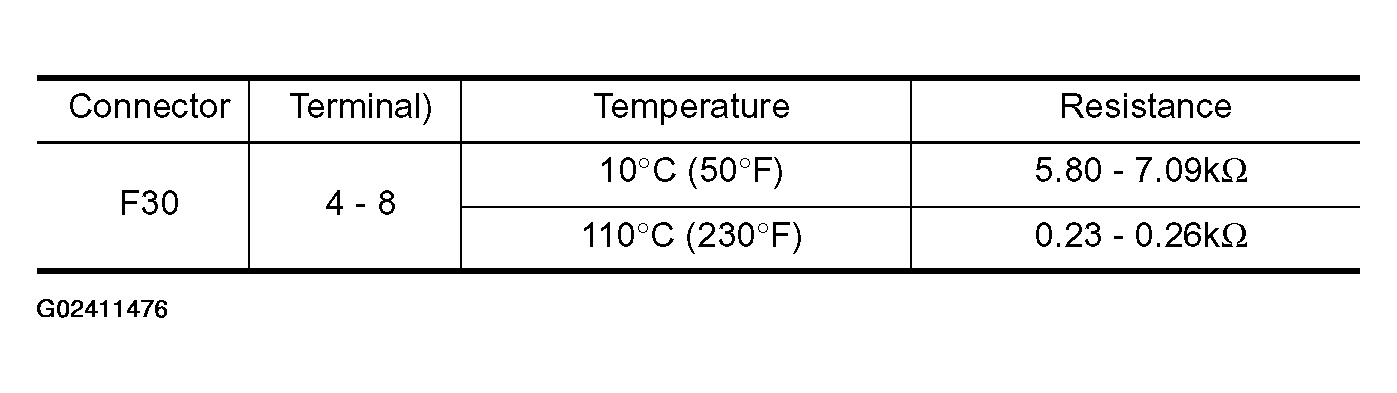

    Fig 1: Connector Resistance Specification Chart
    G02411476Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, repair or replace transmission wire. Refer to TERMINAL CORD ASSEMBLY .

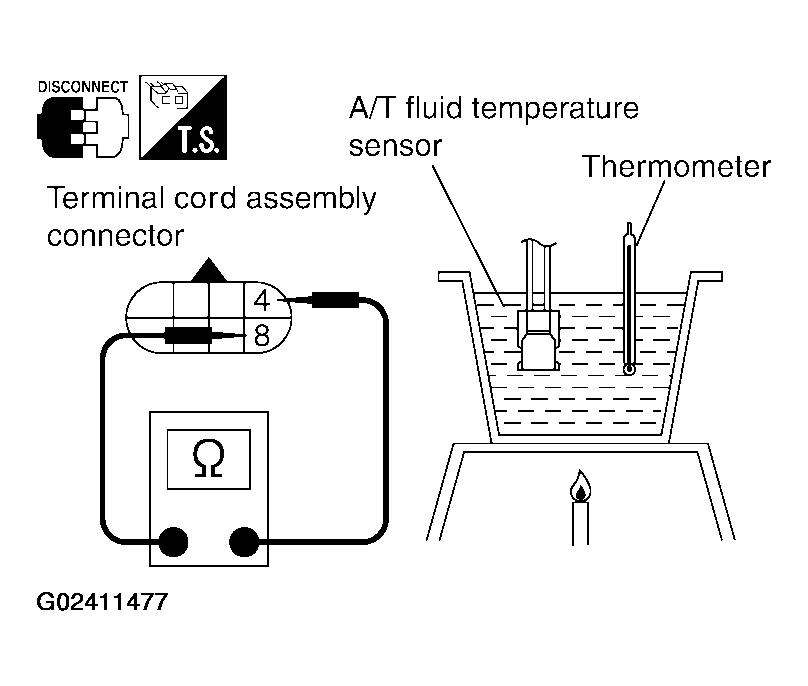

    Fig 2: Checking Resistance Between Terminals
    G02411477Courtesy of NISSAN MOTOR CO., U.S.A.
