Nissan-Datsun
>>
2005
>>
Maxima SE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

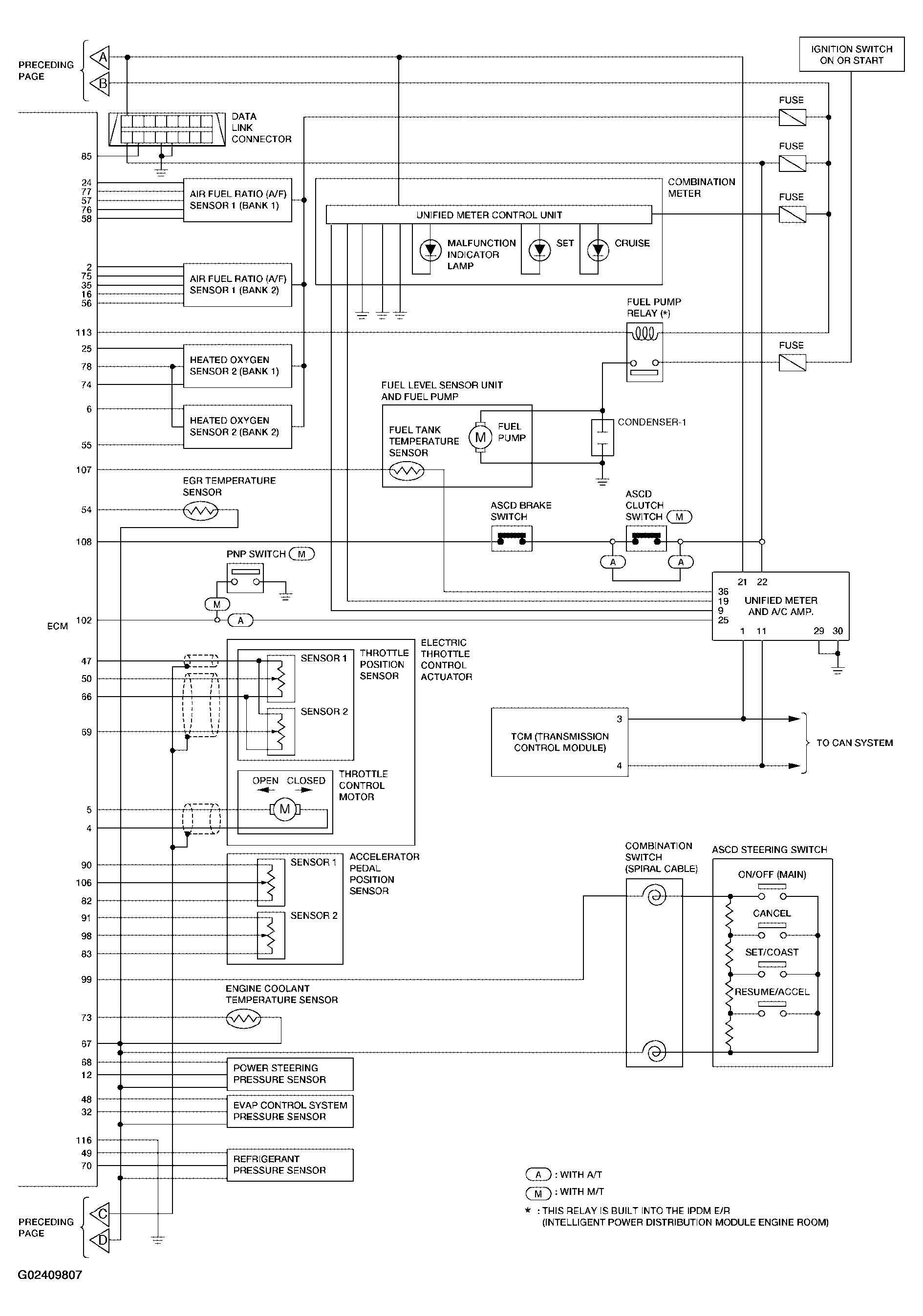

Fig 1: Engine Control Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

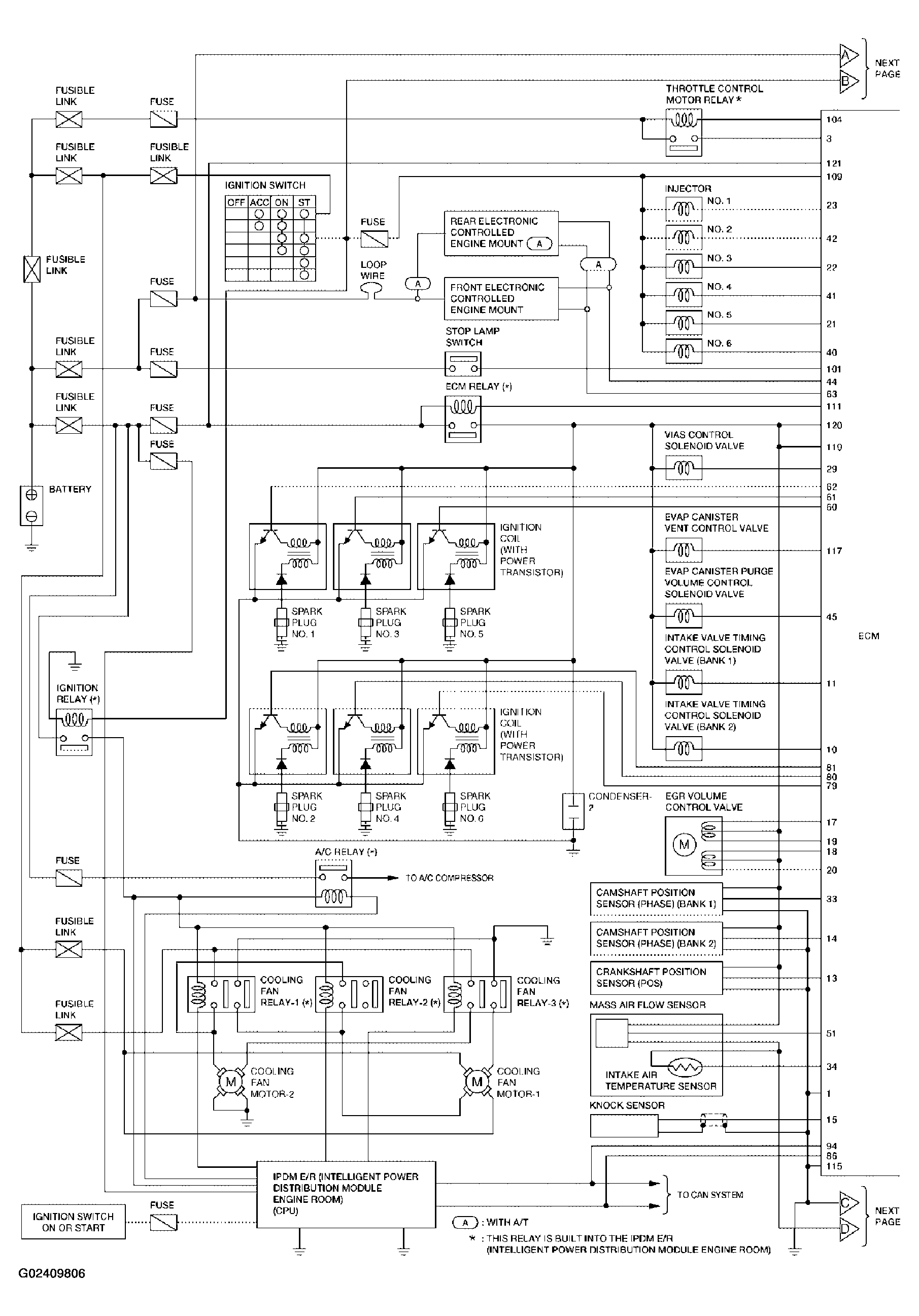

Fig 2: Engine Control Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
