ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

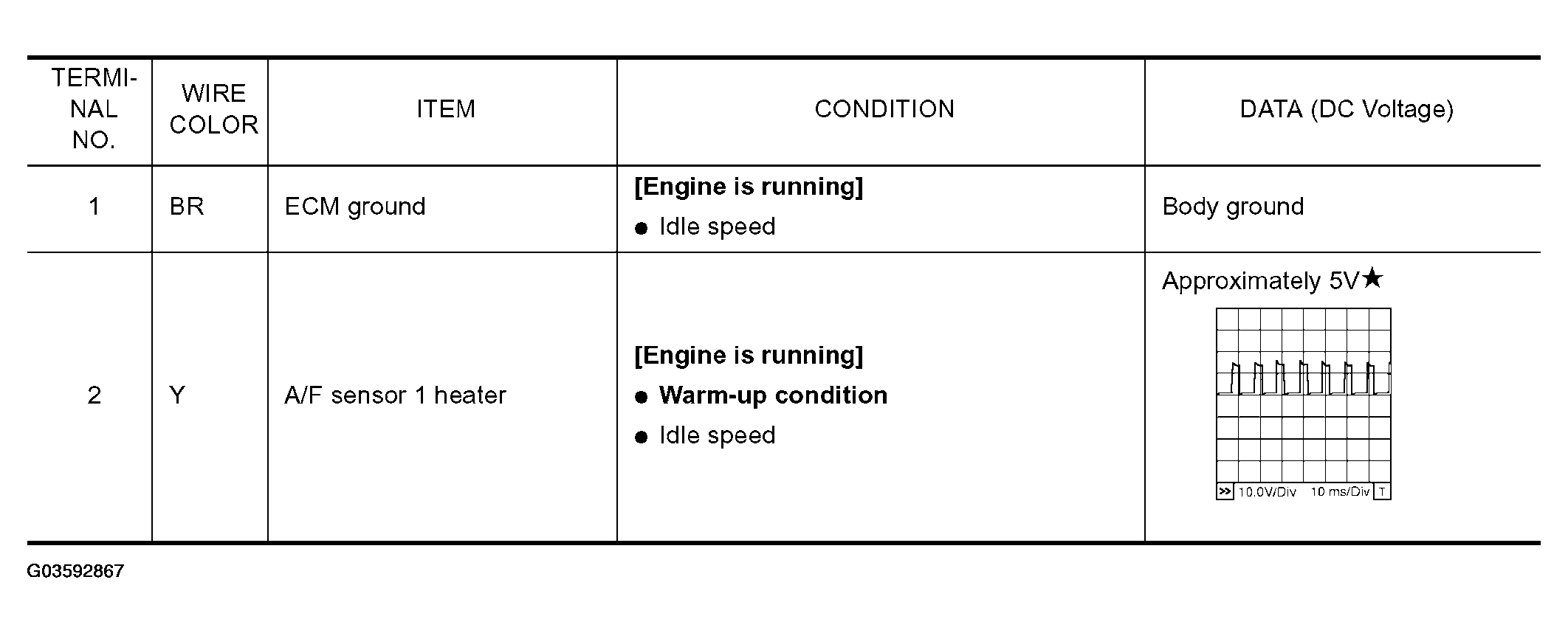

Fig 1: ECM Terminal And Ground Specification Data And Reference Value Chart (1 Of 7)

G03592867

Courtesy of NISSAN MOTOR CO., U.S.A.

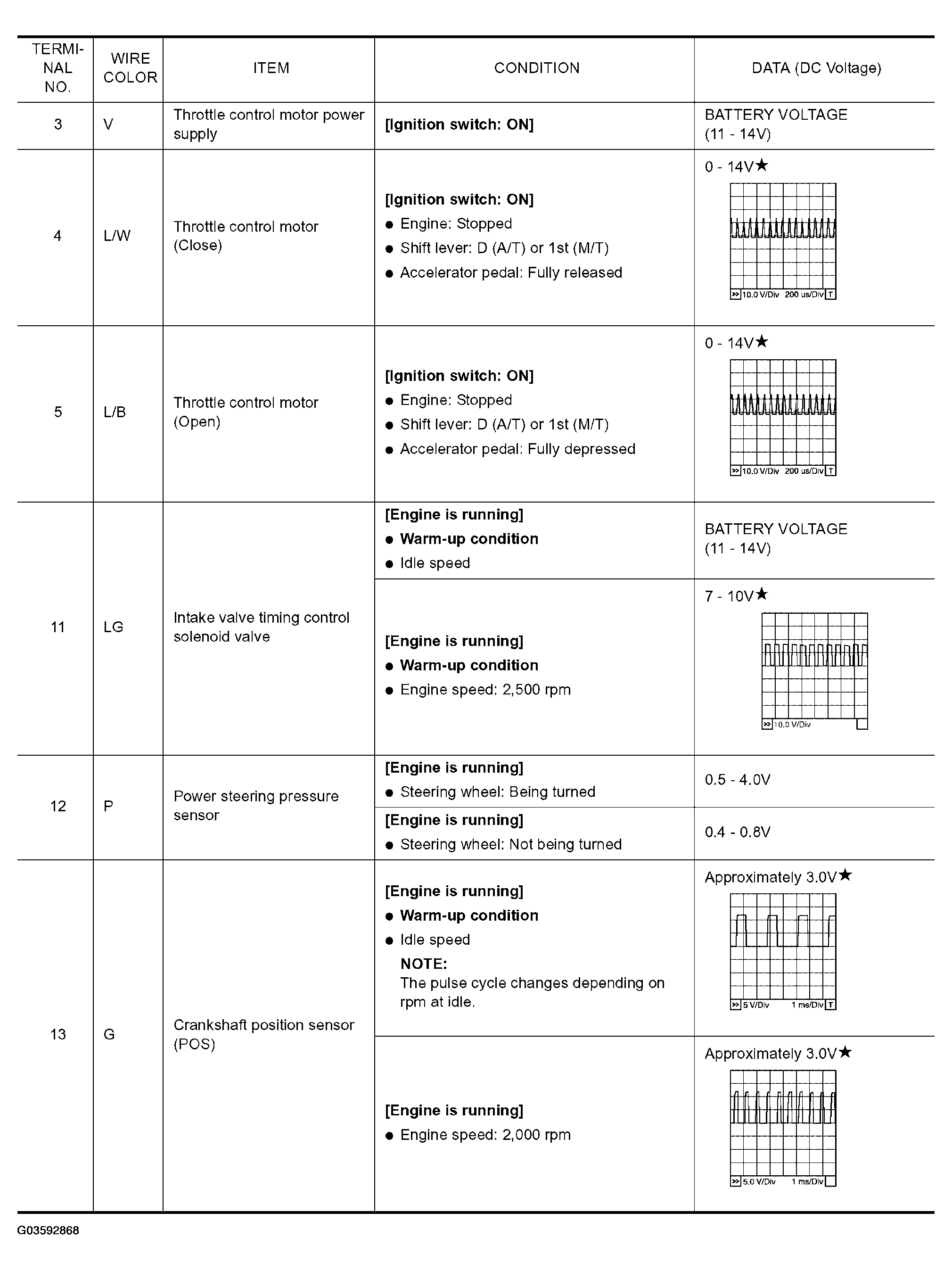

Fig 2: ECM Terminal And Ground Specification Data And Reference Value Chart (2 Of 7)

G03592868

Courtesy of NISSAN MOTOR CO., U.S.A.

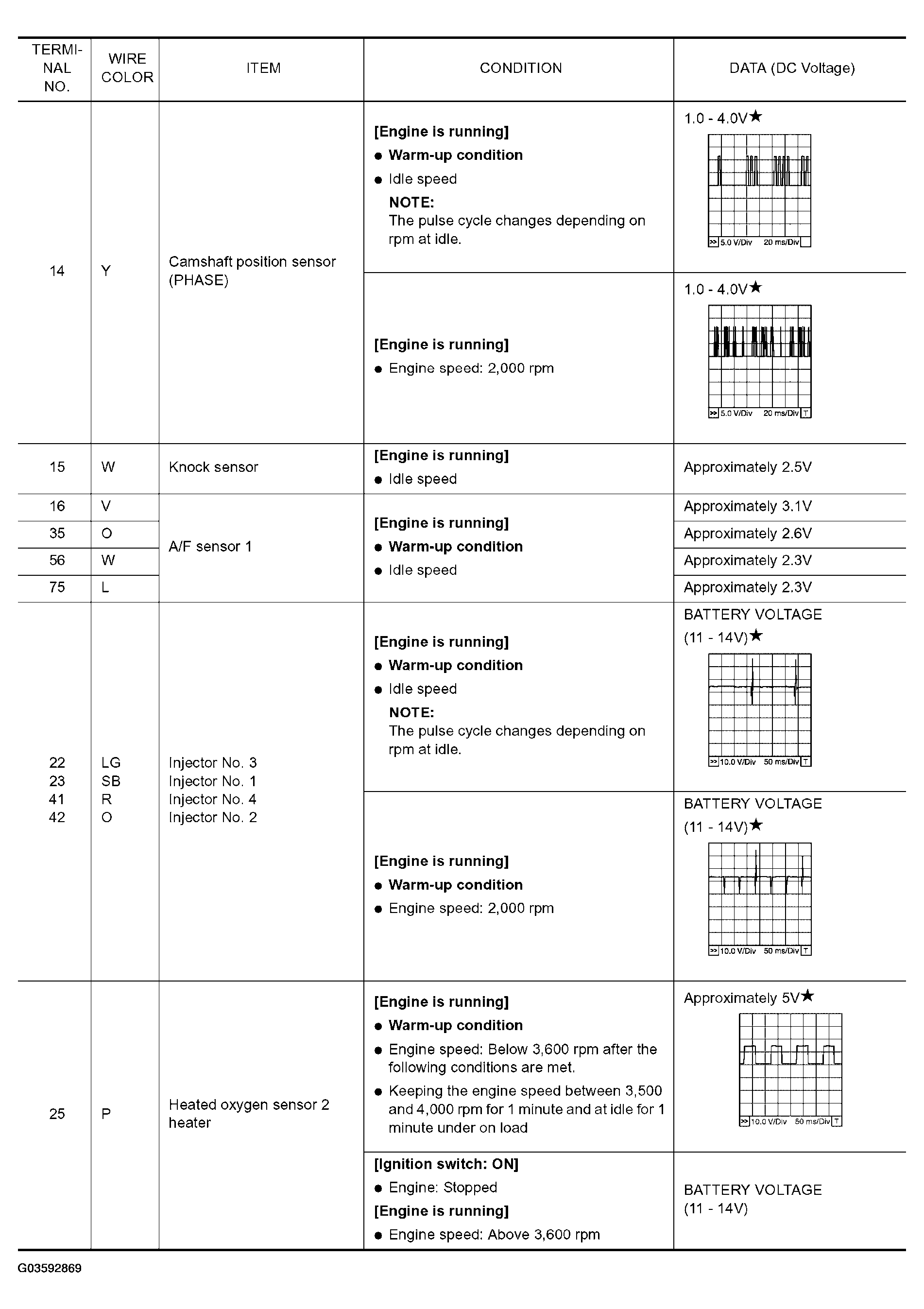

Fig 3: ECM Terminal And Ground Specification Data And Reference Value Chart (3 Of 7)

G03592869

Courtesy of NISSAN MOTOR CO., U.S.A.

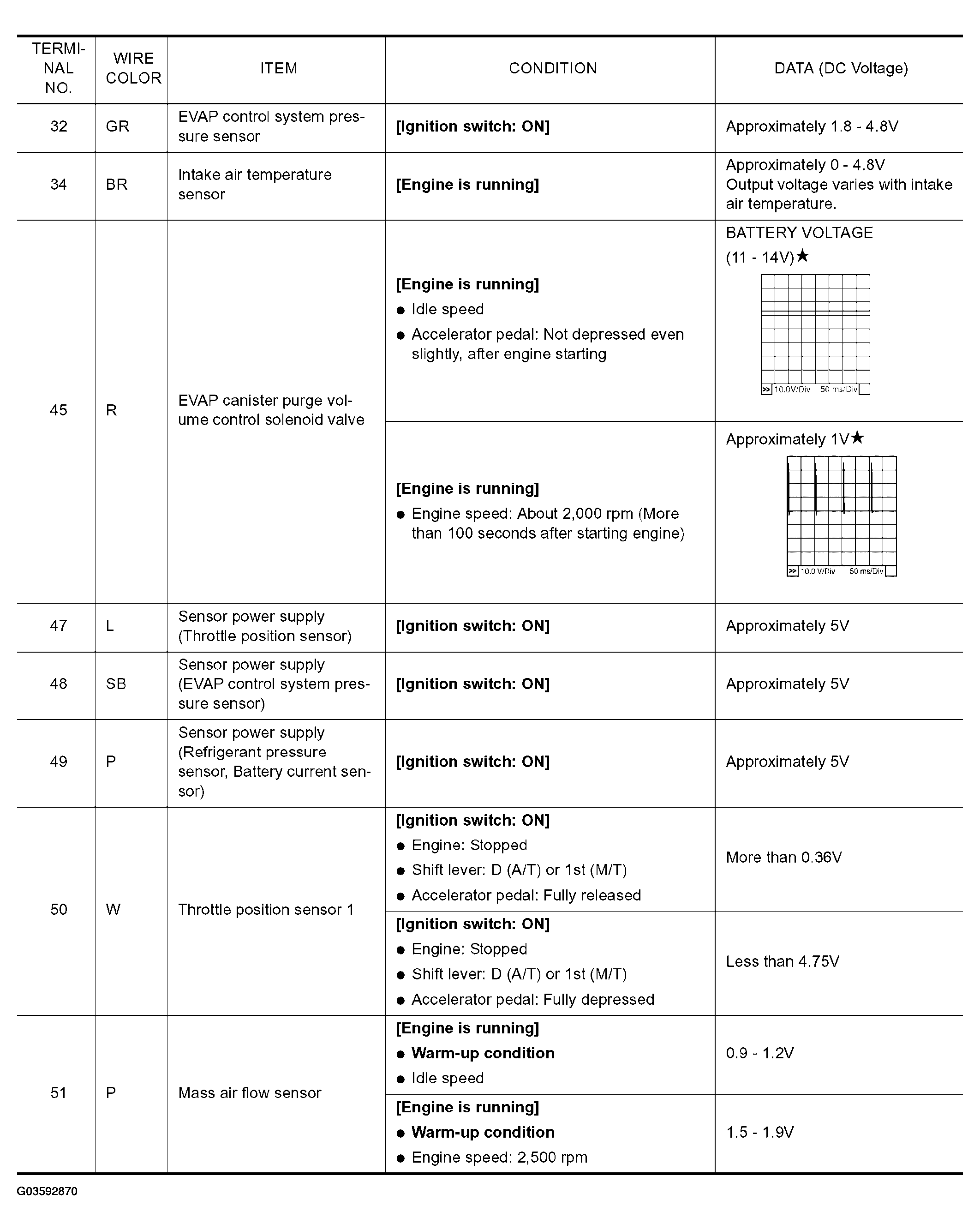

Fig 4: ECM Terminal And Ground Specification Data And Reference Value Chart (4 Of 7)

G03592870

Courtesy of NISSAN MOTOR CO., U.S.A.

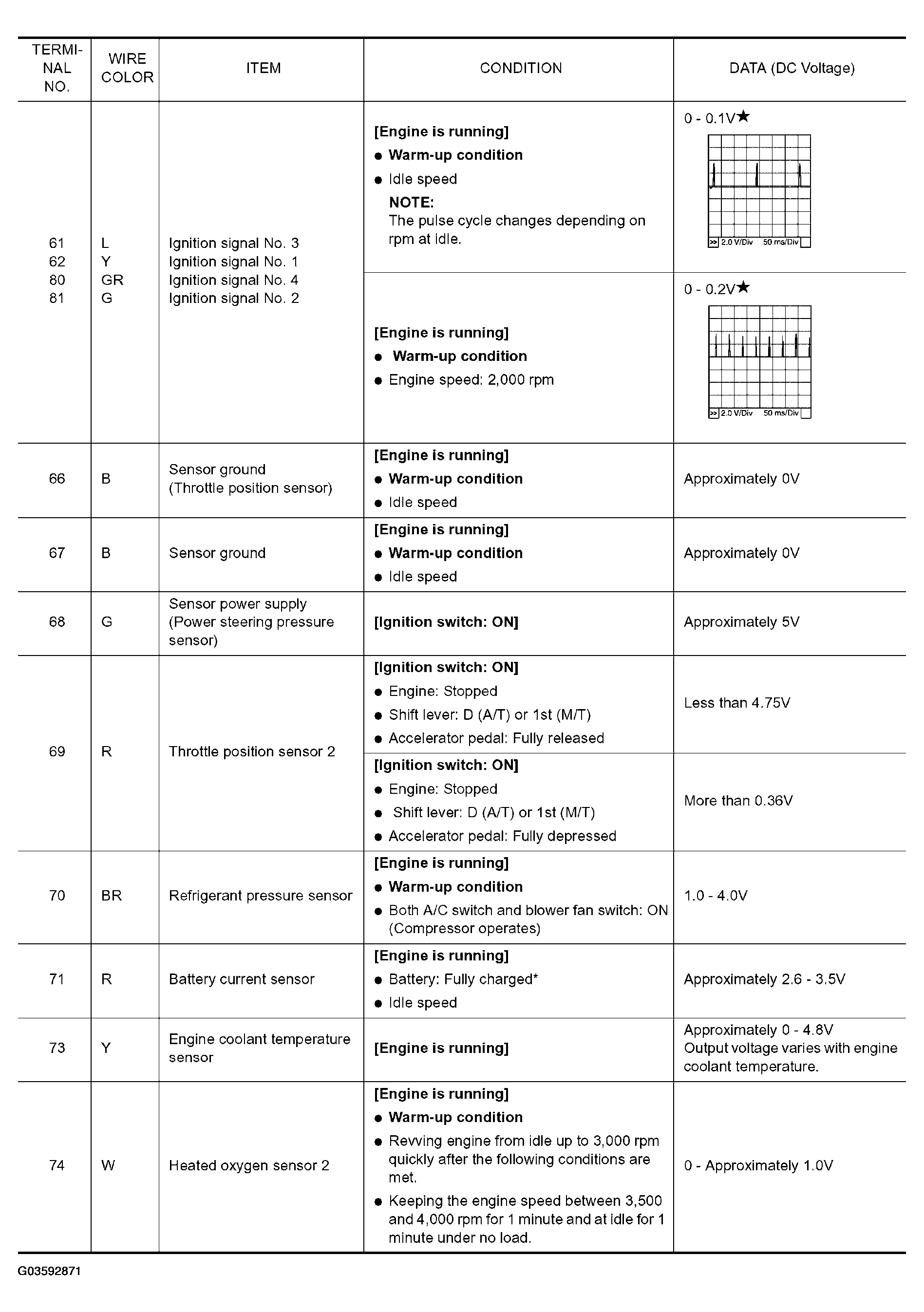

Fig 5: ECM Terminal And Ground Specification Data And Reference Value Chart (5 Of 7)

G03592871

Courtesy of NISSAN MOTOR CO., U.S.A.

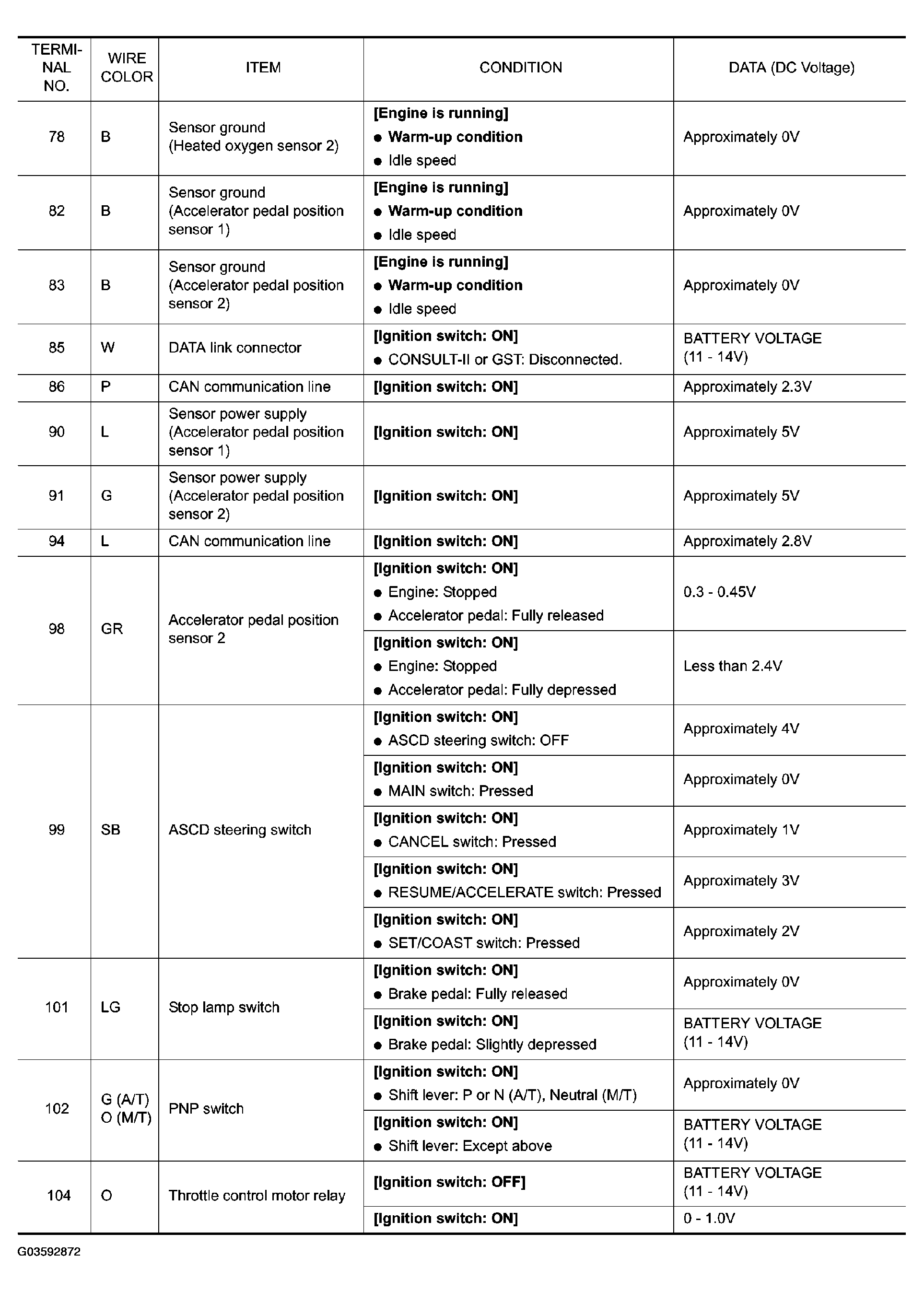

Fig 6: ECM Terminal And Ground Specification Data And Reference Value Chart (6 Of 7)

G03592872

Courtesy of NISSAN MOTOR CO., U.S.A.

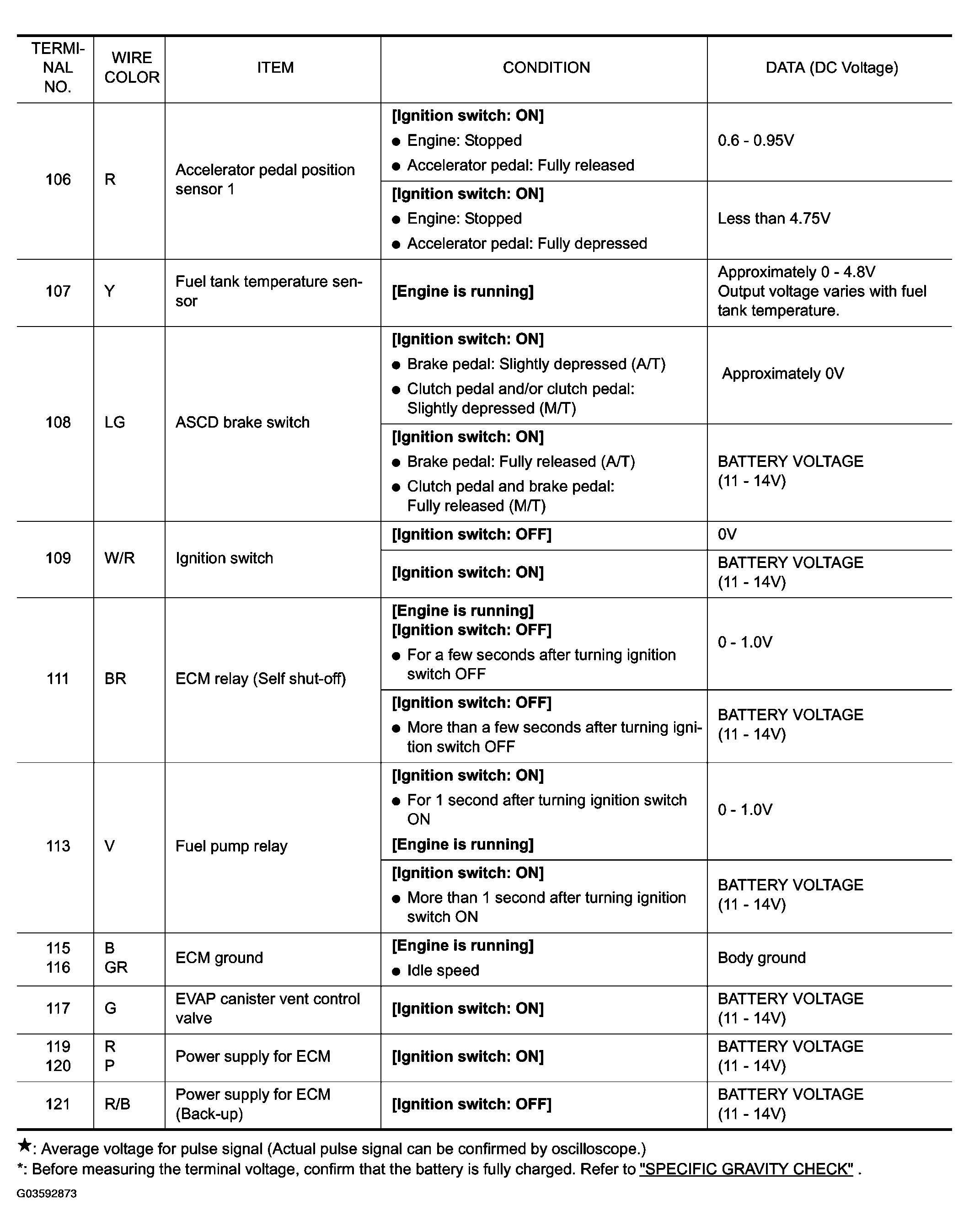

Fig 7: ECM Terminal And Ground Specification Data And Reference Value Chart (7 Of 7)

G03592873

Courtesy of NISSAN MOTOR CO., U.S.A.
