Home >> Nissan-Datsun >> 2005 >> Armada SE, RWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Shift Control System >> Control Device Removal and Installation >> Notes

Control Device Removal and Installation: Notes

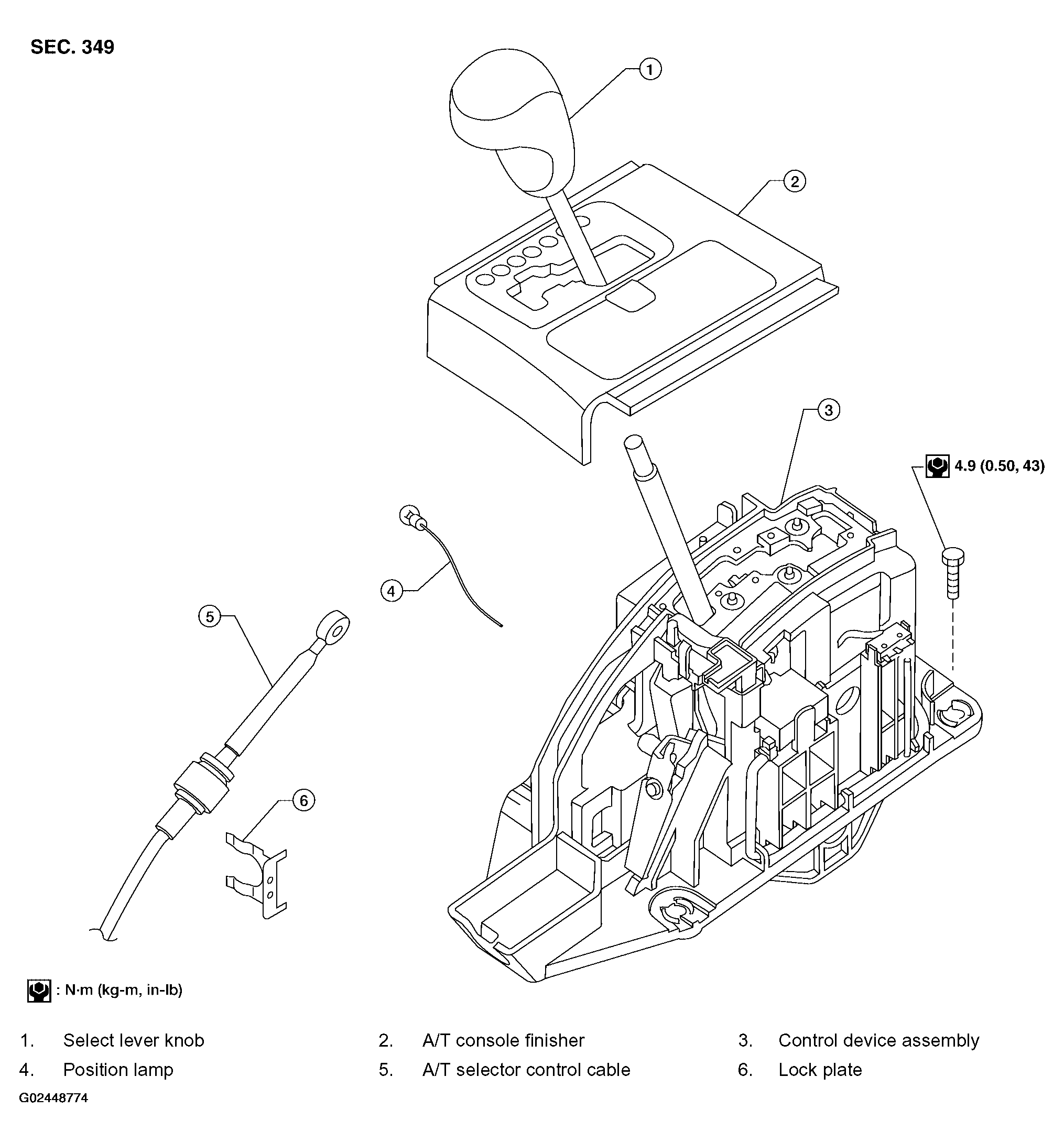

Fig 1: Removing & Installing Shift Control System - Control Device

G02448774

Courtesy of NISSAN MOTOR CO., U.S.A.
