Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

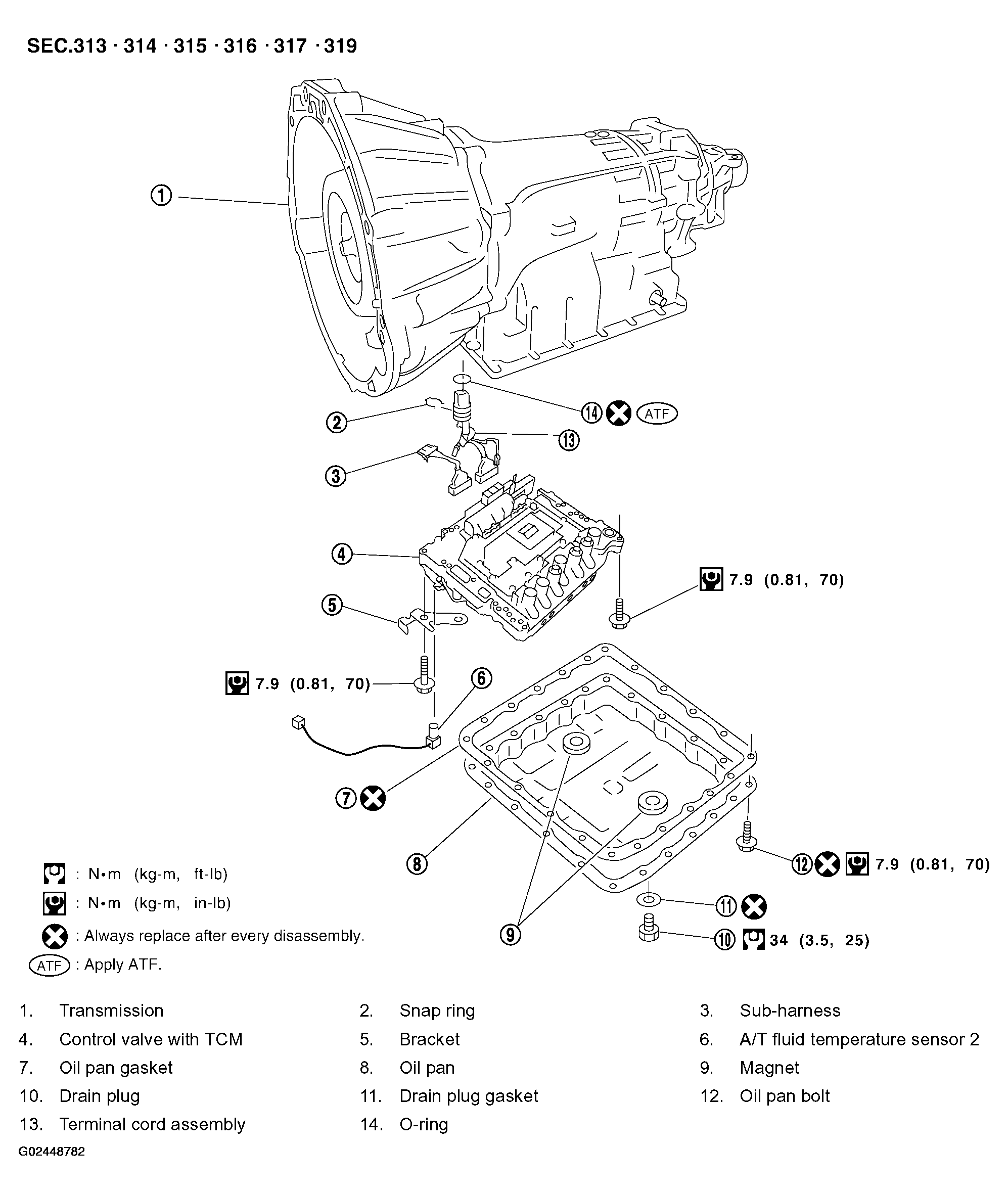

Fig 1: Control Valve With TCM & A/T Fluid Temperature Sensor 2 Components

G02448782

Courtesy of NISSAN MOTOR CO., U.S.A.
